Icom VE-PG4 Operating Manual page 169

7
CONNECTION PORT SETTINgS

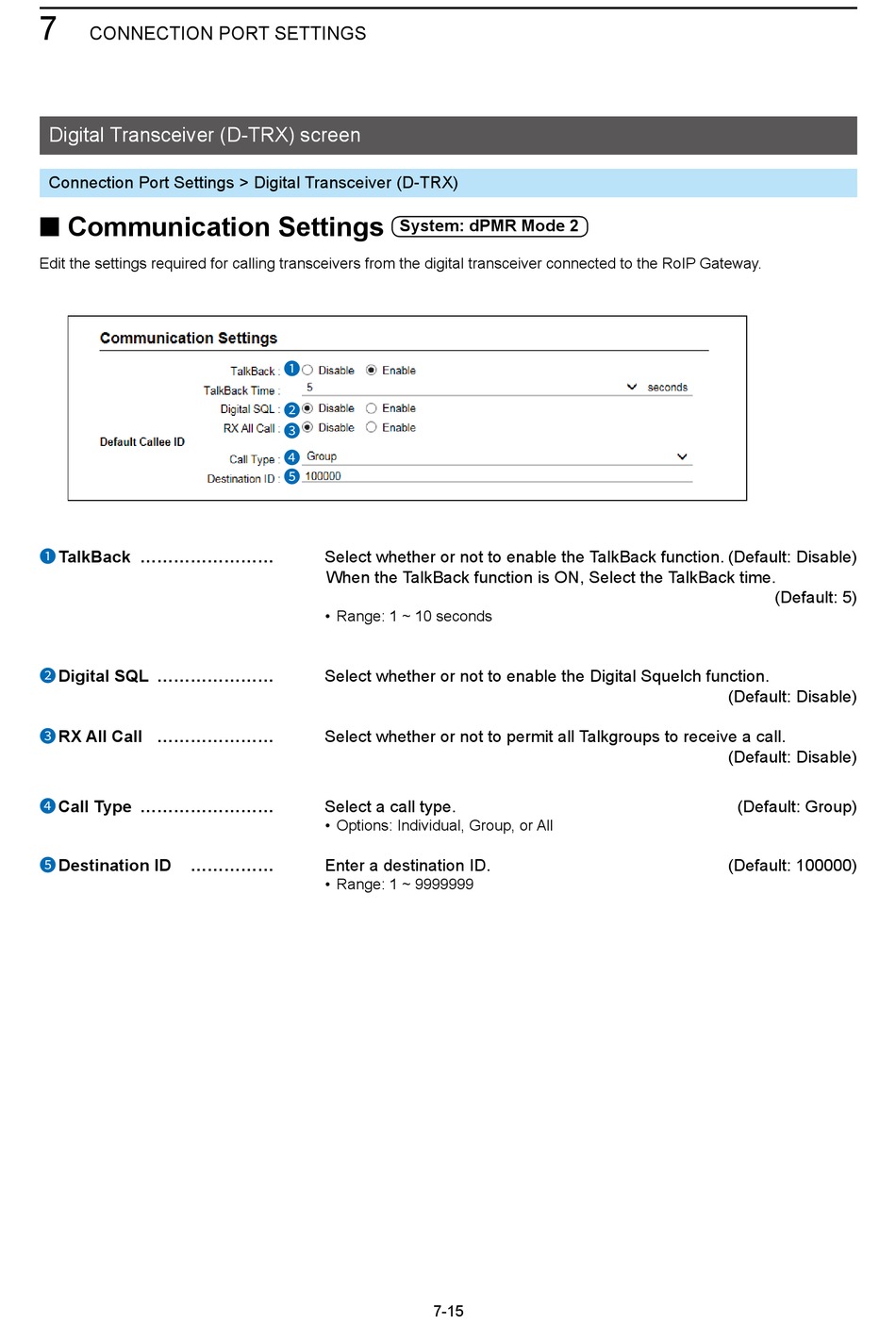

Digital Transceiver (D-TRX) screen
Connection Port Settings > Digital Transceiver (D-TRX)
■ Communication Settings
Edit the settings required for calling transceivers from the digital transceiver connected to the RoIP gateway.
TalkBack
1
Digital SQL
2
RX All Call
3
Call Type
4
Destination ID
5
System: dPMR Mode 2
1
2
3
4
5
Select whether or not to enable the TalkBack function. (Default: Disable)
When the TalkBack function is ON, Select the TalkBack time.
• Range: 1 ~ 10 seconds
Select whether or not to enable the Digital Squelch function.
Select whether or not to permit all Talkgroups to receive a call.
Select a call type.
• Options: Individual, group, or All
Enter a destination ID.
• Range: 1 ~ 9999999
7-15
(Default: 5)
(Default: Disable)
(Default: Disable)
(Default: group)
(Default: 100000)
