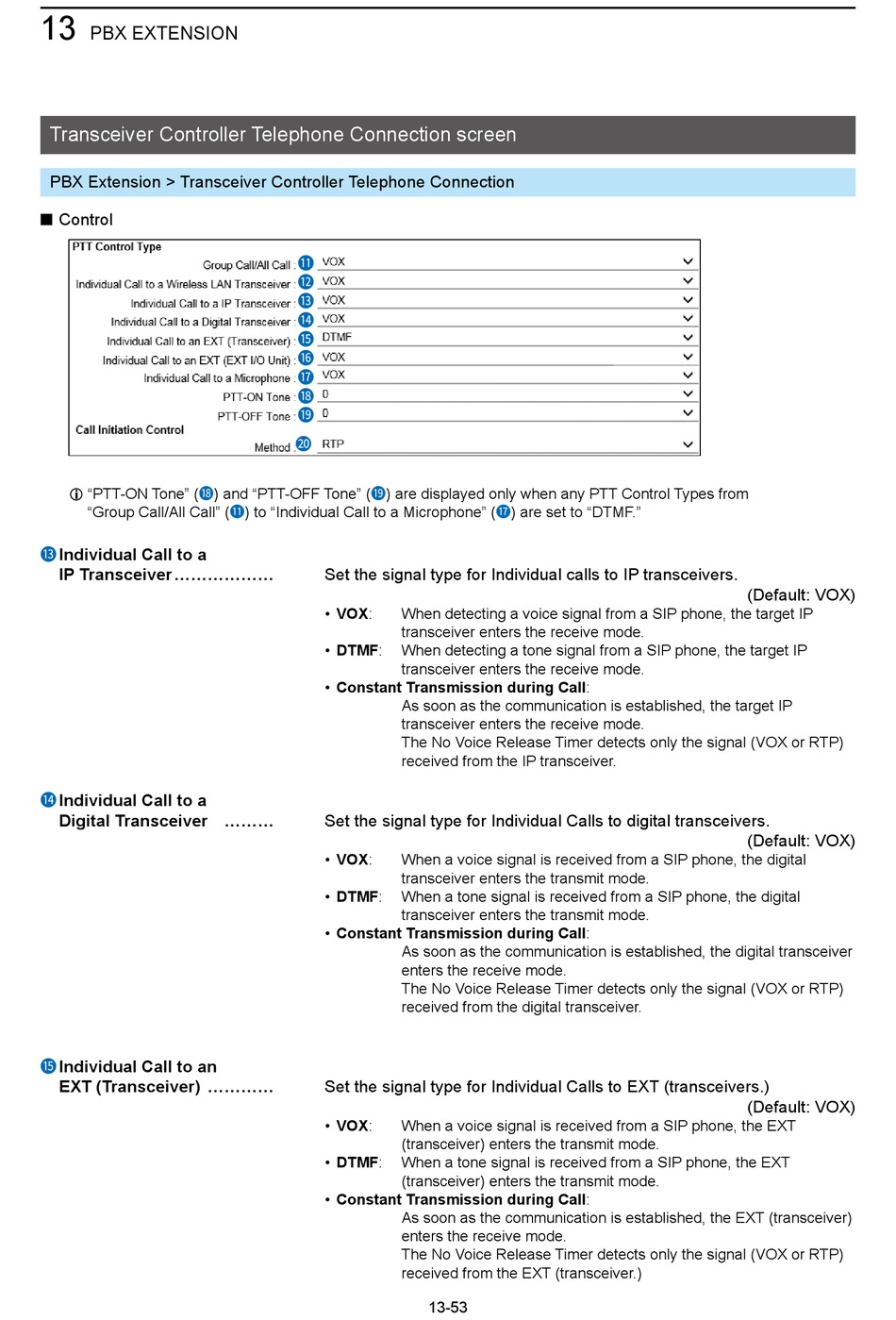

PBX EXTEnSIon
Transceiver Controller Telephone Connection screen
PBX Extension > Transceiver Controller Telephone Connection
■ Control
L "PTT-on Tone" (18) and "PTT-oFF Tone" (19) are displayed only when any PTT Control Types from
"Group Call/All Call" (11) to "Individual Call to a Microphone" (17) are set to "DTMF."
Individual Call to a
13
IP Transceiver ������
Individual Call to a
14
Digital Transceiver ���
Individual Call to an
15
EXT (Transceiver) ����
11
12
13
14
15
16
17
18
19
20
Set the signal type for Individual calls to IP transceivers.
• VOX:
When detecting a voice signal from a SIP phone, the target IP
transceiver enters the receive mode.
• DTMF:
When detecting a tone signal from a SIP phone, the target IP
transceiver enters the receive mode.
• Constant Transmission during Call:
As soon as the communication is established, the target IP
transceiver enters the receive mode.
The no Voice Release Timer detects only the signal (VoX or RTP)
received from the IP transceiver.
Set the signal type for Individual Calls to digital transceivers.
• VOX:
When a voice signal is received from a SIP phone, the digital
transceiver enters the transmit mode.
• DTMF:
When a tone signal is received from a SIP phone, the digital
transceiver enters the transmit mode.
• Constant Transmission during Call:
As soon as the communication is established, the digital transceiver
enters the receive mode.
The no Voice Release Timer detects only the signal (VoX or RTP)
received from the digital transceiver.
Set the signal type for Individual Calls to EXT (transceivers.)
• VOX:
When a voice signal is received from a SIP phone, the EXT
(transceiver) enters the transmit mode.
• DTMF:
When a tone signal is received from a SIP phone, the EXT
(transceiver) enters the transmit mode.
• Constant Transmission during Call:
As soon as the communication is established, the EXT (transceiver)
enters the receive mode.
The no Voice Release Timer detects only the signal (VoX or RTP)
received from the EXT (transceiver.)
13-53
(Default: VoX)
(Default: VoX)
(Default: VoX)
