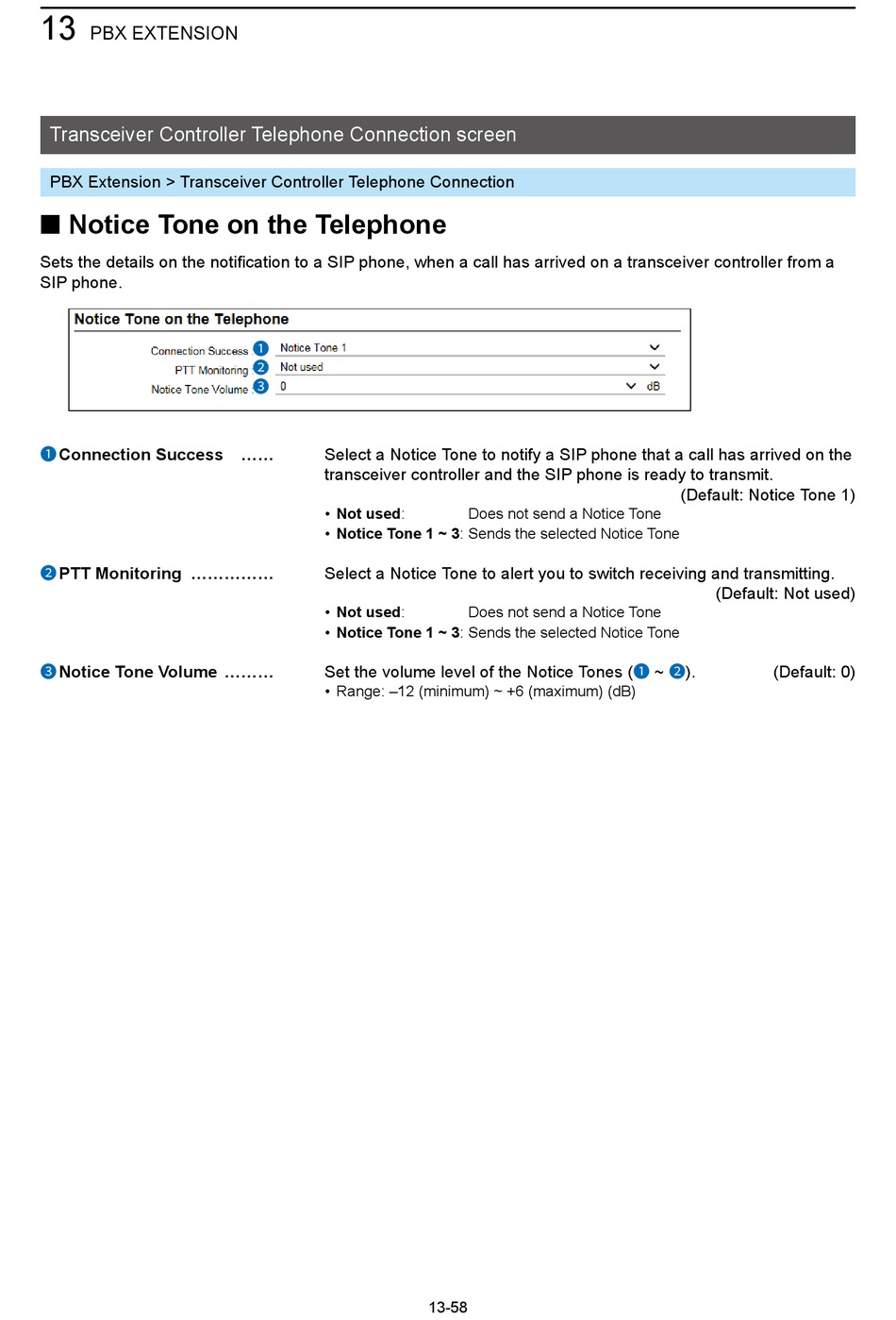

Icom VE-PG4 Operating Manual page 351

13
PBX EXTEnSIon
Transceiver Controller Telephone Connection screen
PBX Extension > Transceiver Controller Telephone Connection
■ Notice Tone on the Telephone
Sets the details on the notification to a SIP phone, when a call has arrived on a transceiver controller from a
SIP phone.
Connection Success ��
1
PTT Monitoring �����
2
Notice Tone Volume ���
3
1
2
3
Select a notice Tone to notify a SIP phone that a call has arrived on the
transceiver controller and the SIP phone is ready to transmit.
• Not used:
• Notice Tone 1 ~ 3: Sends the selected notice Tone
Select a notice Tone to alert you to switch receiving and transmitting.
• Not used:
• Notice Tone 1 ~ 3: Sends the selected notice Tone
Set the volume level of the notice Tones
• Range: –12 (minimum) ~ +6 (maximum) (dB)
Does not send a notice Tone
Does not send a notice Tone
13-58
(Default: notice Tone 1)
(Default: not used)
(1 ~ 2). (Default: 0)
