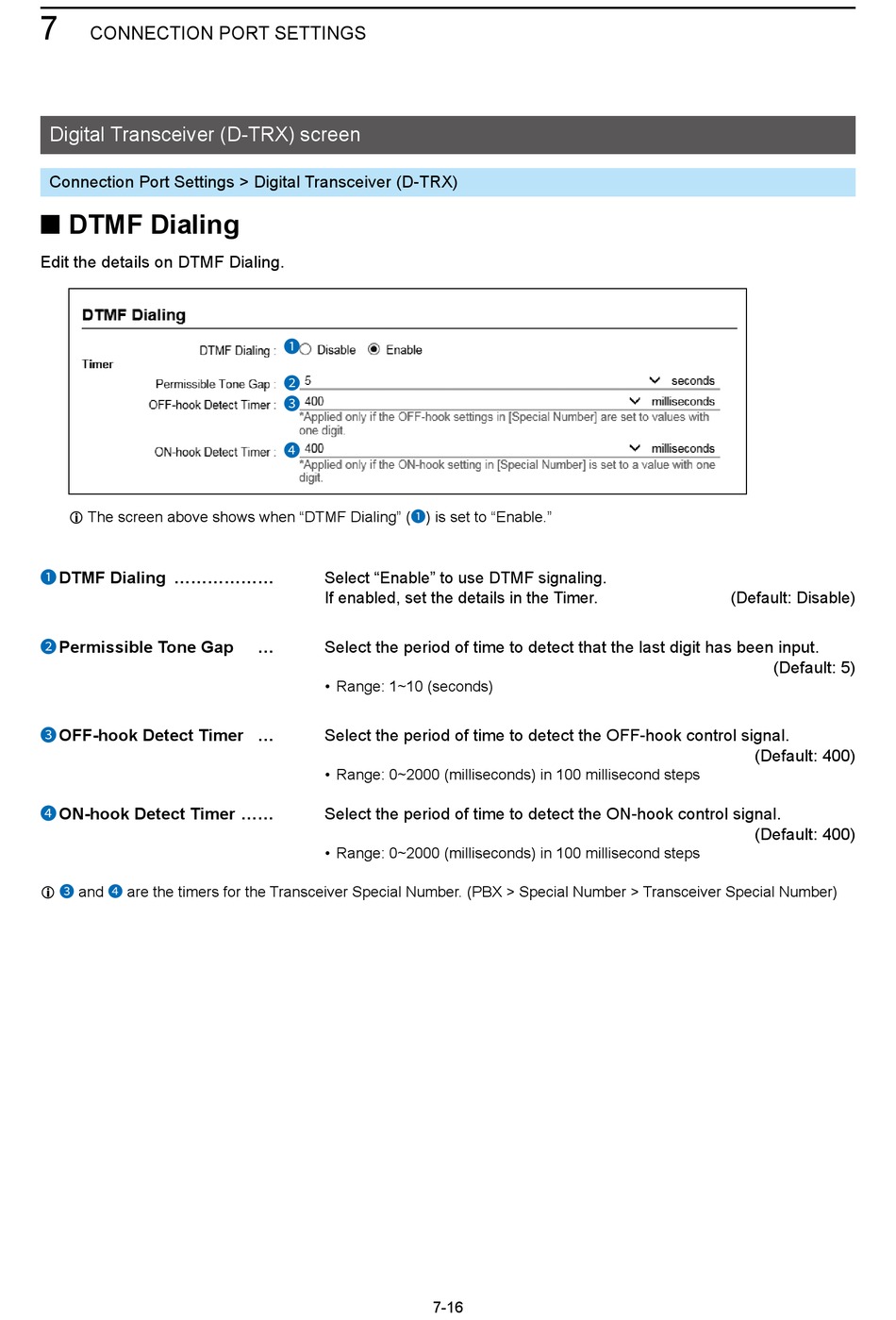

Icom VE-PG4 Operating Manual page 170

7
CONNECTION PORT SETTINgS
Digital Transceiver (D-TRX) screen
Connection Port Settings > Digital Transceiver (D-TRX)
■ DTMF Dialing
Edit the details on DTMF Dialing.
L The screen above shows when "DTMF Dialing" (1) is set to "Enable."
DTMF Dialing
1
Permissible Tone Gap
2
OFF-hook Detect Timer
3
ON-hook Detect Timer
4
and are the timers for the Transceiver Special Number. (PBX > Special Number > Transceiver Special Number)
3 4
L
1
2
3
4
Select "Enable" to use DTMF signaling.
If enabled, set the details in the Timer.
Select the period of time to detect that the last digit has been input.
• Range: 1~10 (seconds)
Select the period of time to detect the OFF-hook control signal.
• Range: 0~2000 (milliseconds) in 100 millisecond steps
Select the period of time to detect the ON-hook control signal.
• Range: 0~2000 (milliseconds) in 100 millisecond steps
7-16
(Default: Disable)
(Default: 5)
(Default: 400)
(Default: 400)
