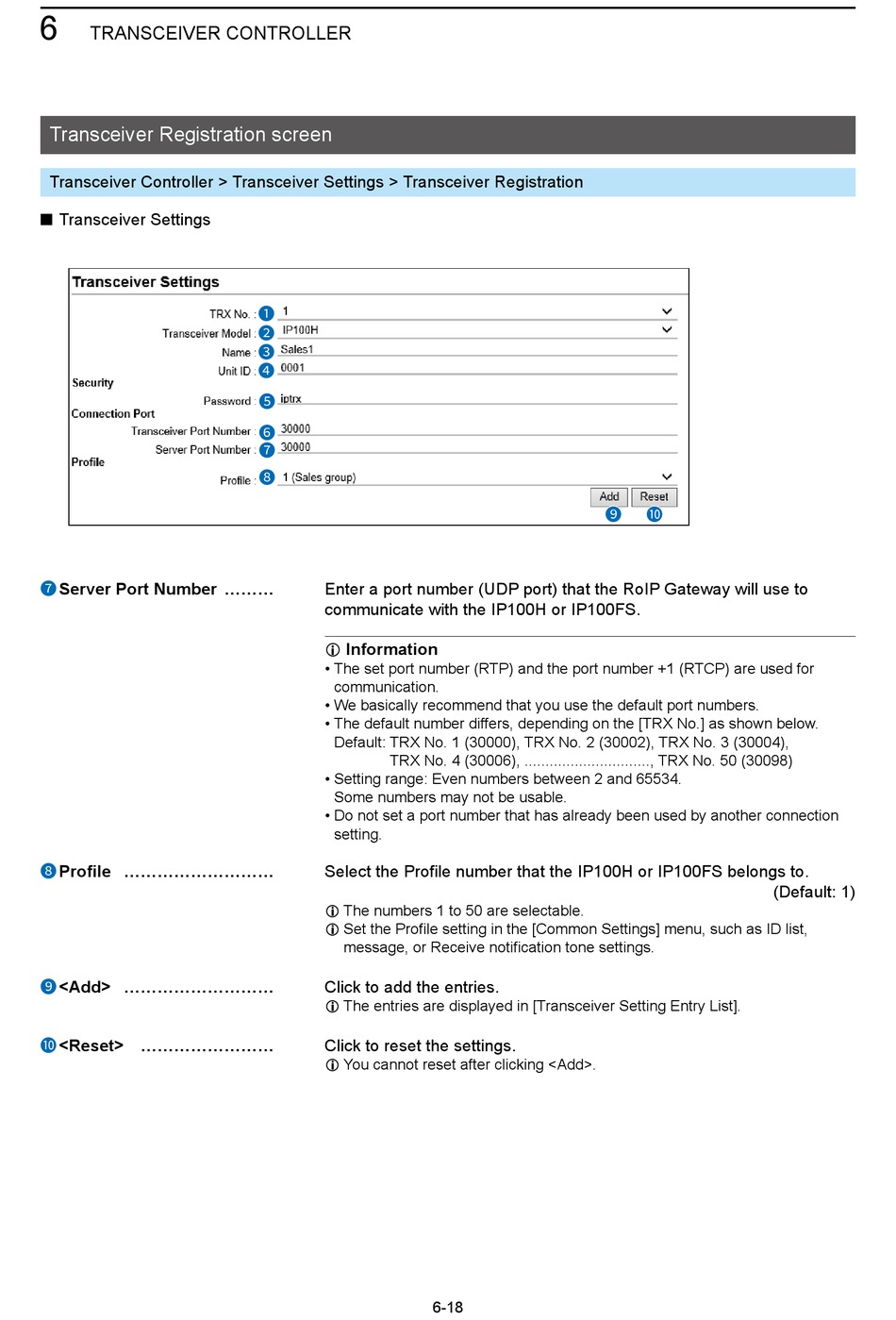

Icom VE-PG4 Operating Manual page 89

6
TRANSCEIvER CoNTRoLLER
Transceiver Registration screen
Transceiver Controller > Transceiver Settings > Transceiver Registration
■ Transceiver Settings
Server Port Number ���
7
Profile ���������
8
<Add> ���������
9
<Reset> ��������
10
1
2
3
4
5
6
7
8
Enter a port number (UDP port) that the RoIP Gateway will use to
communicate with the IP100H or IP100FS.
Information
L
• The set port number (RTP) and the port number +1 (RTCP) are used for
communication.
• We basically recommend that you use the default port numbers.
• The default number differs, depending on the [TRX No.] as shown below.
Default: TRX No. 1 (30000), TRX No. 2 (30002), TRX No. 3 (30004),
TRX No. 4 (30006), .............................., TRX No. 50 (30098)
• Setting range: Even numbers between 2 and 65534.
Some numbers may not be usable.
• Do not set a port number that has already been used by another connection
setting.
Select the Profile number that the IP100H or IP100FS belongs to.
L The numbers 1 to 50 are selectable.
L Set the Profile setting in the [Common Settings] menu, such as ID list,
message, or Receive notification tone settings.
Click to add the entries.
L The entries are displayed in [Transceiver Setting Entry List].
Click to reset the settings.
L You cannot reset after clicking <Add>.
6-18
9 10
(Default: 1)
