Icom VE-PG4 Operating Manual page 360

13
PBX EXTEnSIon

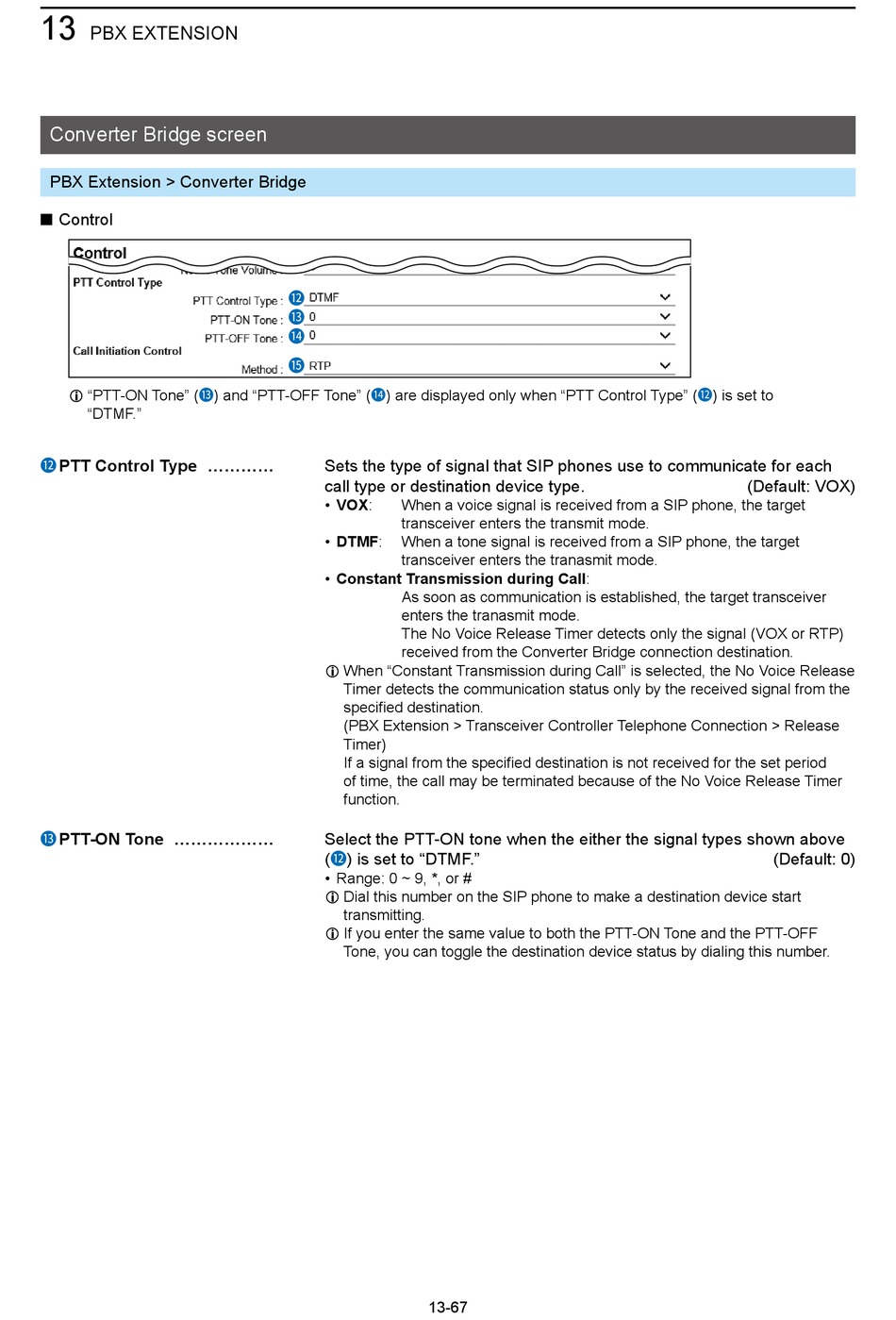

Converter Bridge screen
PBX Extension > Converter Bridge
■ Control
L "PTT-on Tone" (13) and "PTT-oFF Tone" (14) are displayed only when "PTT Control Type" (12) is set to
"DTMF."
PTT Control Type ����
12
PTT-ON Tone ������
13
12
13
14
15
Sets the type of signal that SIP phones use to communicate for each
call type or destination device type.
• VOX: When a voice signal is received from a SIP phone, the target
transceiver enters the transmit mode.
• DTMF: When a tone signal is received from a SIP phone, the target
transceiver enters the tranasmit mode.
• Constant Transmission during Call:
As soon as communication is established, the target transceiver
enters the tranasmit mode.
The no Voice Release Timer detects only the signal (VoX or RTP)
received from the Converter Bridge connection destination.
L When "Constant Transmission during Call" is selected, the no Voice Release
Timer detects the communication status only by the received signal from the
specified destination.
(PBX Extension > Transceiver Controller Telephone Connection > Release
Timer)
If a signal from the specified destination is not received for the set period
of time, the call may be terminated because of the no Voice Release Timer
function.
Select the PTT-on tone when the either the signal types shown above
(12) is set to "DTMF."
• Range: 0 ~ 9, *, or #
L Dial this number on the SIP phone to make a destination device start
transmitting.
L If you enter the same value to both the PTT-on Tone and the PTT-oFF
Tone, you can toggle the destination device status by dialing this number.
13-67
(Default: VoX)
(Default: 0)
