Icom VE-PG3 Installation

INSTALLATION 1
RoIP GATEWAY
Continued from the separate leaflet "PREPARATION."

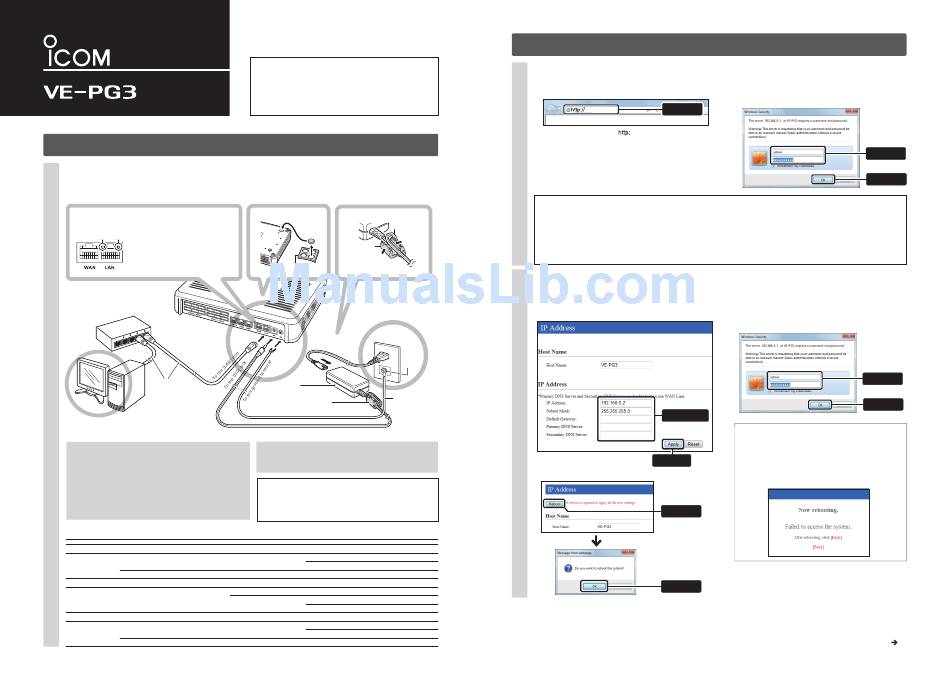

Step 3 Configure the network
1 Connect the devices to the VE-PG3 in order of q to y.
• Do not connect to the IP network before the confi guration is fi nished.
• A HUB which supports 100BASE-TX or better is recommended. Otherwise, an unexpected failure of communication may be caused.
• The VE-PG3 can be directly connected to the PC using a MDI-X (crossover) type Ethernet cable.
y
Verify that the LEDs light
When the [LAN] LEDs on the rear don't light, verify that the LAN
cable is securely connected.
w
q
LED indication:
q Lights: Full duplex
Doesn't light: Half duplex
w Lights: Connected to the network
Blinks: While the line is communicating
HUB
e
Connect the cables
LAN cable**
(Purchase separately)
t
Boot the PC
PC
(Example of the IP address;
192.168.0.100)
R
WARNING!
To prevent electrical shock, television interference (TVI),
broadcast interference (BCI) and other problems, ground the
VE-PG3 through the ground terminal.
For best results, connect a heavy gauge wire or strap to a ground
terminal of an AC outlet or a long ground rod. Make the distance
between the ground terminal and ground as short as possible.
NEVER connect the ground terminal to a gas or electric pipe.
This may result in an electrical shock or cause a fire.
Network and System default settings
Menu Item Setting Screen
Network IP Address
DHCP Server
Router WAN
Operating Mode Operating Mode
Port Settings Transceiver 1 (TRX1)/Transceiver 2 (TRX2) Transceiver Model
Management Administrator
Firmware Update
Read the "PRECAUTIONS" leafl et fi rst, if you have not done so.
Thank you for purchasing the VE-PG3. The VE-PG3 is a
network converter that allows you to connect Icom radios
or repeaters to a VoIP network.
This guide describes the basic settings to operate the VE-PG3.
READ ALL INSTRUCTIONS carefully and completely be-
fore using.
q
w
Attach the cushions Attach the ferrite EMI filter
Power cable
Ferrite EMI filter
(Supplied with
the VE-PG3)
Cushion Sheet Wrap the cable once around
(Supplied with the VE-PG3) the ferrite EMI filter.
r
Connect the power supply
The [PWR/MSG] LED on the front
panel lights*.
AC outlet
Ground
terminal
AC adaptor
(Supplied with the VE-PG3)
Ground wire
Ferrite EMI filter
(Purchase
(Supplied with the VE-PG3)
separately)
*The indication may differ, depending on the setting. **Category 5 or higher.
R
WARNING!
NEVER use other than the specified AC adapter. This may result
in an electrical shock, cause a fire or damage the VE-PG3.
Setting the PC IP address
Set the static PC IP address (example: 192.168.0.100).
See the PC's instruction manual for the setting details.
Set the static VE-PG3 IP address assigned by the network
administrator.
Setting Item Item Name Value
IP Address IP Address 192.168.0.1
Subnet Mask 255.255.255.0
DHCP Server DHCP Server Disable
Connection Type Connection Type No Connection
Operating Mode Operating Mode Bridge
EXT I/O Port Mode Connection Unit EXT I/O Unit
EXT I/O Port Mode Separate
Transceiver Model IC-F5060/F6060
Administrator Username admin (fi xed)
Current Password: admin (lower case)
Automatic Update Automatic Update Enable
Step 3 Configure the network (continued)
2 The following procedures (q to e) describe how to access the VE-PG3 setting screen using a web browser.
q Open your web browser, then enter the IP address of
the VE-PG3 into the address bar.
Enter
192.168.0.1/
*The default IP address is " //192.168.0.1/."
w Push the [ENTER] key.
• The Login Authentication screen will appear.
To prevent unauthorized access
You must be careful when choosing your password, and
change it occasionally.
See the VE-PG3 instruction manual for the password setting.
• Choose one that is not easy to guess.
• Use numbers, characters and letters (both lower and upper case).
3
Following the procedure below, set the VE-PG3 IP address according to your network environment.
• Do not set the IP address to one that is already used for another network device.
q Click the [Network] menu, and then click [IP Address].
w Enter the VE-PG3 IP address, and then click <Apply>.
q Configure
w Click
e Click <Reboot> to reboot the VE-PG3.
q Click
w Click
e Enter "admin" (fixed username) and "admin" (default
password) in their respective input fields on the Login
Authentication screen, and then click [OK].
q Enter
w Click
About web browsers
Only Microsoft Internet Explorer 9 or later must be used
with the VE-PG3.
Activate the JavaScript and set to allow Cookies on your
web browser to correctly display the setting screen.
If other browsers are used, the screen may not be correctly
displayed.
r After rebooting, enter "admin" (fixed username) and
"admin" (default password) in their respective input
fields on the Login Authentication screen, and then
click [OK].
q Enter
w Click
About the IP address
If the network part of the PC IP address is different from
that of the VE-PG3, you cannot access the VE-PG3
setting screen.
If the following message is displayed on the screen after
the rebooting, change the PC IP address according to
your network environment, and then click [Back].
(Continued on the back side.)
