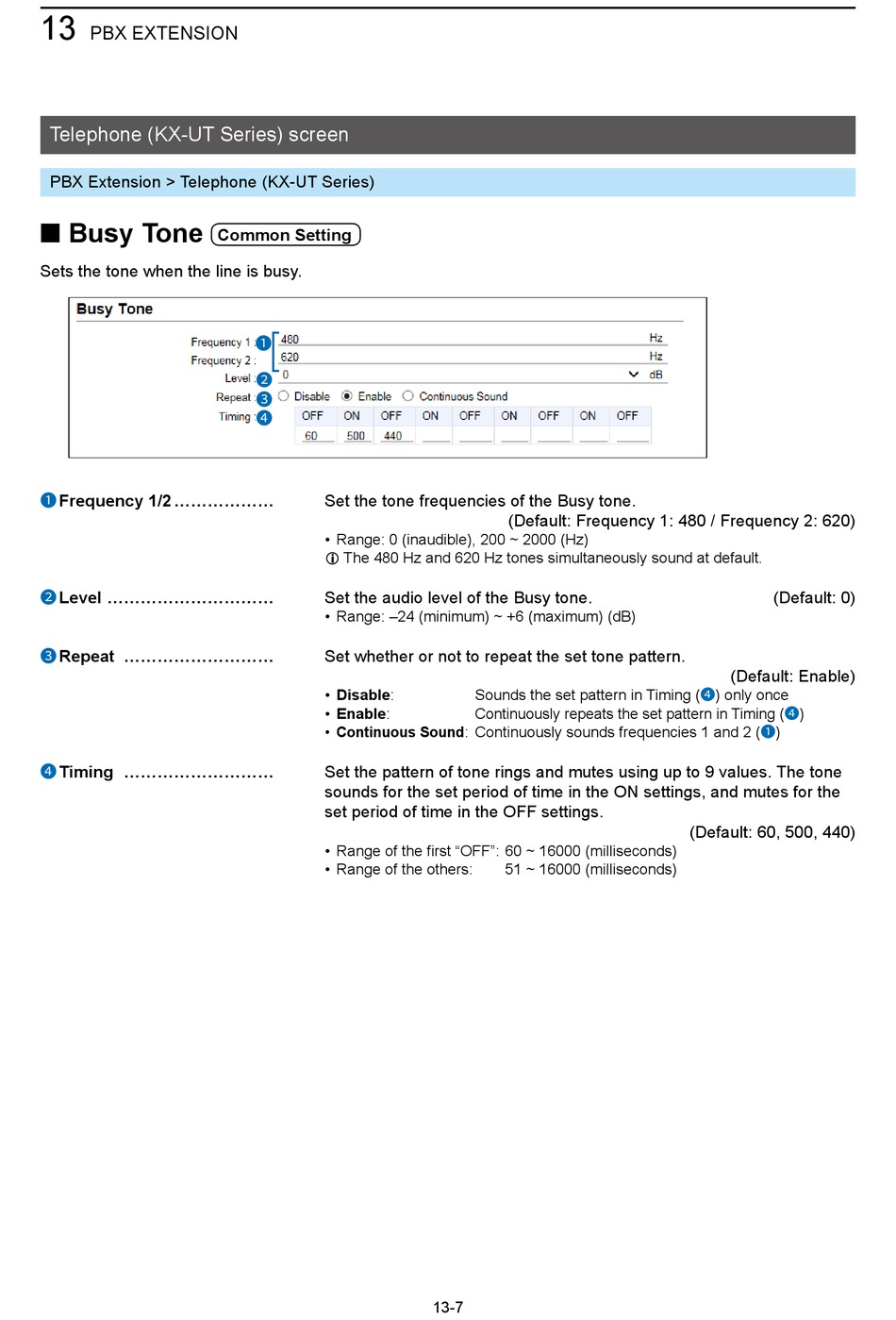

Icom VE-PG4 Operating Manual page 300

13
PBX EXTEnSIon
Telephone (KX-UT Series) screen
PBX Extension > Telephone (KX-UT Series)
■ Busy Tone
Sets the tone when the line is busy.
Frequency 1/2 ������
1
Level ����������
2
Repeat ���������
3
Timing ���������
4
Common Setting
1
2
3
4
Set the tone frequencies of the Busy tone.
• Range: 0 (inaudible), 200 ~ 2000 (Hz)
L The 480 Hz and 620 Hz tones simultaneously sound at default.
Set the audio level of the Busy tone.
• Range: –24 (minimum) ~ +6 (maximum) (dB)
Set whether or not to repeat the set tone pattern.
• Disable:
• Enable:
• Continuous Sound: Continuously sounds frequencies 1 and 2 (1)
Set the pattern of tone rings and mutes using up to 9 values. The tone
sounds for the set period of time in the on settings, and mutes for the
set period of time in the oFF settings.
• Range of the first "OFF": 60 ~ 16000 (milliseconds)
• Range of the others:
(Default: Frequency 1: 480 / Frequency 2: 620)
Sounds the set pattern in Timing (4) only once
Continuously repeats the set pattern in Timing (4)
51 ~ 16000 (milliseconds)
13-7
(Default: 0)
(Default: Enable)
(Default: 60, 500, 440)
