NETwoRk SETTINgS

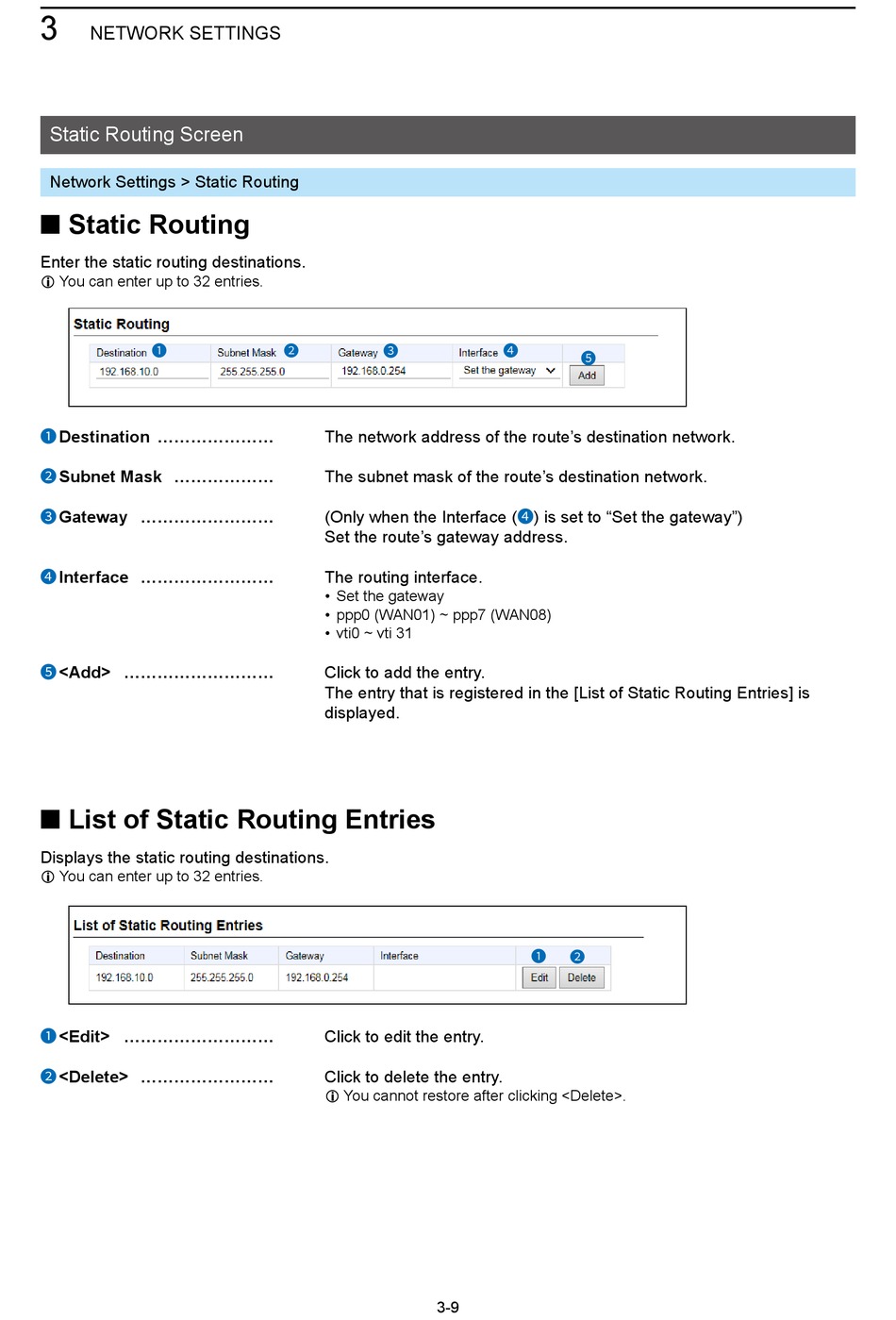

Static Routing Screen
Network Settings > Static Routing
■ Static Routing
Enter the static routing destinations.
L You can enter up to 32 entries.
1
Destination �������
1
Subnet Mask ������
2
Gateway ��������
3
Interface ��������
4
<Add> ���������
5
■ List of Static Routing Entries
Displays the static routing destinations.
L You can enter up to 32 entries.
<Edit> ���������
1
<Delete> ��������
2
2 3
The network address of the route's destination network.
The subnet mask of the route's destination network.
(only when the Interface (4) is set to "Set the gateway")
Set the route's gateway address.
The routing interface.
• Set the gateway
• ppp0 (wAN01) ~ ppp7 (wAN08)
• vti0 ~ vti 31
Click to add the entry.
The entry that is registered in the [List of Static Routing Entries] is
displayed.
Click to edit the entry.
Click to delete the entry.
L You cannot restore after clicking <Delete>.
3-9
4
5
1 2
