15
MANAGEMENT

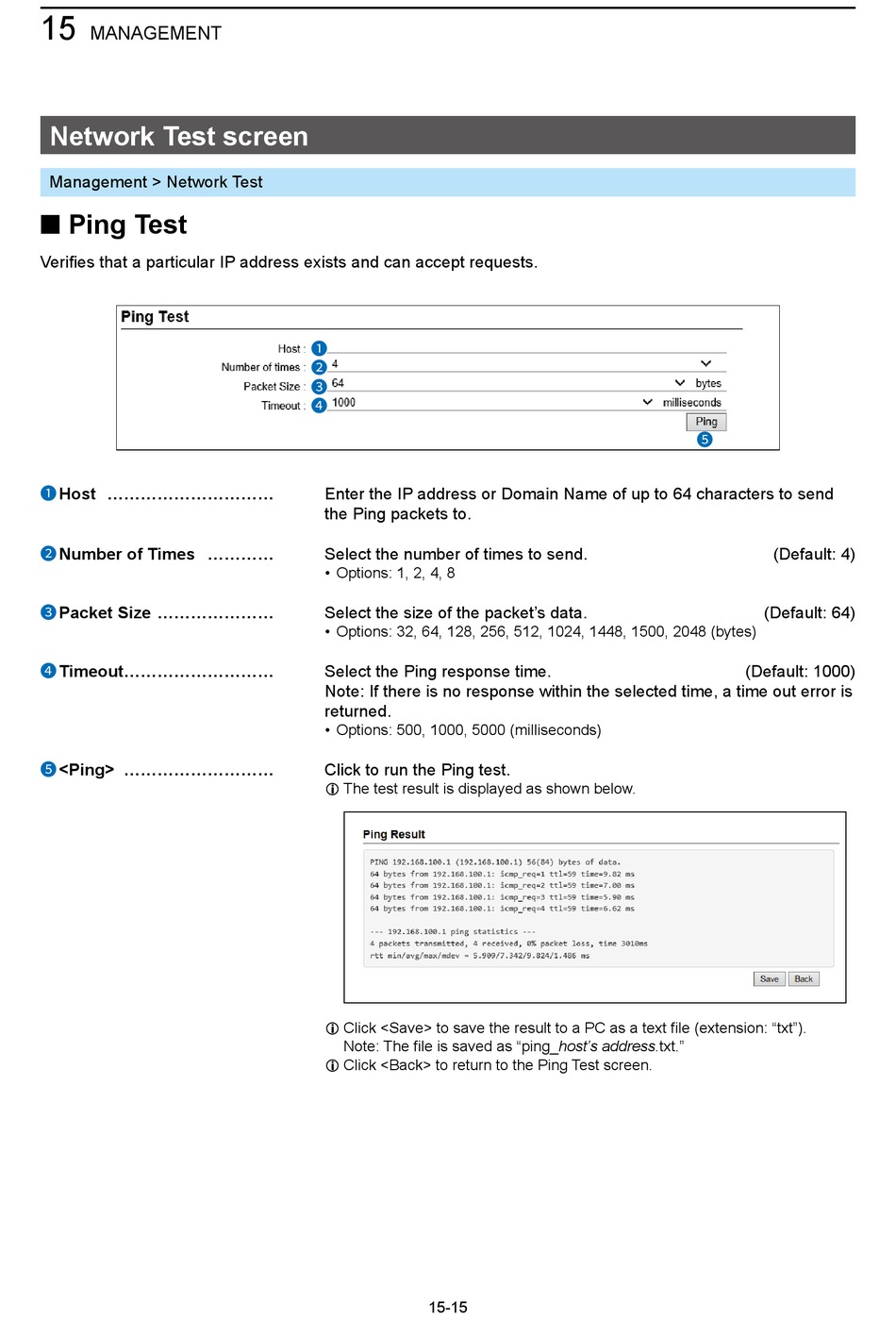

Network Test screen

Management > Network Test
■ Ping Test
Verifi es that a particular IP address exists and can accept requests.
Host ����������
1
Number of Times ����
2
Packet Size �������
3
Timeout���������
4
<Ping> ���������
5
1
2
3
4
Enter the IP address or Domain Name of up to 64 characters to send
the Ping packets to.
Select the number of times to send.
• Options: 1, 2, 4, 8
Select the size of the packet's data.
• Options: 32, 64, 128, 256, 512, 1024, 1448, 1500, 2048 (bytes)
Select the Ping response time.
Note: If there is no response within the selected time, a time out error is
returned.
• Options: 500, 1000, 5000 (milliseconds)
Click to run the Ping test.
L The test result is displayed as shown below.
L Click <Save> to save the result to a PC as a text fi le (extension: "txt").
Note: The fi le is saved as "ping_host's address.txt."
L Click <Back> to return to the Ping Test screen.
15-15
5
(Default: 4)
(Default: 64)
(Default: 1000)
