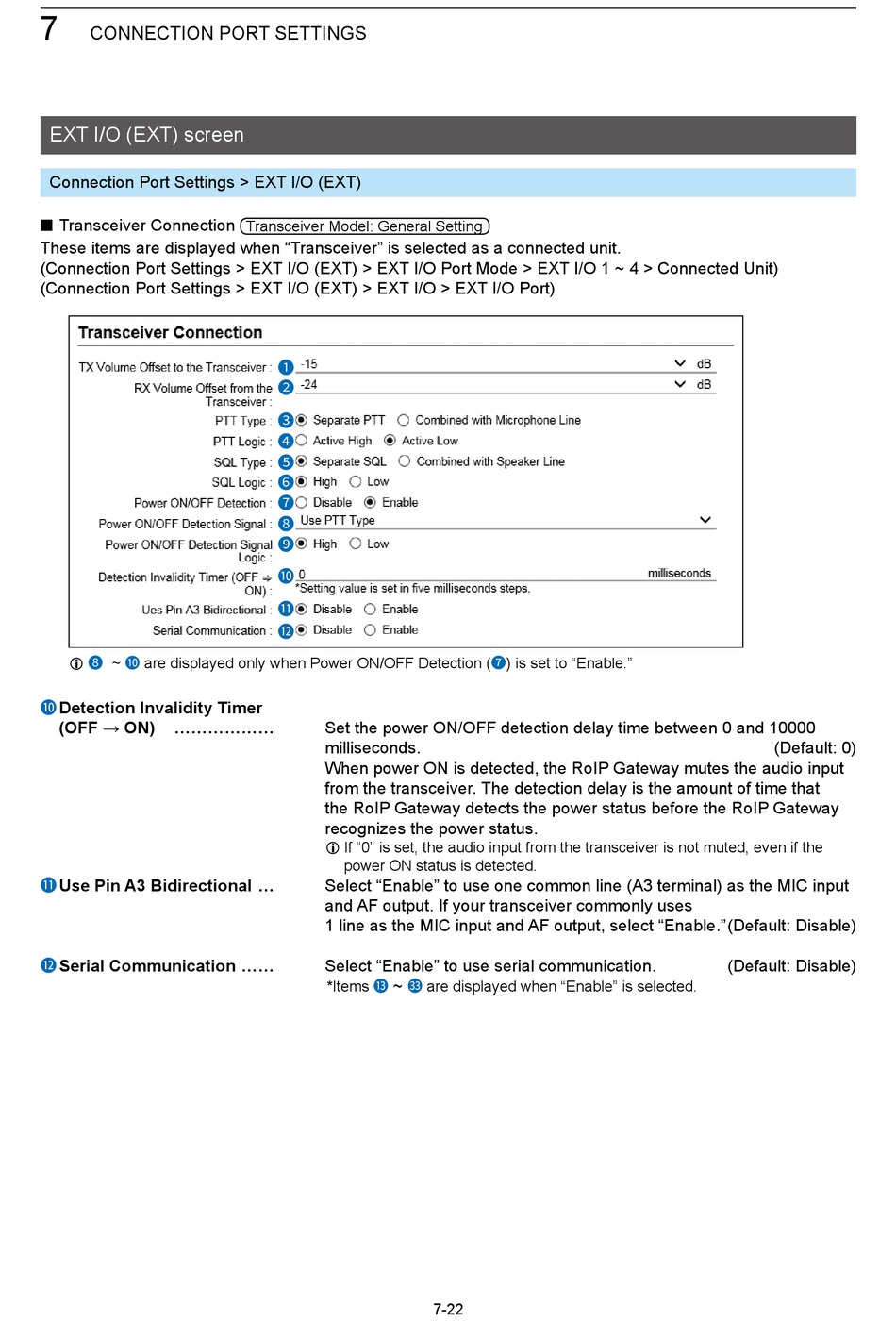

Icom VE-PG4 Operating Manual page 176

7
CONNECTION PORT SETTINgS
EXT I/O (EXT) screen
Connection Port Settings > EXT I/O (EXT)
■ Transceiver Connection
These items are displayed when "Transceiver" is selected as a connected unit.
(Connection Port Settings > EXT I/O (EXT) > EXT I/O Port Mode > EXT I/O 1 ~ 4 > Connected Unit)
(Connection Port Settings > EXT I/O (EXT) > EXT I/O > EXT I/O Port)
are displayed only when Power ON/OFF Detection (7) is set to "Enable."
L 8 ~ 10
Detection Invalidity Timer
10
(OFF → ON)
Use Pin A3 Bidirectional
11
Serial Communication
12
Transceiver Model: general Setting
1
2
3
4
5
6
7
8
9
10
11
12
Set the power ON/OFF detection delay time between 0 and 10000
milliseconds.
When power ON is detected, the RoIP gateway mutes the audio input
from the transceiver. The detection delay is the amount of time that
the RoIP gateway detects the power status before the RoIP gateway
recognizes the power status.
L If "0" is set, the audio input from the transceiver is not muted, even if the
power ON status is detected.
Select "Enable" to use one common line (A3 terminal) as the MIC input
and AF output. If your transceiver commonly uses
1 line as the MIC input and AF output, select "Enable." (Default: Disable)
Select "Enable" to use serial communication.
~
* Items
13 33
are displayed when "Enable" is selected.
7-22
(Default: 0)
(Default: Disable)
