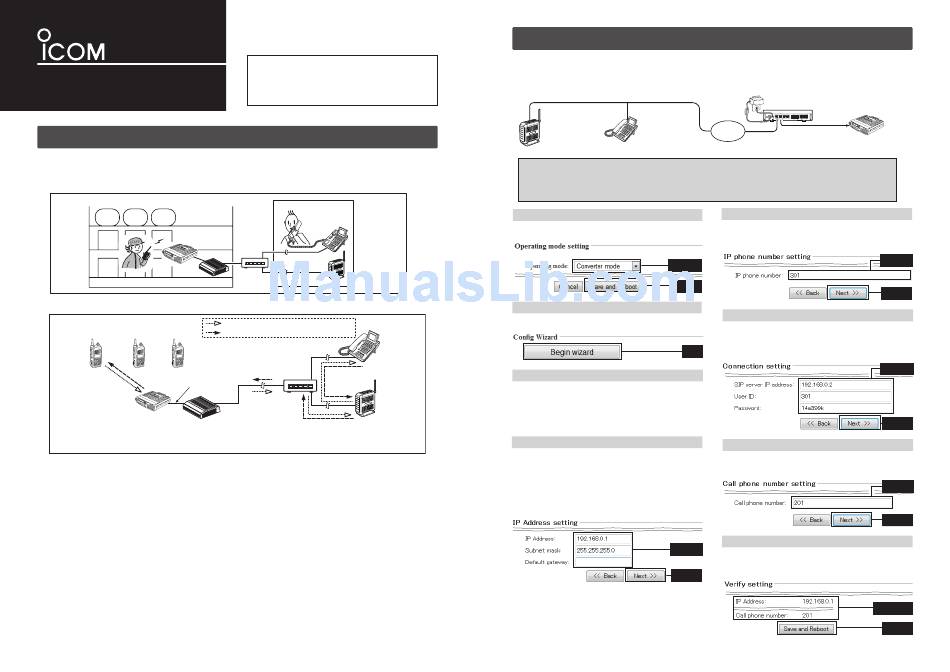

Icom VE-PG2 Manual

Converter mode guide
RoIP GATEWAY
VE-PG2
' About Converter mode
If you communicate between the IP telephone and the transceiver, set the VE-PG2 to the Converter mode.
When you use the VE-PG2 in the Converter mode, an IP router (a third party product, either a SIP server or an IP-PBX) is
required.
Set the extension numbers of the VE-PG2's [TRX1], [TRX2] and [TRX3] into the IP router.
In the shop
Figure 1: Converter mode example
Icom transceiver
Transceiver 1 Transceiver 2 Transceiver 3
Channel: CH2
OPC-2073
Transceiver A
[LAN]
Channel: CH2
[TRX1]
If the channel for transceiver 2
Extension number: 301
and transceiver 3 is set to CH2,
the transceivers can communicate
with the IP telephone.
Figure 2: Example of the Converter mode operation
Example of the Converter mode operation: Calling the IP telephone from transceiver 1.
q Set transceiver 1's channel to CH2, hold down [PTT], and speak into the microphone at your normal voice level.
• If you set transceiver 2 and transceiver 3's channel to CH2, transceiver 1 can also be heard on transceiver 2 and transceiver 3.
w When transceiver A receives a call from transceiver 1, it sends the voice signal to the VE-PG2.
The VE-PG2 converts the voice signal to an RoIP signal, then transmits it from the [LAN] port to the IP router through the
IP network, and the IP telephone rings.
e The person called takes the IP telephone off the hook, and speaks into the telephone at their normal voice level. Their
voice signal is sent to the IP router and the VE-PG2.
The VE-PG2 converts the RoIP signal to the voice signal, then transceiver A receives it and transmits it on channel 2.
Transceiver 1 receives the signal from transceiver A.
r When the IP telephone handset is put on the hook, or no audio is received from transceiver 1 or the IP telephone for 15
seconds, the communication will be disconnected.
[NOTE] If calling transceiver 1 from the IP telephone, dial extension number "301", then speak into the telephone at your
normal voice level.
This guide describes the Converter mode, and includes a
connection example.
When you use only the [TRX1] port, you can easily setup
the VE-PG2 using the easy configuration wizard.
Read "PRECAUTIONS" first, if you have not read it.
HUB
1 2 3 4 5
In the office
Transmission from transceiver 1 to the IP telephone.
Transmission from the IP telephone to transceiver 1.
IP telephone
HUB
1 2 3 4 5
VE-PG2
192.168.0.2
IP router
192.168.0.3
'
Set the VE-PG2 to the Converter mode using the easy configuration wizard
This explanation describes how you set the VE-PG2 to the Converter mode using the easy configuration wizard, with a
connection example, shown below.
NOTE: Connect the transceiver to only the VE-PG2's [TRX1] port.
IP router IP telephone
192.168.0.2 Extension number: 201
Figure 3: Converter mode connection example
CAUTION:
To connect the transceivers or repeaters, use only the following cables: OPC-2073 for the transceivers and
OPC-2074 for the repeaters.
Using another cable, like an Ethernet cable, may damage the VE-PG2, transceivers or repeaters.
1. "Operating mode setting" setting
Set the VE-PG2's "Operating mode" to "Converter mode" in
"Operating mode setting," then click "Save and Reboot."
q Select
w Click
2. Start the configuration wizard
When you click "Begin wizard," the VE-PG2 starts the
setting wizard.
Click
3. Set the IP router's telephone book
Set the extension numbers, and other settings of the IP
telephone and the VE-PG2's [TRX1] port to the IP router's
telephone book, as follows:
• IP telephone : 201
• VE-PG2's [TRX1] port : 301
4. "IP Address setting" setting
When "Start the Easy Setup Wizard for Converter mode" is
displayed on the web browser, click "Next>>."
Enter the VE-PG2's IP address and subnet mask in "IP
address" and "Subnet mask."
• Set the default gateway when your VE-PG2 communicates with a
network device which has a different network IP address.
Click "Next>>" after you finish entering the addresses.
q Enter
w Click
[TRX1]
Extension number: 301
VE-PG2
Use ID: 301
192.168.0.1
Password: 14a399k
MODE DC LAN TRX1 TRX2 TRX3 IN + + OUT SW + ABC
IP
network
Connect the transceiver to the
VE-PG2's [TRX1] port.
5. "IP phone number setting" setting
Enter the extension number of the transceiver connected to
the VE-PG2's [TRX1] port.
Click "Next>>" after you finish entering.
q Enter
w Click
6. "Connection setting" setting
Enter the destination IP address (IP router's IP address) of
the transceiver connected to the [TRX1] port, the IP router's
user ID and password.
Click "Next>>" after you finish entering.
q Enter
w Click
7. "Call phone number setting" setting
If you want to call the IP telephone from the transceiver,
enter the IP telephone's extension number.
Click "Next>>" after you finish entering.
q Enter
w Click
8. Confirm the VE-PG2 setting
Confirm the VE-PG2 setting in "Verify setting," then click
"Save and Reboot" to save the settings.
• If you want to change the VE-PG2's setting, click "<<Back."
q Confirm
w Click
