13
PBX EXTEnSIon

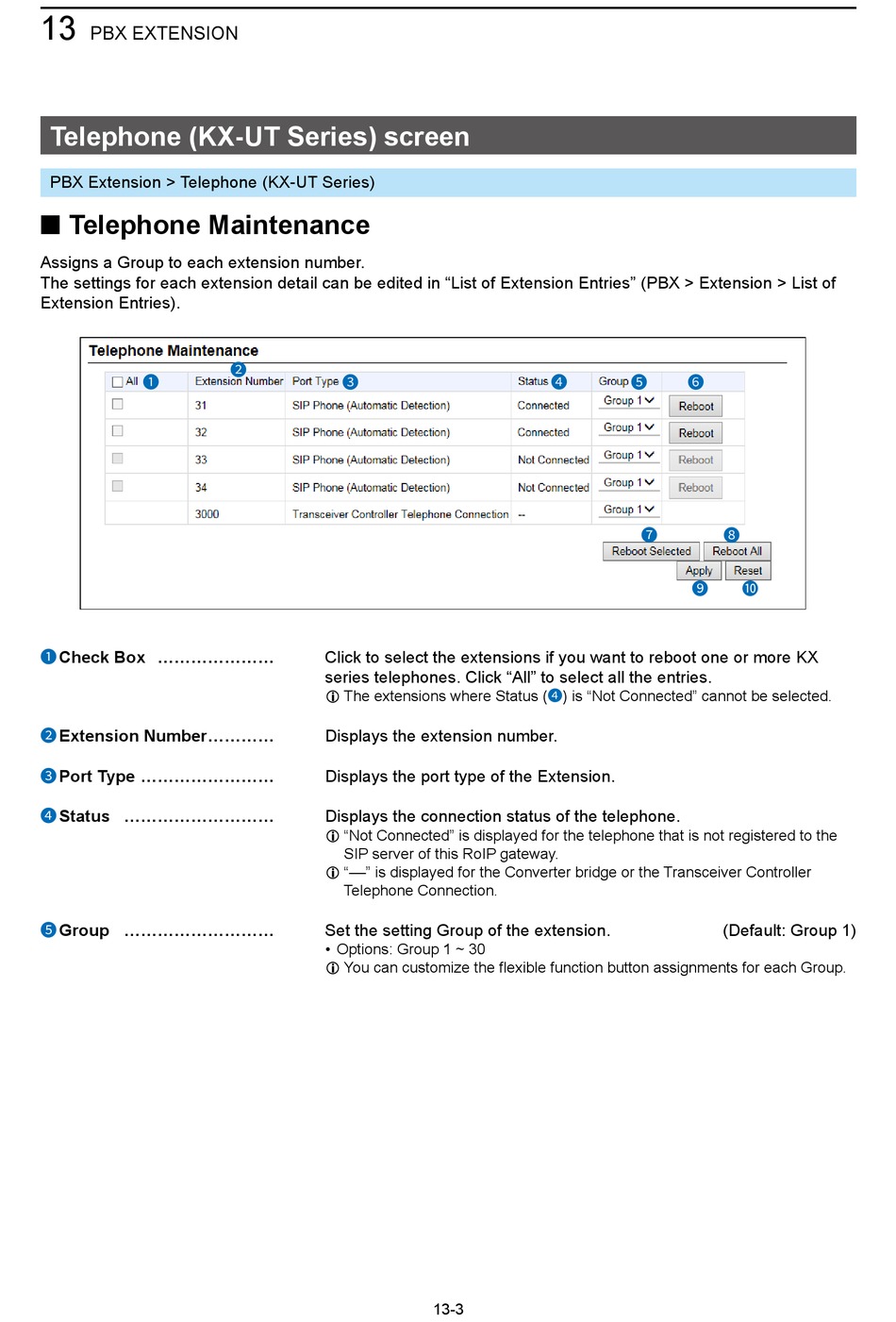

Telephone (KX-UT Series) screen
Telephone (KX-UT Series) screen
PBX Extension > Telephone (KX-UT Series) PBX Extension > Telephone (KX-UT Series)
■ Telephone Maintenance
Assigns a Group to each extension number.
The settings for each extension detail can be edited in "List of Extension Entries" (PBX > Extension > List of
Extension Entries).
1
Check Box �������
1
Extension Number ����
2
Port Type ��������
3
Status ���������
4
Group ���������
5
2
3
Click to select the extensions if you want to reboot one or more KX
series telephones. Click "All" to select all the entries.
L The extensions where Status (4) is "not Connected" cannot be selected.
Displays the extension number.
Displays the port type of the Extension.
Displays the connection status of the telephone.
L "not Connected" is displayed for the telephone that is not registered to the
SIP server of this RoIP gateway.
L "––" is displayed for the Converter bridge or the Transceiver Controller
Telephone Connection.
Set the setting Group of the extension.
• options: Group 1 ~ 30
L You can customize the flexible function button assignments for each Group.
4
13-3
5 6
7 8
9 10
(Default: Group 1)
