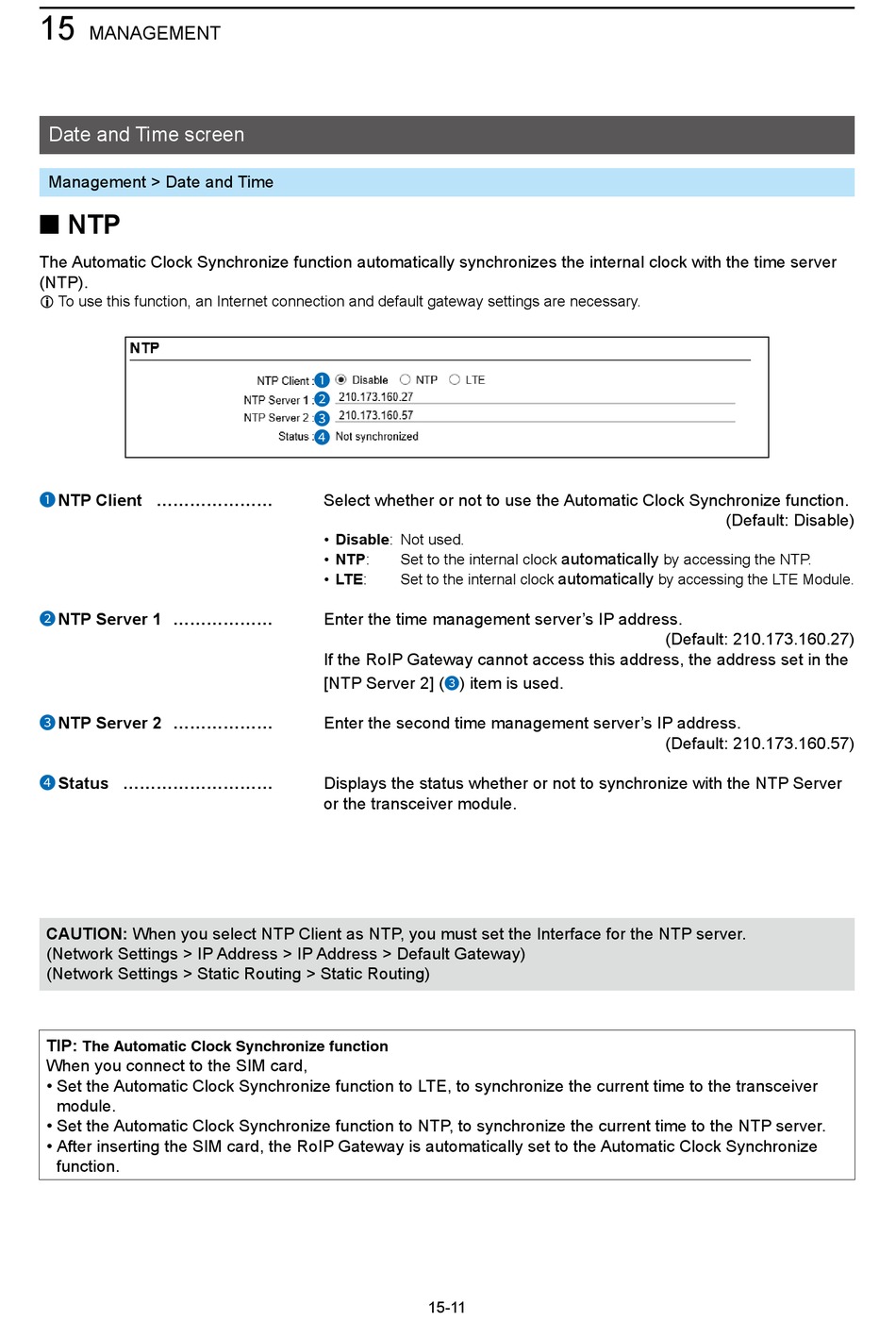

Icom VE-PG4 Operating Manual page 409

15
MANAGEMENT
Date and Time screen
Management > Date and Time
■ NTP
The Automatic Clock Synchronize function automatically synchronizes the internal clock with the time server
(NTP).
L To use this function, an Internet connection and default gateway settings are necessary.
NTP Client �������
1
NTP Server 1 ������
2
NTP Server 2 ������
3
Status ���������
4
CAUTION: When you select NTP Client as NTP, you must set the Interface for the NTP server.
(Network Settings > IP Address > IP Address > Default Gateway)
(Network Settings > Static Routing > Static Routing)
TIP:
The Automatic Clock Synchronize function
When you connect to the SIM card,
• Set the Automatic Clock Synchronize function to LTE, to synchronize the current time to the transceiver
module.
• Set the Automatic Clock Synchronize function to NTP, to synchronize the current time to the NTP server.
• After inserting the SIM card, the RoIP Gateway is automatically set to the Automatic Clock Synchronize
function.
1
2
3
4
Select whether or not to use the Automatic Clock Synchronize function.
• Disable: Not used.
• NTP: Set to the internal clock
• LTE: Set to the internal clock
Enter the time management server's IP address.
If the RoIP Gateway cannot access this address, the address set in the
[NTP Server 2] ( ) item is used.
3
Enter the second time management server's IP address.
Displays the status whether or not to synchronize with the NTP Server
or the transceiver module.
15-11
(Default: Disable)
automatically
by accessing the NTP.
automatically
by accessing the LTE Module.
(Default: 210.173.160.27)
(Default: 210.173.160.57)
