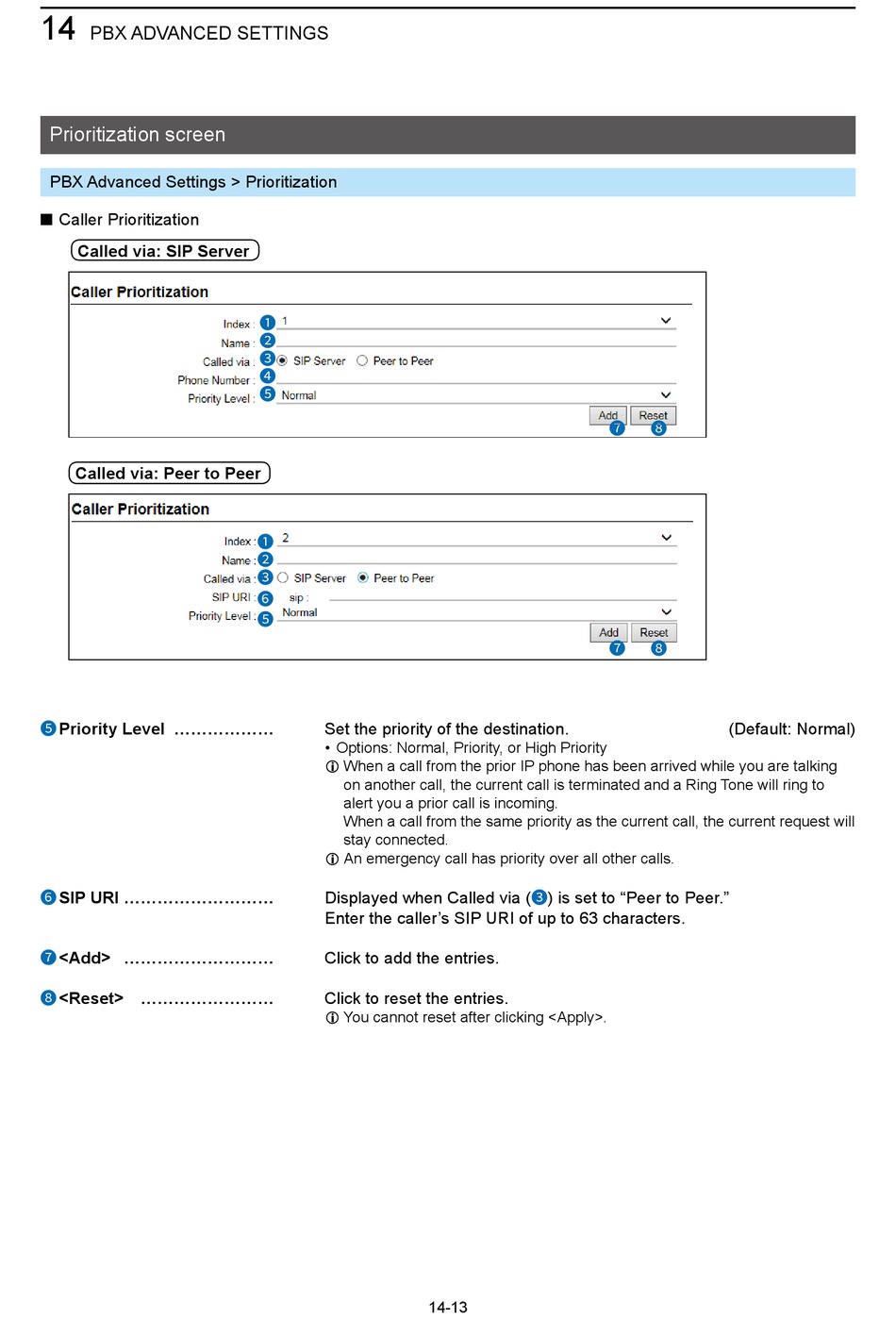

Icom VE-PG4 Operating Manual page 379

14
PBX ADVANCED SETTINgS
Prioritization screen
PBX Advanced Settings > Prioritization
■ Caller Prioritization
Called via: SIP Server
Called via: Peer to Peer
Priority Level ������
5
SIP URI ���������
6
<Add> ���������
7
<Reset> ��������
8
1
2
3
4
5
1
2
3
6
5
Set the priority of the destination.
• Options: Normal, Priority, or High Priority
L When a call from the prior IP phone has been arrived while you are talking
on another call, the current call is terminated and a Ring Tone will ring to
alert you a prior call is incoming.
When a call from the same priority as the current call, the current request will
stay connected.
L An emergency call has priority over all other calls.
Displayed when Called via (3) is set to "Peer to Peer."
Enter the caller's SIP URI of up to 63 characters.
Click to add the entries.
Click to reset the entries.
L You cannot reset after clicking <Apply>.
14-13
7 8
7 8
(Default: Normal)
