15
MANAGEMENT

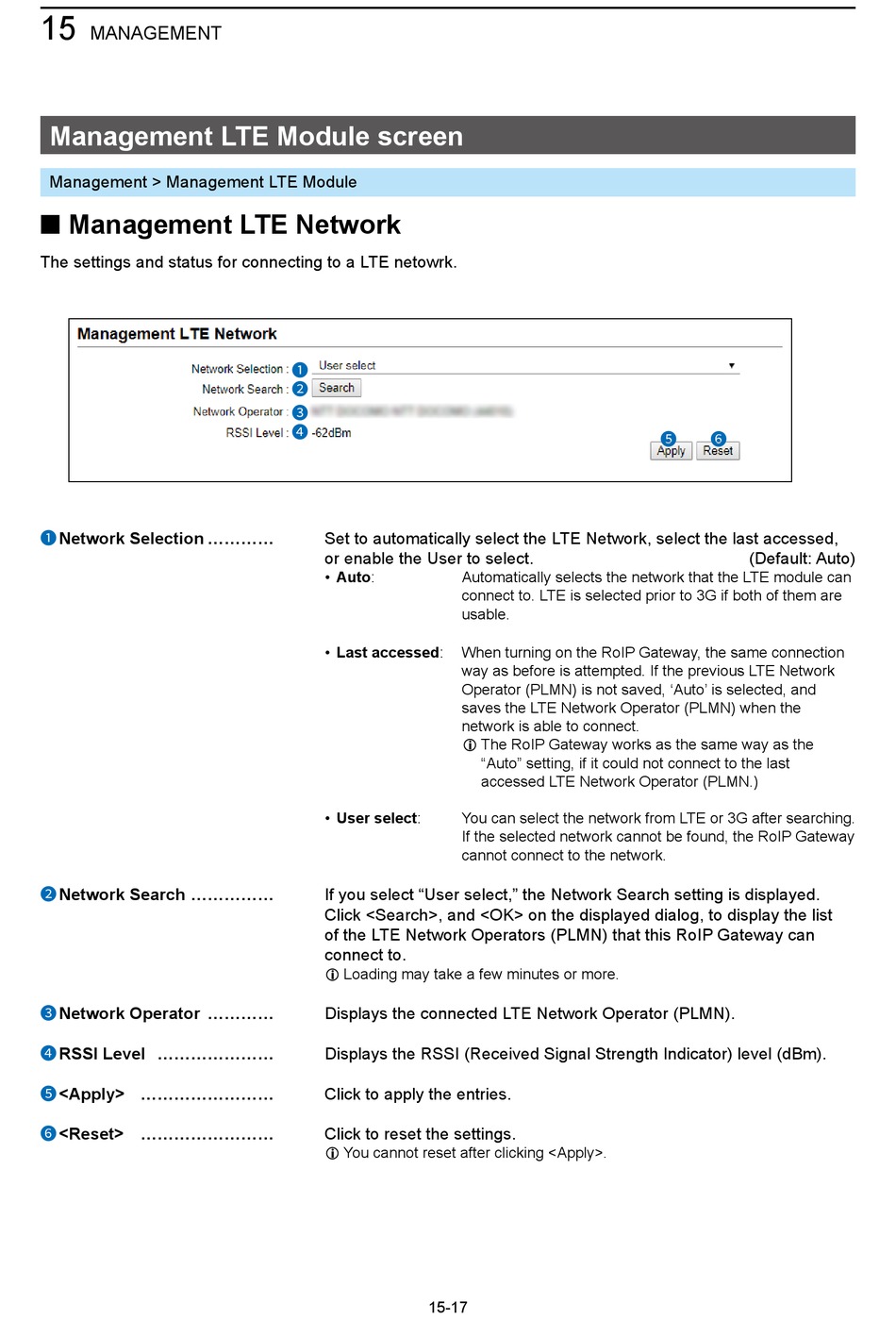

Management LTE Module screen

Management > Management LTE Module
■ Management LTE Network
The settings and status for connecting to a LTE netowrk.
Network Selection ����
1
Network Search �����
2
Network Operator ����
3
RSSI Level �������
4
<Apply> ��������
5
<Reset> ��������
6
1
2
3
4
Set to automatically select the LTE Network, select the last accessed,
or enable the User to select.
• Auto:
• Last accessed:
• User select:
If you select "User select," the Network Search setting is displayed.
Click <Search>, and <OK> on the displayed dialog, to display the list
of the LTE Network Operators (PLMN) that this RoIP Gateway can
connect to.
L Loading may take a few minutes or more.
Displays the connected LTE Network Operator (PLMN).
Displays the RSSI (Received Signal Strength Indicator) level (dBm).
Click to apply the entries.
Click to reset the settings.
L You cannot reset after clicking <Apply>.
15-17
Automatically selects the network that the LTE module can
connect to. LTE is selected prior to 3G if both of them are
usable.
When turning on the RoIP Gateway, the same connection
way as before is attempted. If the previous LTE Network
Operator (PLMN) is not saved, 'Auto' is selected, and
saves the LTE Network Operator (PLMN) when the
network is able to connect.
L The RoIP Gateway works as the same way as the
"Auto" setting, if it could not connect to the last
accessed LTE Network Operator (PLMN.)
You can select the network from LTE or 3G after searching.
If the selected network cannot be found, the RoIP Gateway
cannot connect to the network.
5 6
(Default: Auto)
