Icom VE-PG4 Operating Manual page 253

9
ExPERT SETTINGS

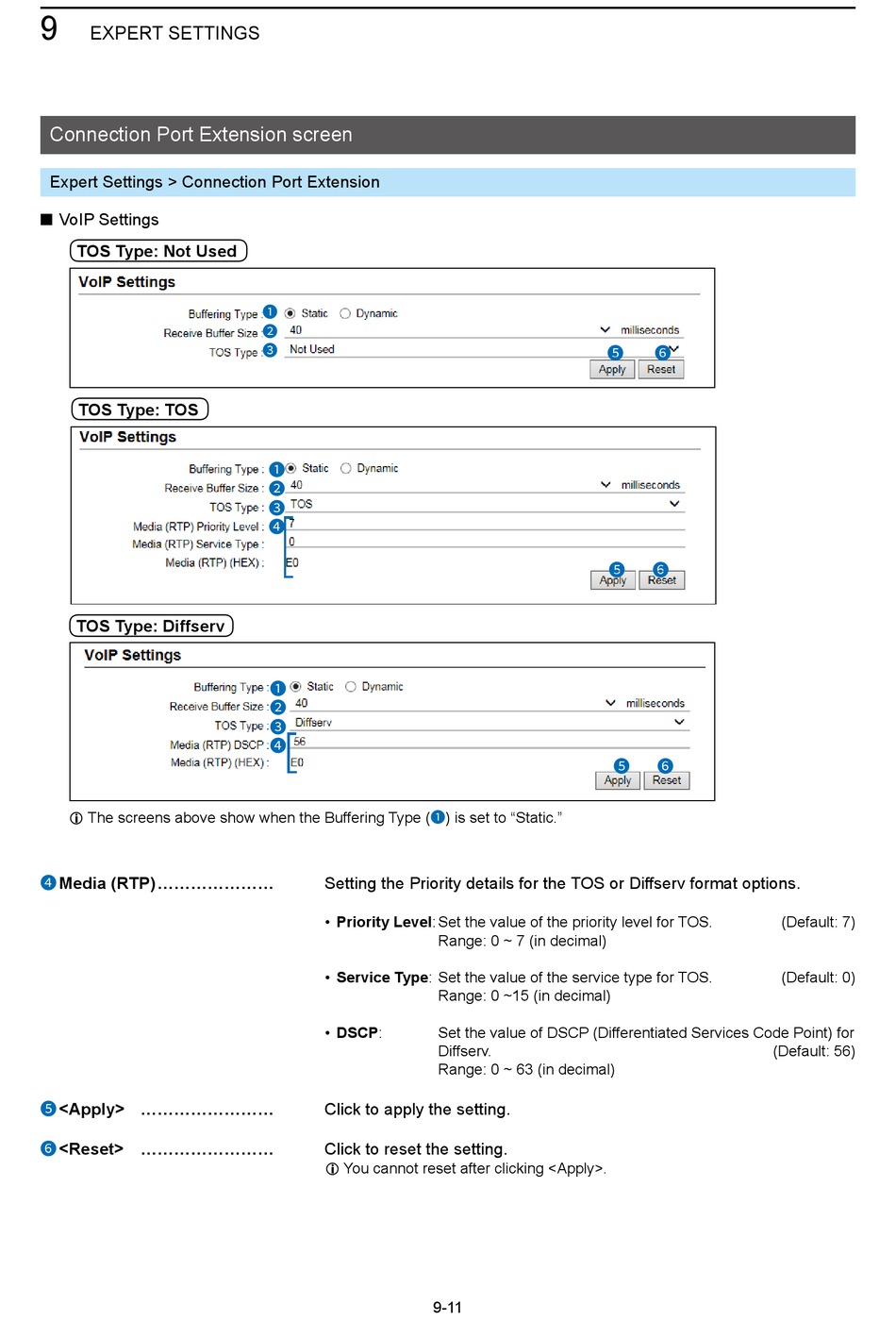

Connection Port Extension screen
Expert Settings > Connection Port Extension
■ VoIP Settings
TOS Type: Not Used
TOS Type: TOS
TOS Type: Diffserv
L The screens above show when the Buffering Type (1) is set to "Static."
Media (RTP) �������
4
<Apply> ��������
5
<Reset> ��������
6
1
2
3
1
2
3
4
1
2
3
4
Setting the Priority details for the TOS or Diffserv format options.
• Priority Level: Set the value of the priority level for TOS.
• Service Type: Set the value of the service type for TOS.
• DSCP:
Click to apply the setting.
Click to reset the setting.
L You cannot reset after clicking <Apply>.
Range: 0 ~ 7 (in decimal)
Range: 0 ~15 (in decimal)
Set the value of DSCP (Differentiated Services Code Point) for
Diffserv.
Range: 0 ~ 63 (in decimal)
9-11
5 6
5 6
5 6
(Default: 56)
(Default: 7)
(Default: 0)
