6.8 Absolute Encoders

6.8.3 Output Ports for the Position Data from the Absolute Encoder

6.8.3 Output Ports for the Position Data from the Absolute
Encoder
You can read the position data of the absolute encoder from the PAO, PBO, and PCO (Encoder
Divided Pulse Output) signals.
The output method and timing for the position data of the absolute encoder are different in each case.

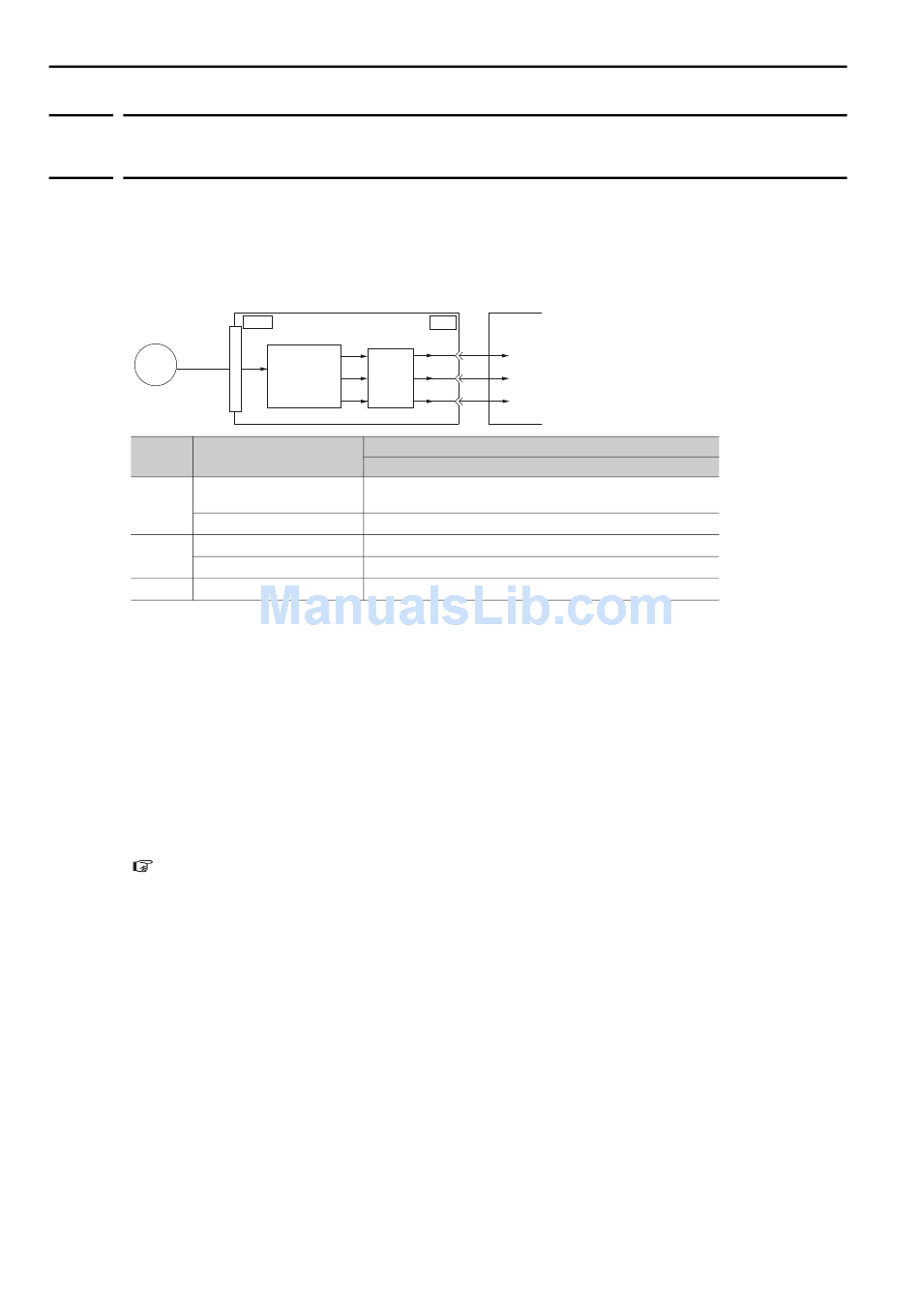

A conceptual diagram of the connections of the PAO, PBO, and PCO (Encoder Divided Pulse Output)
signals to the host controller is provided below.
ENC
Signal
PAO
PBO
PCO
The PAO (Encoder Divided Pulse Output) signal outputs the position data from the absolute encoder
after the control power supply is turned ON. The SENS_ON (Turn ON Sensor) command is used to
output the position data from the absolute encoder.
The position data of the absolute encoder is the current stop position. The absolute encoder outputs
the multiturn data with the specified protocol. The absolute encoder outputs the position within one
rotation as a pulse train. It then outputs pulses as an incremental encoder (incremental operation sta-
tus).
The host controller must have a reception circuit (e.g., UART) for the position data from the absolute
encoder. The pulse counter at the host controller will not count pulses when the multiturn data (com-
munications message) is input because only phase A is input. Counting starts from the position of the
absolute encoder within one rotation.
The output circuits for the PAO, PBO, and PCO signals use line drivers. Refer to the following section
for details on line drivers.
4.5.4
6-34
SERVOPACK
CN2
Serial
data
Conversion of
serial data to
pulses
Status
First signal
During normal operation
First signal
During normal operation
Always
I/O Circuits on page 4-39
Host controller
CN1
PAO
Dividing
PBO
circuit
(Pn212)
PCO
Signal Contents
When Using an Absolute Encoder
Multiturn data position within one rotation (pulse train)
Incremental pulses
Position within one rotation (pulse train)
Incremental pulses
Origin pulse
