FRAME/BODY PANELS/EXHAUST SYSTEM

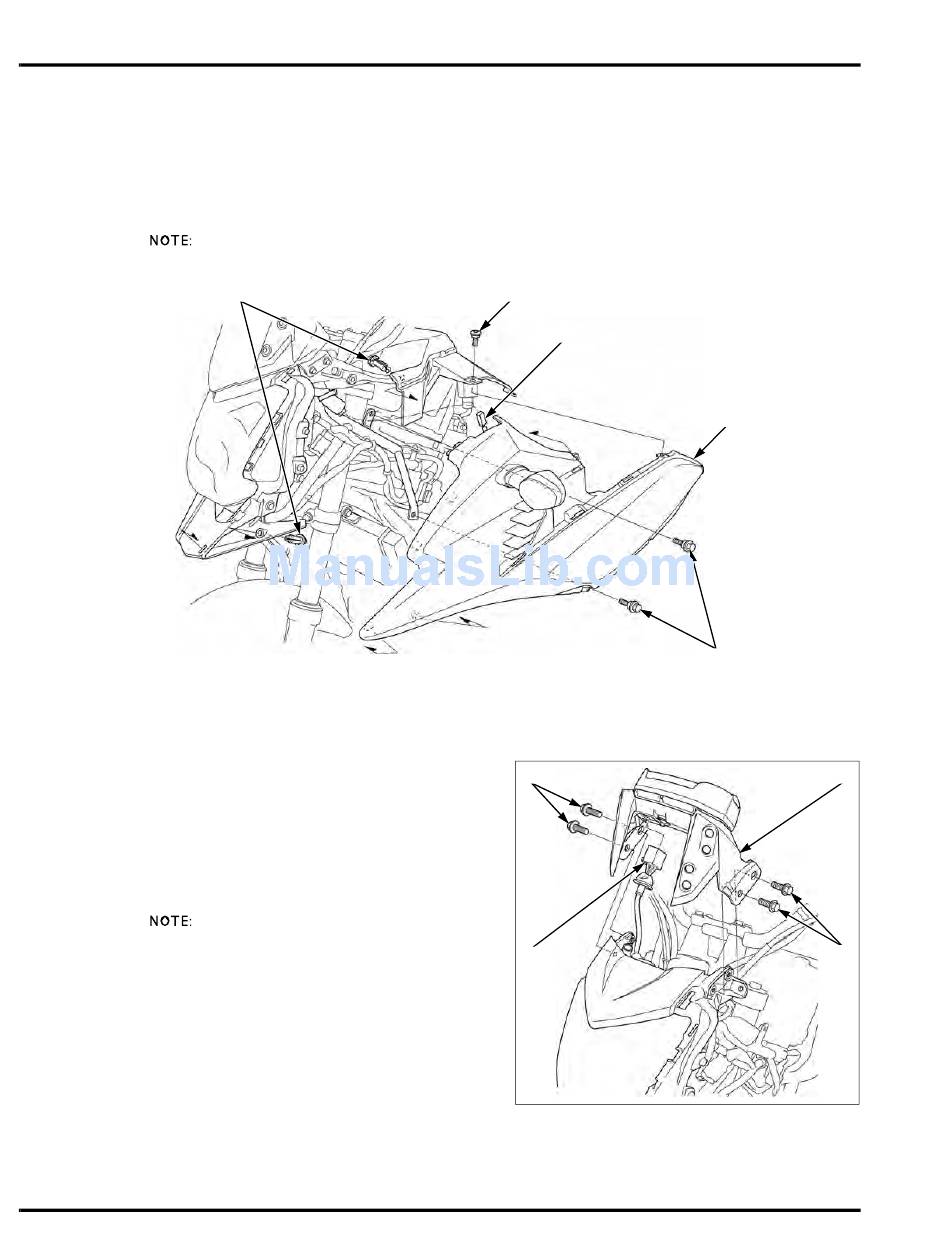

FRONT SIDE COWL (NC700X/XA/XD)

REMOVAL/INSTALLATION
Remove the shroud/side cover (page 2-14).
Remove the trim clips [1], socket bolt [2] and bolts [3].
Disconnect the front turn signal light 3P connector [4] and remove the front side cowl [5].
Installation is in the reverse order of removal.
Route the wire harness properly (page 1-25).

METER STAY (NC700X/XA/XD)

REMOVAL/INSTALLATION
Remove the following:
– Windscreen (page 2-23)
– Front side cowl (page 2-24)
Disconnect
connector [1].
Remove the bolts [2] and meter stay [3].
Installation is in the reverse order of removal.
• For combination meter removal/installation (page
22-9).
• For digital clock setting procedure (page 22-14).
2-24
[1]
the combination meter
[2]
[4]
[2]
16P (Gray)
[1]
[5]
[3]
[3]
[2]
