ENGINE REMOVAL/INSTALLATION

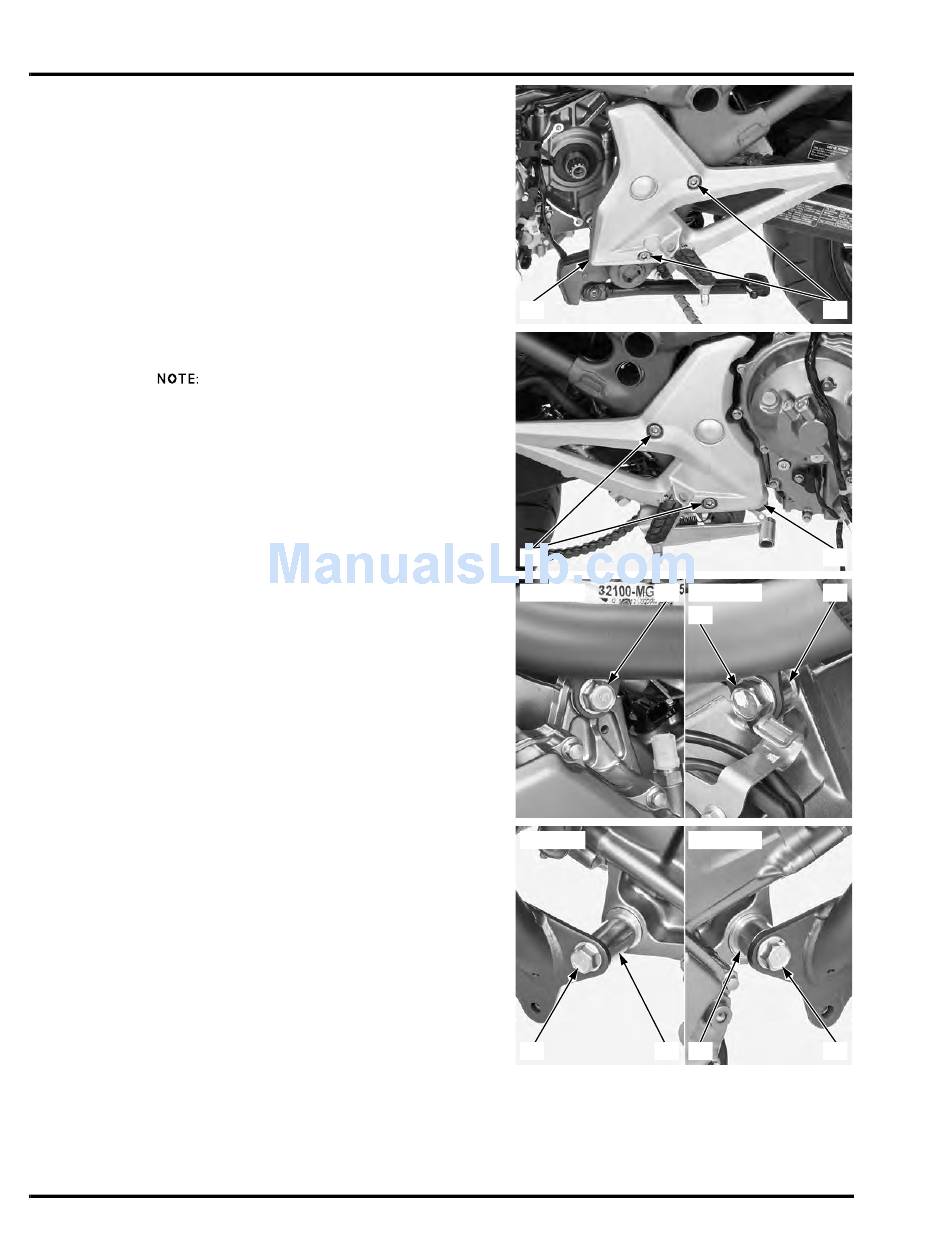

Remove the step holder mounting socket bolts [1] and
left step holder [2].
Remove the step holder mounting socket bolts [1] and
right step holder [2].
Do not twist the brake hose.
Support the engine using a jack or other adjustable
The jack height
support to ease of engine hanger bolts removal.
must be continually
adjusted to relieve
Remove the upper engine hunger bolts [1] and collar
stress for ease of
[2].
bolt removal.
Remove the front lower hunger bolts [1] and collars [2].
16-14
[2]
[1]
Left side: [1] Right side:
[1]
Left side: Right side:
[1] [2] [2]
[1]
[2]
[2]
[1]
