Indicator Lamp; Reading The Screen (Lcd); Default Screen (Ready Screen) - GRAPHTEC CE6000-120AP User Manual

Indicator Lamp

SIMPLE lamp ............. A green light indicates Simple menu is on.
MENU lamp ................ A green light indicates MENU mode is on.

Reading the Screen (LCD)

Information reflecting the status will be displayed in the screen of the control panel.
Name of the button and corresponding function is displayed on the screen when a function is allocated to the
button on the control panel. Button name will be displayed in reverse when the button is enabled.

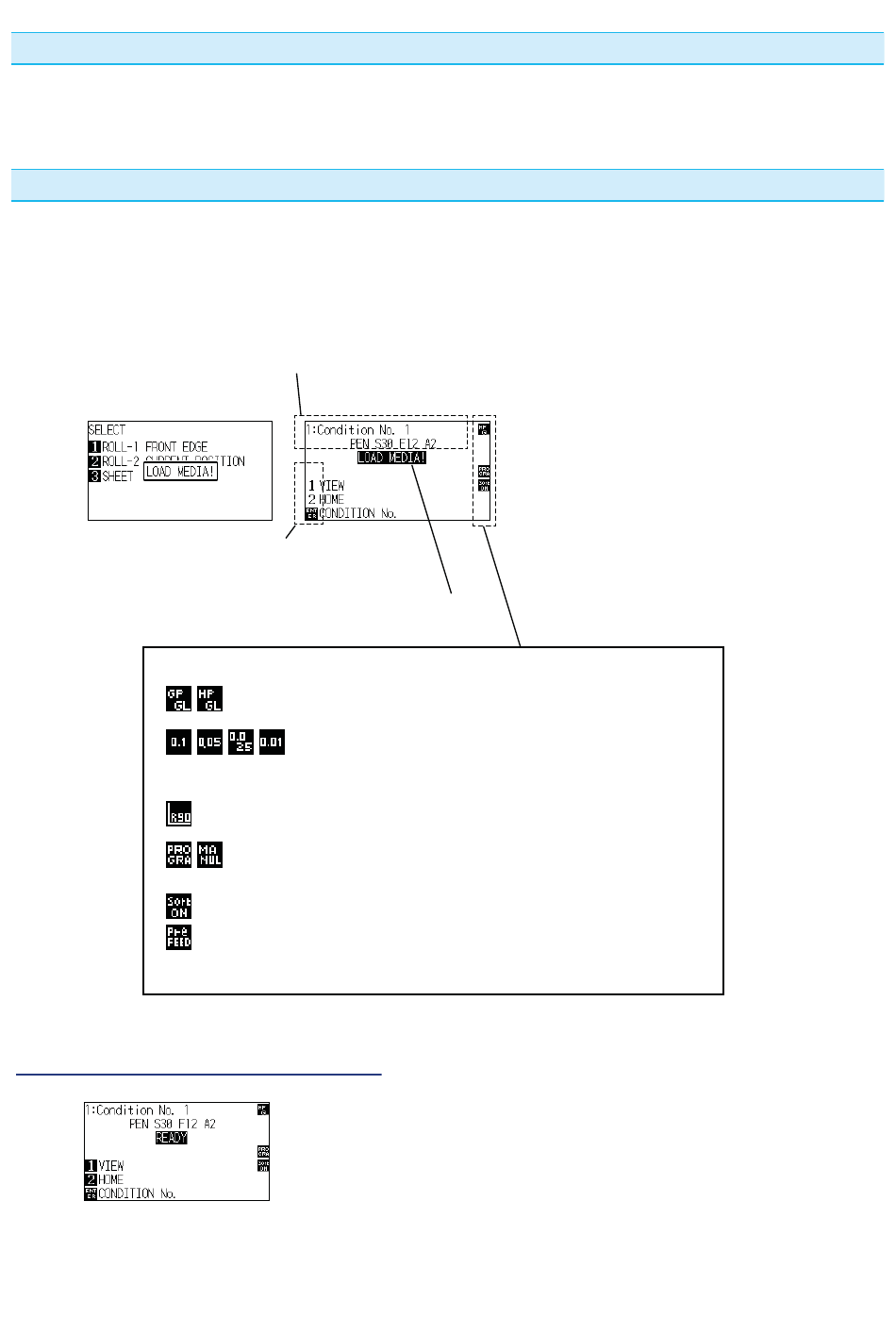

Following items are displayed in the default screen.
This instruction manual will use Normal menu screens to demonstrate everything.
Media set lever raised
Corresponding button name of control panel
(Valid button is displayed in reverse)
Display of setting condition

Default Screen (Ready Screen)

Tool condition currently using
Media set lever lowered
Set condition of media (READY status: It will
display "READY" when the media is loaded)
Command : GP GL
HP GL
Step size : 0.1
0.05
0.025
0.01
Rotate : R90
Priority : MANUL
: PROGRA : Pogram priority
Sort : Sort ON : Display when sort is on
Prefeed : Pre FEED : Display when automatic media feed is on
: GP-GL Command
: HP-GL Command
: 0.1 mm
: 0.05 mm (50 μm)
: 0.025 mm (25 μm)
: 0.01 mm (10 μm)
: Rotate 90°
: Manual priority
