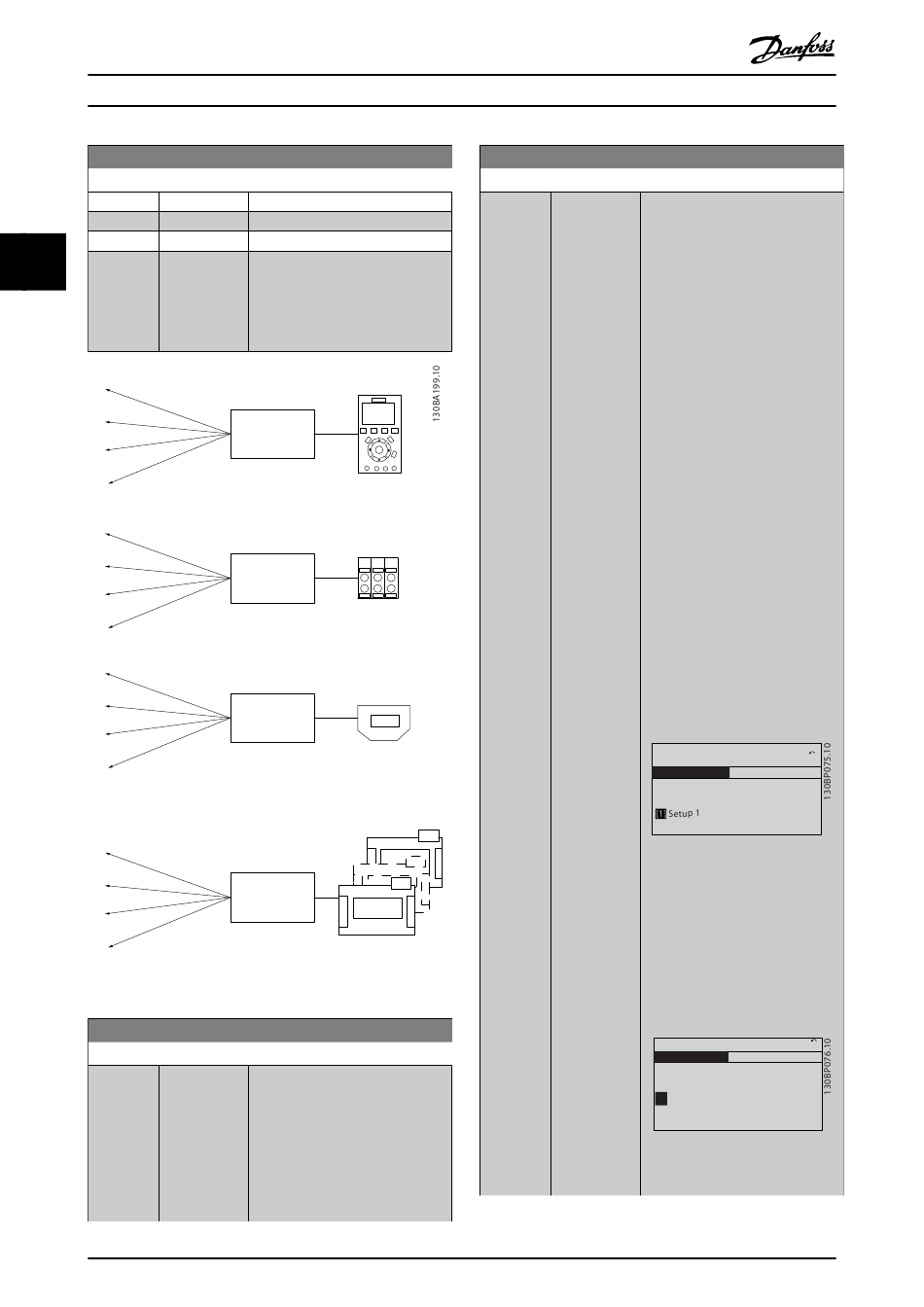

Danfoss VLT AutomationDrive FC 301 Programming Manual page 28

Parameter Descriptions
0-11 Edit Set-up
Option:
[2] Set-up 2
[3] Set-up 3
[4] Set-up 4
3 3
[9] Active Set-up
Set-up
1
2
3
4
Set-up
1
2
3
4
Set-up
1
2
3
4
Set-up
1
2
3
4
Illustration 3.1 Edit Set-up
0-12 This Set-up Linked to
Option:
26
®
VLT AutomationDrive FC 301/302
Function:
Can also be edited during
operation. Edit the selected set-up
from a range of sources: LCP, FC
RS485, FC USB, or up to 5 fieldbus
sites.
P 0-11
P 0-11
P 0-11
PLC Fieldbus
P 0-11
Function:
To enable conflict-free changes
from 1 set-up to another during
operation, link set-ups containing
parameters which are not
changeable during operation. The
link ensures synchronizing of the
not changeable during operation-
parameter values when moving
Danfoss A/S © 10/2019 All rights reserved.
0-12 This Set-up Linked to
Option: Function:
from 1 set-up to another during
operation. Not changeable during
operation-parameters can be
identified by the label FALSE in the
parameter lists in
chapter 5 Parameter Lists.
Parameter 0-12 This Set-up Linked to
is used by [9] Multi set-up in
parameter 0-10 Active Set-up. Multi
set-up is used to move from 1 set-
up to another during operation
(that is while the motor is running).
Example:
Use multi set-up to shift from set-
up 1 to set-up 2 while the motor is
running.Program in set-up 1 first,
then ensure that set-up 1 and set-
up 2 are synchronized (or linked).
Synchronization can be performed
in 2 ways:
1. Select the following options:
This starts the linking (synchro-
nizing) process.
0 RPM
Set-up Handling
0-12 This Set-up Linked to
Illustration 3.2 Set-up 1
OR
2. While still in set-up 1, copy set-
up 1 to set-up 2. Then set
parameter 0-12 This Set-up Linked to
to [2] Set-up 2. This starts the
linking process.
0 RPM
Set-up Handling
0-12 This Set-up Linked to
[2]
Illustration 3.3 Set-up 2
•
[2] Set-up 2 in
parameter 0-11 Edit Set-up.
•
parameter 0-12 This Set-up
Linked to to [1] Set-up 1.
0.00A 1(1)
0-1*
0.00A 1(1)
0-1*
Setup 2
M0013101
