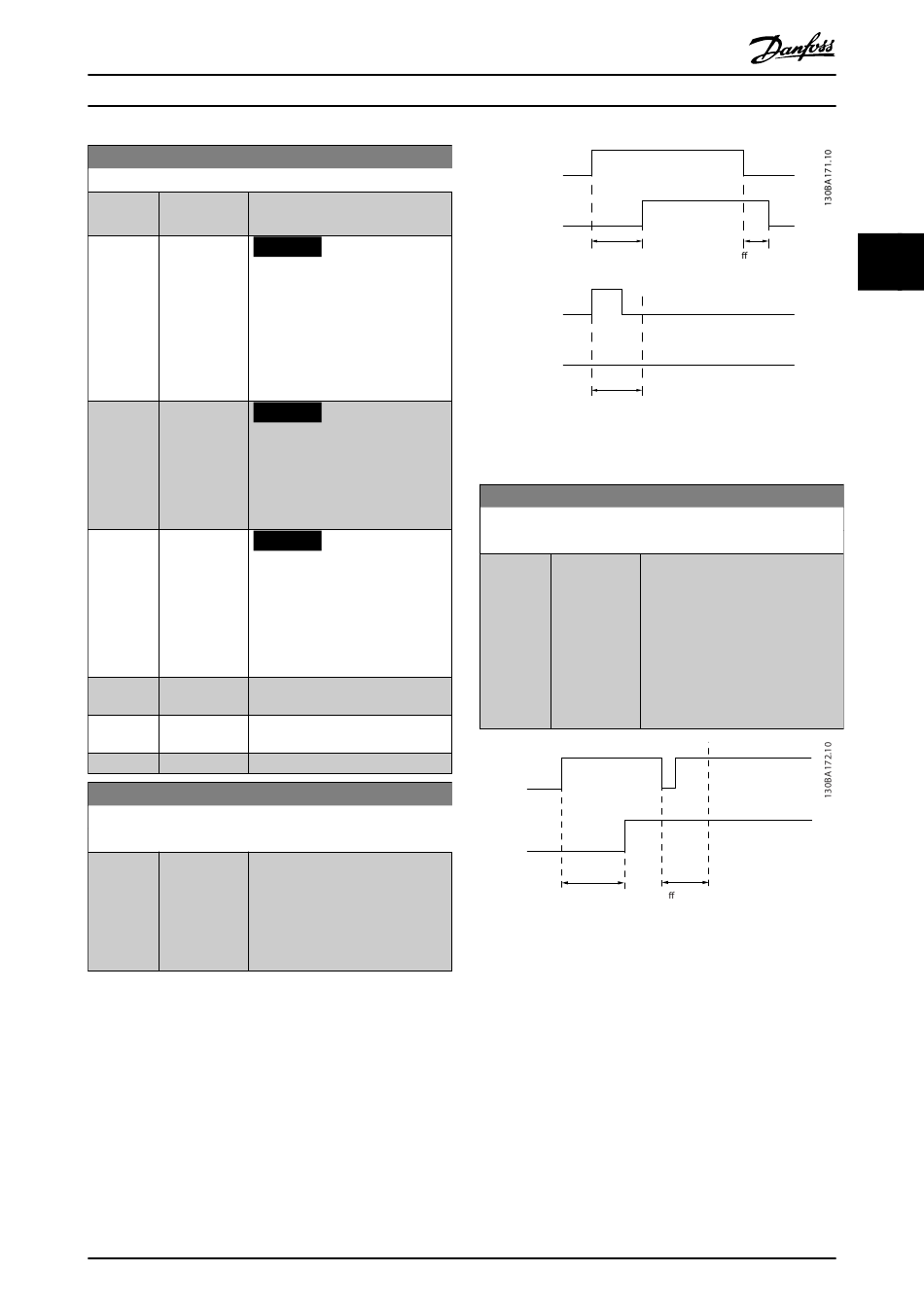

Danfoss VLT AutomationDrive FC 301 Programming Manual page 157

Parameter Descriptions
5-40 Function Relay
Option: Function:
parameter 4-72 Position Error
Timeout.
NOTICE
[225] Position Error
This option is available only
with software version 48.XX.
The position is outside the limits
set in parameter 3-06 Minimum
Position and
parameter 3-07 Maximum Position.
NOTICE
[226] Touch on
Target
This option is available only
with software version 48.XX.
Target position is reached in touch
probe position mode.
NOTICE
[227] Touch
Activated
This option is available only
with software version 48.XX.
Touch probe positioning active. The
frequency converter monitors the
touch probe sensor input.
[231] In Power Lim.
Mot.
[232] In Power Lim.
Gen.
[233] In Power Limit
5-41 On Delay, Relay
Array [20]
Range: Function:
0.01 s [0.01 - 600 s] Enter the delay of the relay cut-in
*
time. Select 1 of 2 internal
mechanical relays in an array
function. See
parameter 5-40 Function Relay for
details.
M0013101
Programming Guide
Selected
Event
Relay
output
Selected
Event
Relay
output
Illustration 3.37 On Delay, Relay
5-42 Off Delay, Relay
Array[20]
Range:
0.01 s
*
Selected
Event
Relay
output
Illustration 3.38 Off Delay, Relay
If the selected event condition changes before the on
delay or off delay timer expires, the relay output is
unaffected.
3.6.5 5-5* Pulse Input
The pulse input parameters are used to define an
appropriate window for the impulse reference area by
configuring the scaling and filter settings for the pulse
inputs. Input terminals 29 or 33 act as frequency reference
inputs. Set terminal 29 (parameter 5-13 Terminal 29 Digital
Input) or terminal 33 (parameter 5-15 Terminal 33 Digital
Danfoss A/S © 10/2019 All rights reserved.
On Delay O Delay
P 5-41
On Delay
P 5-41
Function:
[0.01 - 600 s] Enter the delay of the relay cutout
time. Select 1 of 2 internal
mechanical relays in an array
function. See
parameter 5-40 Function Relay for
details. If the selected event
condition changes before a delay
timer expires, the relay output is
unaffected.
On Delay O Delay
P 5-41 P 5-42
3 3
P 5-42
