Parameter Descriptions
5-66 Terminal X30/6 Pulse Output Variable
Select the variable for readout on terminal X30/6.
This parameter is active when VLT
is installed in the frequency converter.
Same options and functions as parameter group 5-6* Pulse
Outputs.
Option: Function:
NOTICE
[97] Reference
After Ramp
This option is available only
with software version 48.XX.
Actual speed reference after the
ramp. Use this output as master
signal for speed synchronization of
follower frequency converters. The
reference is set in
parameter 16-48 Speed Ref. After
Ramp [RPM].
NOTICE
[99] Virtual Master
Speed
This option is available only
with software version 48.XX.
Virtual master signal for controlling
the speed or position of the
followers.
[100] Output
frequency
[101] Reference
[102] Feedback
[103] Motor Current
[104] Torque rel to
limit
[105] Torq relate to
rated
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq
[119] Torque % lim
5-68 Pulse Output Max Freq #X30/6
Range: Function:
NOTICE
Size [0 - 110000
related Hz]
*
This parameter cannot be
adjusted while the motor is
running.
Select the maximum frequency on
terminal X30/6 referring to the
output variable in
parameter 5-66 Terminal X30/6 Pulse
Output Variable.
M0013101
Programming Guide
®
General Purpose I/O MCB 101
Danfoss A/S © 10/2019 All rights reserved.
5-68 Pulse Output Max Freq #X30/6
Range: Function:
This parameter is active when VLT
General Purpose I/O MCB 101 is
installed in the frequency converter.
3.6.7 5-7* 24 V Encoder Input
Connect the 24 V encoder to terminal 12 (24 V DC supply),
terminal 32 (channel A), terminal 33 (channel B), and
terminal 20 (GND). The digital inputs 32/33 are active for
encoder inputs when [1] 24 V encoder is selected in
parameter 1-02 Flux Motor Feedback Source and
parameter 7-00 Speed PID Feedback Source. The encoder
used is a dual-channel (A and B) 24 V type. Maximum
input frequency: 110 kHz.
Encoder connection to the frequency converter
24 V incremental encoder. Maximum cable length is 5 m
(16.4 ft).
12 13 18 19 27 29
24 V or 10–30 V encoder

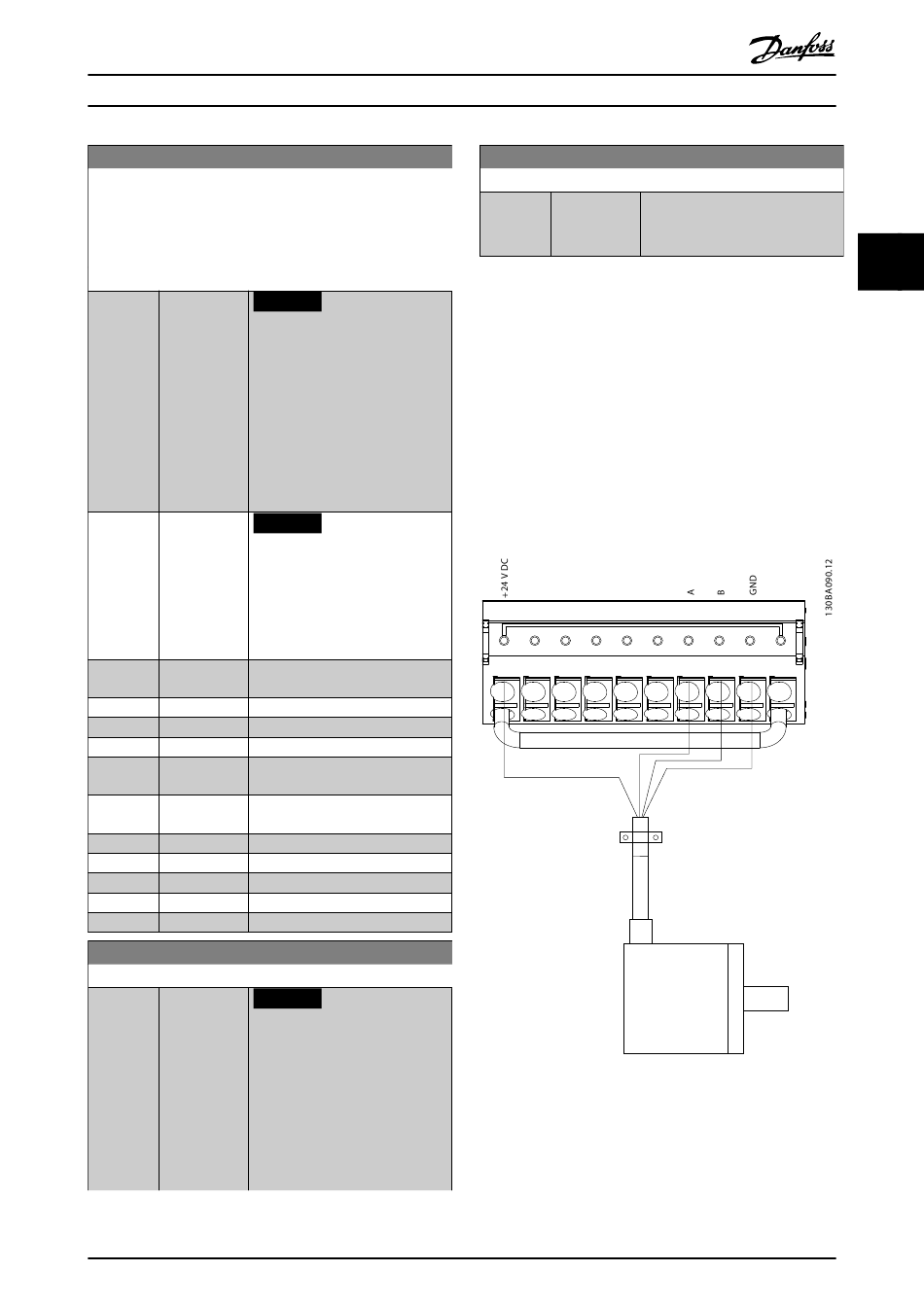

Illustration 3.41 Encoder Connection
®
32 33 20 37
