Parameter Descriptions
4-45 Motor Speed Monitor Timeout
Range:
0.1 s
*
3 3
4-49 Motor Check Time Interval
Option:
[0] As fast as
*
possible
[5] Every 1 hour
[10] Every 2 hours
[15] Every 12 hours
[20] Every 24 hours
3.5.4 4-5* Adjustable Warnings
Use these parameters to adjust warning limits for current,
speed, reference, and feedback.
Warnings are shown on the LCP and can be programmed
to be outputs or to be read out via fieldbus in the
extended status word.
108
Function:
NOTICE
[0 - 60 s]
Only available in flux control
principle.
Enter the timeout period during
which a deviation defined in
parameter 4-44 Motor Speed Monitor
Max is allowable. The timer for this
parameter is reset if the deviation
stops exceeding the value in
parameter 4-44 Motor Speed Monitor
Max.
Function:
NOTICE
The parameter is only
applicable for 8.XX.
Select the time interval at which
the connections between the motor
and the drive is checked, when the
motor is stopped. The motor check
is performed at a specified interval,
unless the motor is started in
between.
The motor time constant (x10) is
used as the time interval to check
the motor.
Danfoss A/S © 10/2019 All rights reserved.
®
VLT AutomationDrive FC 301/302
I
motor
I
LIM
(P 4-18)
I
HIGH
(P 4-51)
I
LOW
(P 4-50)

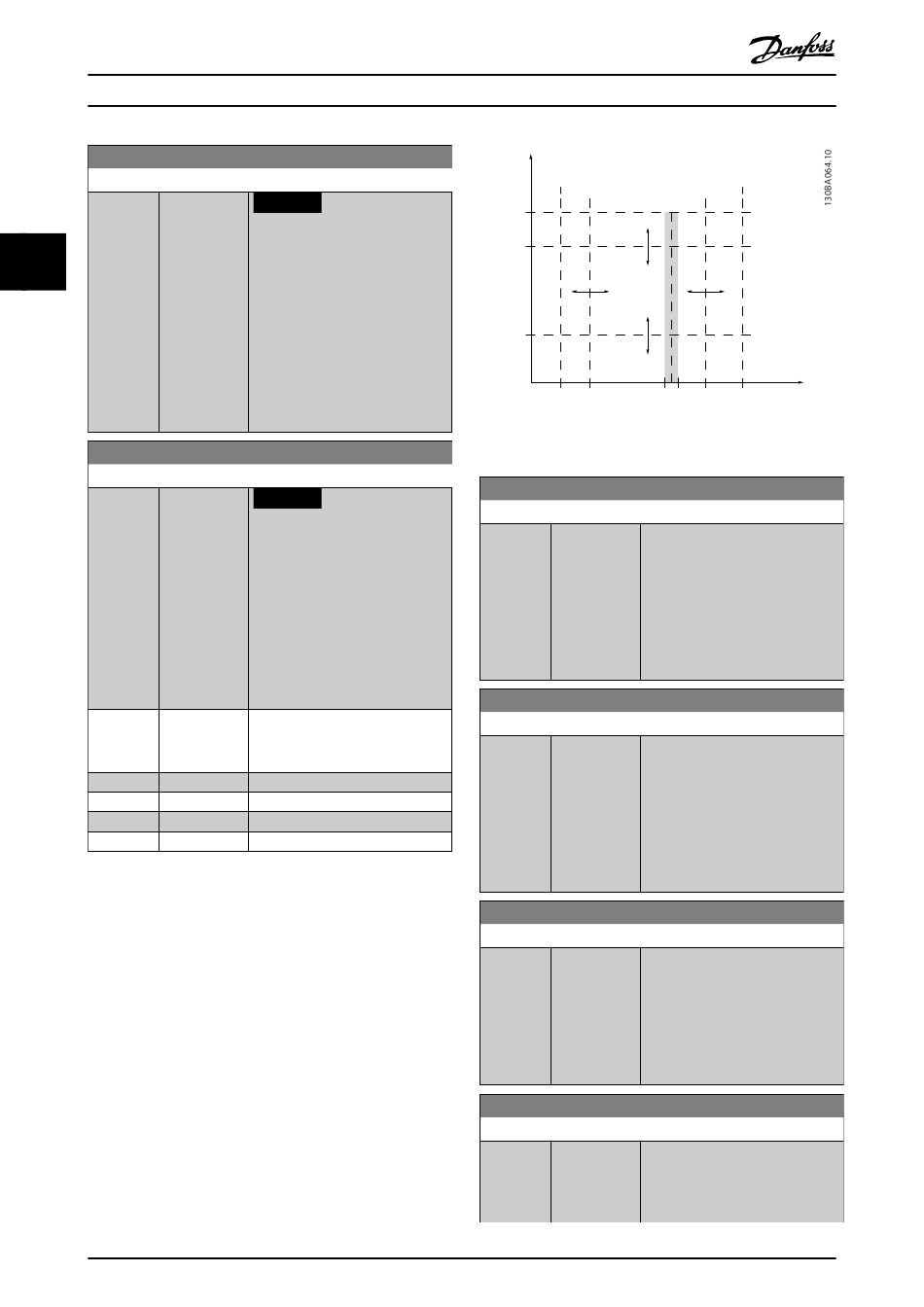

Illustration 3.33 Adjustable Warnings
4-50 Warning Current Low
Range:
0 A
*
4-51 Warning Current High
Range:
Size
related
*
4-52 Warning Speed Low
Range:
0 RPM
*
4-53 Warning Speed High
Range:
Size
related
*
ON REF
IN RANGE
n n n
REF
MIN LOW HIGH
(P 4-11) (P 4-52) (P 4-53)
Function:
[ 0 - par. 4-51 Enter the I
LOW
A] motor current falls below this limit,
the display reads Current Low. The
signal outputs can be programmed
to produce a status signal on
terminal 27 or 29 (FC 302 only) and
on relay output 01 or 02 (FC 302
only). Refer to Illustration 3.33.
Function:
[ par. 4-50 - Enter the I
HIGH
par. 16-37 A] motor current exceeds this limit,
the display reads Current High. The
signal outputs can be programmed
to produce a status signal on
terminal 27 or 29 (FC 302 only) and
on relay output 01 or 02 (FC 302
only). Refer to Illustration 3.33.
Function:
[ 0 - par. 4-53 Enter the n
LOW
RPM] motor speed exceeds this limit, the
display reads Speed low. The signal
outputs can be programmed to
produce a status signal on terminal
27 or 29 (FC 302 only) and on relay
output 01 or 02 (FC 302 only).
Function:
[ par. 4-52 - Enter the n
HIGH
60000 RPM] motor speed exceeds this value, the
display reads Speed high. The signal
outputs can be programmed to
n
[RPM]
motor
n
MAX
(P 4-13)
value. When the
value. When the
value. When the
value. When the
