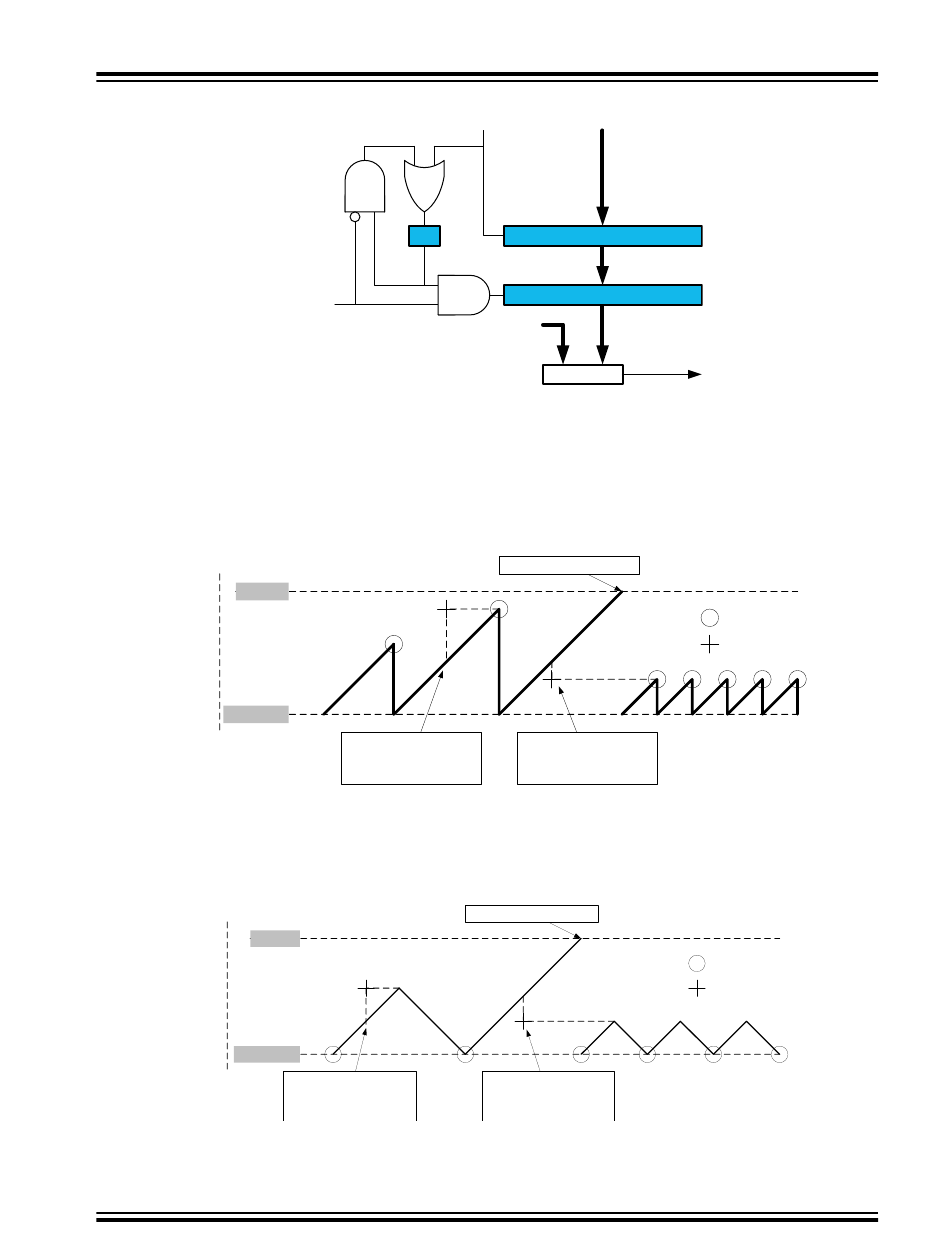

Figure 19-5. Period and Compare Double Buffering
Both the TCAn.CMPn and TCAn.CMPnBUF registers are available as I/O registers. This allows
initialization and bypassing of the buffer register and the double buffering function.
19.3.3.3 Changing the Period
The Counter period is changed by writing a new TOP value to the Period register (TCAn.PER).
No Buffering: If double buffering is not used, any period update is immediate.
Figure 19-6. Changing the Period Without Buffering
CNT
A counter wraparound can occur in any mode of operation when up-counting without buffering. This is
due to the fact that the TCAn.CNT and TCAn.PER registers are continuously compared: if a new TOP
value is written to TCAn.PER that is lower than current TCAn.CNT, the counter will wrap first, before a
compare match happens.
Figure 19-7. Unbuffered Dual-Slope Operation
CNT
©
