High-Speed, Microcontroller-Adaptable,
Features
• High-Speed PWM Operation (12 ns Current
Sense to Output Delay)
• Operating Temperature Range:
- -40°C to +125°C
• Precise Peak Current Limit (±5%) (MCP1630)
• Voltage Mode and Average Current Mode Control
(MCP1630V)
• CMOS Output Driver (drives MOSFET driver or
low-side N-channel MOSFET directly)
• External Oscillator Input
®
(from PICmicro
Microcontroller (MCU))
• External Voltage Reference Input (for adjustable
voltage or current output application)
• Peak Current Mode Operation > 1 MHz
• Low Operating Current: 2.8 mA (typ.)
• Fast Output Rise and Fall Times: 5.9 ns and
6.2 ns
• Undervoltage Lockout (UVLO) Protection
• Output Short Circuit Protection
• Overtemperature Protection
Applications
• Intelligent Power Systems
• Smart Battery Charger Applications
• Multiple Output/Multiple Phase Converters
• Output Voltage Calibration
• AC Power Factor Correction
• VID Capability (programmed and calibrated by
®
PICmicro
microcontroller)
• Buck/Boost/Buck-Boost/SEPIC/Flyback/Isolated
Converters
• Parallel Power Supplies
Related Literature
• "MCP1630 NiMH Demo Board User's Guide",
Microchip Technology Inc., DS51505, 2004
• "MCP1630 Low-Cost Li-Ion Battery Charger
User's Guide", Microchip Technology Inc.,
DS51555, 2005
• "MCP1630 Li-Ion Multi-Bay Battery Charger
User's Guide", Microchip Technology Inc.,
DS51515, 2005
• "MCP1630 Dual Buck Demo Board User's Guide",
Microchip Technology Inc., DS51531, 2005
© 2005 Microchip Technology Inc.
MCP1630/MCP1630V
Pulse Width Modulator
Description
The MCP1630/V is a high-speed Pulse Width Modula-
tor (PWM) used to develop intelligent power systems.
When used with a microcontroller unit (MCU), the
MCP1630/V will control the power system duty cycle to
provide output voltage or current regulation. The MCU
can be used to adjust output voltage or current, switch-
ing frequency, maximum duty cycle and other features
that make the power system more intelligent.
Typical applications include smart battery chargers,
intelligent power systems, brick dc/dc converters, ac
power-factor correction, multiple output power supplies,
multi-phase power supplies and more.
The MCP1630/V inputs were developed to be easily
attached to the I/O of a MCU. The MCU supplies the
oscillator and reference to the MCP1630/V to provide
the most flexible and adaptable power system. The
power system switching frequency and maximum duty
cycle are set using the I/O of the MCU. The reference
input can be external, a D/A Converter (DAC) output or
as simple as an I/O output from the MCU. This enables
the power system to adapt to many external signals
and variables in order to optimize performance and
facilitate calibration.
When operating in Current mode, a precise limit is set
on the peak current. With the fast comparator speed
(typically 12 ns), the MCP1630 is capable of providing a
tight limit on the maximum switch current over a wide
input voltage range when compared to other high-speed
PWM controllers.
For
Voltage
mode
or
applications, the MCP1630V provides a larger range for
the external ramp voltage.
Additional
protection
features
overtemperature and overcurrent.
Package Type
8-Lead DFN
(2 mm x 3 mm)
COMP
COMP
V
1
8
REF
FB
2
7
V
IN
CS
3
6
V
EXT
OSC IN
4
5
OSC IN
GND
Average
Current
mode
include:
UVLO,

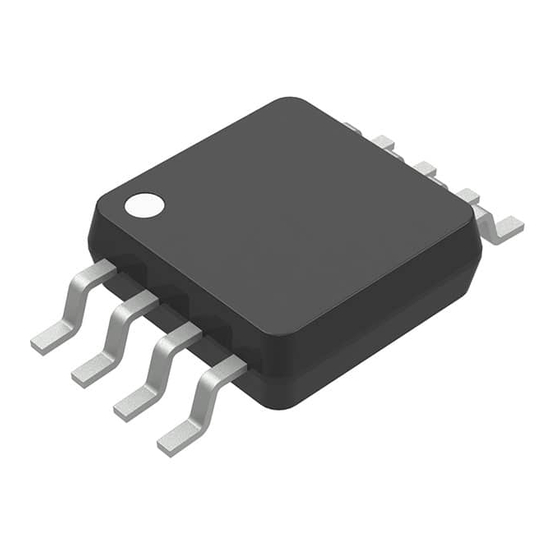

8-Lead MSOP
8
V
1
REF
FB
2
7
V
IN
CS
3
6
V
EXT
4
5
GND
DS21896B-page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCP1630V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Microchip Technology MCP1630V

  • Page 1 • AC Power Factor Correction • VID Capability (programmed and calibrated by Voltage mode Average Current mode ® PICmicro microcontroller) applications, the MCP1630V provides a larger range for the external ramp voltage. • Buck/Boost/Buck-Boost/SEPIC/Flyback/Isolated Converters Additional protection features include: UVLO, • Parallel Power Supplies overtemperature and overcurrent.
  • Page 2 Functional Block Diagram – MCP1630 MCP1630 High-Speed PWM Overtemperature 0.1 µA UVLO OSC IN Note 0.1 µA 100 kΩ Comp COMP – Latch Truth Table – 2.7V Clamp Note: During overtemperature, V driver is high-impedance. © 2005 Microchip Technology Inc. DS21896B-page 2...
  • Page 3 MCP1630/MCP1630V Functional Block Diagram – MCP1630V MCP1630V High-Speed PWM Overtemperature 0.1 µA UVLO OSC IN Note 0.1 µA 100 kΩ Comp COMP – Latch Truth Table – 2.7V Clamp Note: During overtemperature, V driver is high-impedance. © 2005 Microchip Technology Inc.
  • Page 4 +8V to +15V Input Voltage 4 NiMH Cells +5V Bias MCP1630 5.7V BATT N-channel COMP MOSFET OSC IN BATT +5V Bias PIC16LF818 PWM OUT MCP1700 3.0V SOT23 1/2 MCP6042 C™ To System 1/2 MCP6042 © 2005 Microchip Technology Inc. DS21896B-page 4...
  • Page 5 MCP1630/MCP1630V Typical Application Circuit - MCP1630V Bidirectional Power Converter/Battery Charger for 4-Series Cell Li-Ion Batteries 4-Cell Li-Ion Bidirectional Buck/Boost Battery Pack Battery Protection Boost Buck Buck Switches Switch Fuse Boost DC Bus Switch PS501 Voltage BATT – Battery SMBus Protection Sync.
  • Page 6: Electrical Characteristics

    0.8V and 2.0V with rise and fall times measured between 10% and 90% of maximum and minimum values. Not production tested. The reference input of the internal amplifier is capable of rail-to-rail operation. © 2005 Microchip Technology Inc. DS21896B-page 6...
  • Page 7: Temperature Specifications

    Thermal Package Resistances θ Thermal Resistance, 8L-DFN — 50.8 — °C/W Typical 4-layer board with two (2 mm x 3 mm) interconnecting vias θ Thermal Resistance, 8L-MSOP — — °C/W Typical 4-layer board © 2005 Microchip Technology Inc. DS21896B-page 7...
  • Page 8 = 67 pF LOAD = + 25°C = - 40°C Phase 1000000 10000000 Frequency (Hz) Input Voltage (V) FIGURE 2-3: Error Amplifier Frequency FIGURE 2-6: Error Amplifier Source Response. Current vs. Input Voltage. © 2005 Microchip Technology Inc. DS21896B-page 8...
  • Page 9 = - 40°C = + 25°C = - 40°C Input Voltage (V) Input Voltage (V) FIGURE 2-9: Current Sense to V FIGURE 2-12: EXT Output N-channel Delay vs. Input Voltage (MCP1630). vs. Input Voltage. DSON © 2005 Microchip Technology Inc. DS21896B-page 9...
  • Page 10 Input Voltage (V) Input Voltage (V) FIGURE 2-14: Error Amplifier Input Offset FIGURE 2-17: Current Sense to V Voltage vs. Input Voltage. Delay vs. Input Voltage (MCP1630V). = + 125°C = 1.2V CM IN -100 = + 25°C -150 = - 40°C...
  • Page 11 DFN/MSOP Name Function COMP Error Amplifier Output pin Error Amplifier Inverting Input Current Sense Input pin (MCP1630) or Voltage Ramp Input pin (MCP1630V) OSC IN Oscillator Input pin Circuit Ground pin External Driver Output pin Input Bias pin Reference Voltage Input pin Error Amplifier Output Pin (COMP) low.
  • Page 12: Detailed Description

    For Voltage mode or Average Current mode applica- tions that utilize a large signal ramp at the CS input, the Device Overview MCP1630V is used to provide more signal (2.7V typ.). The operation of the PWM does not change. The MCP1630 is comprised of a high-speed compara-...
  • Page 13: Undervoltage Lockout (Uvlo)

    150°C (typ.), with a hysteresis of typical hysteresis is 75 mV. Typically, the MCP1630 will 18°C. not start operating until the input voltage at V between 3.0V and 3.1V. © 2005 Microchip Technology Inc. DS21896B-page 13...
  • Page 14 Overtemperature 0.1 µA UVLO OSC IN Note 0.1 µA 100 kΩ Comp COMP – Latch Truth Table – 2.7V Clamp Note: During overtemperature, V driver is high-impedance. FIGURE 4-1: Cycle-by-Cycle Timing Diagram (MCP1630). © 2005 Microchip Technology Inc. DS21896B-page 14...
  • Page 15 MCP1630/MCP1630V MCP1630V High-Speed PWM Timing Diagram OSC IN COMP DRIVE Overtemperature 0.1 µA UVLO OSC IN DRIVE Note 0.1 µA 100 kΩ Comp COMP – Latch Truth Table – 2.7V Clamp Note: During overtemperature, V driver is high-impedance. FIGURE 4-2: Cycle-by-Cycle Timing Diagram (MCP1630V).
  • Page 16 In this example, a synchronous, bidirectional power converter example is shown using the The MCP1630/V high-speed PWM can be used for any MCP1630V. In this application, when the ac-dc input circuit topology and power-train application when power is present, the bidirectional power converter is combined with a microcontroller.
  • Page 17: Packaging Information

    In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information. © 2005 Microchip Technology Inc. DS21896B-page 17...
  • Page 18 5° 15° *Controlling Parameter Notes: Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed .010" (0.254mm) per side. JEDEC Equivalent: MO-187 Drawing No. C04-111 © 2005 Microchip Technology Inc. DS21896B-page 18...
  • Page 19 Package may have one or more exposed tie bars at ends. Pin 1 visual index feature may vary, but must be located within the hatched area. JEDEC equivalent: M0-229 Drawing No. C04-123, Revised 05-05-05 © 2005 Microchip Technology Inc. DS21896B-page 19...
  • Page 20 MCP1630/MCP1630V NOTES: © 2005 Microchip Technology Inc. DS21896B-page 20...
  • Page 21: Appendix A: Revision History

    The following is the list of modifications: Added MCP1630V device information throughout data sheet Added DFN package information throughout data sheet. Added Appendix A: Revision History. Revision A (June 2004) • Original Release of this Document. © 2005 Microchip Technology Inc. DS21896B-page 21...
  • Page 22 MCP1630/MCP1630V NOTES: © 2005 Microchip Technology Inc. DS21896B-page 22...
  • Page 23: Product Identification System

    8LD MSOP package. Package: MC *= Dual Flat, No Lead (2x3mm Body), 8-lead MCP1630V-E/MC: Extended Temperature, MS = Plastic MSOP, 8-lead 8LD DFN package. * For DFN samples, contact your Microchip Sales Office for availability. © 2005 Microchip Technology Inc. DS21896B-page 23...
  • Page 24 MCP1630/MCP1630V NOTES: © 2005 Microchip Technology Inc. DS21896B-page 24...
  • Page 25 Smart Serial, SmartTel, Total Endurance and WiperLock are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. All other trademarks mentioned herein are property of their respective companies.
  • Page 26: Sales And Service

    Tel: 765-864-8360 Fax: 886-3-572-6459 Fax: 765-864-8387 Los Angeles Mission Viejo, CA Tel: 949-462-9523 Fax: 949-462-9608 San Jose Mountain View, CA Tel: 650-215-1444 Fax: 650-961-0286 Toronto Mississauga, Ontario, Canada Tel: 905-673-0699 Fax: 905-673-6509 04/20/05 © 2005 Microchip Technology Inc. DS21896B-page 26...
  • Page 27 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Microchip MCP1630-E/MC MCP1630V-E/MC MCP1630RD-LIC1 MCP1630RD-LIC2 MCP1630T-E/MC MCP1630V-E/MS MCP1630VT-E/MC MCP1630VT-E/MS MCP1630RD-NMC1...
