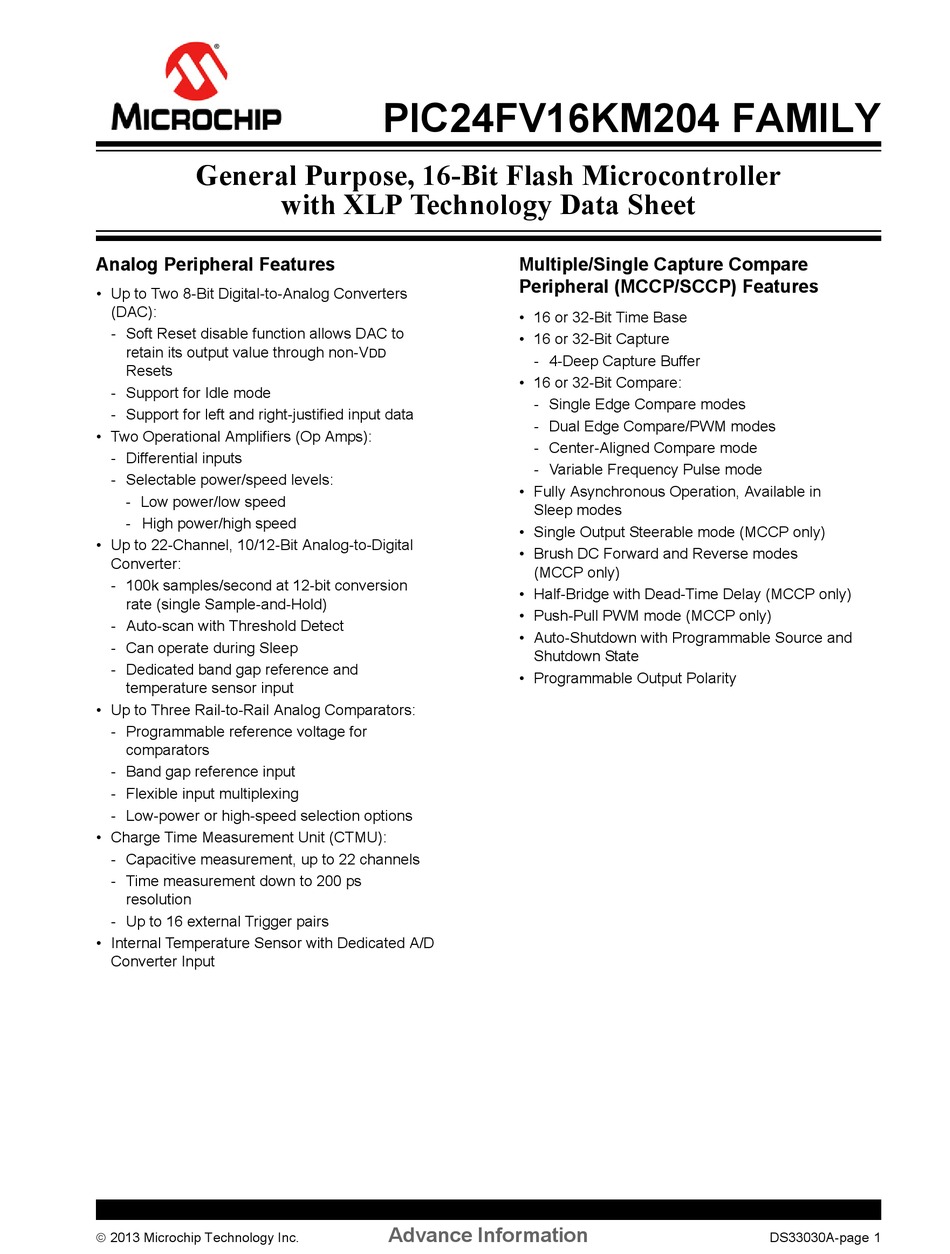

General Purpose, 16-Bit Flash Microcontroller
Analog Peripheral Features
• Up to Two 8-Bit Digital-to-Analog Converters
(DAC):
- Soft Reset disable function allows DAC to
retain its output value through non-V
Resets
- Support for Idle mode
- Support for left and right-justified input data
• Two Operational Amplifiers (Op Amps):
- Differential inputs
- Selectable power/speed levels:
- Low power/low speed
- High power/high speed
• Up to 22-Channel, 10/12-Bit Analog-to-Digital
Converter:
- 100k samples/second at 12-bit conversion
rate (single Sample-and-Hold)
- Auto-scan with Threshold Detect
- Can operate during Sleep
- Dedicated band gap reference and
temperature sensor input
• Up to Three Rail-to-Rail Analog Comparators:
- Programmable reference voltage for
comparators
- Band gap reference input
- Flexible input multiplexing
- Low-power or high-speed selection options
• Charge Time Measurement Unit (CTMU):
- Capacitive measurement, up to 22 channels
- Time measurement down to 200 ps
resolution
- Up to 16 external Trigger pairs
• Internal Temperature Sensor with Dedicated A/D
Converter Input
 2013 Microchip Technology Inc.
PIC24FV16KM204 FAMILY
with XLP Technology Data Sheet
DD
Advance Information
Multiple/Single Capture Compare
Peripheral (MCCP/SCCP) Features
• 16 or 32-Bit Time Base
• 16 or 32-Bit Capture
- 4-Deep Capture Buffer
• 16 or 32-Bit Compare:
- Single Edge Compare modes
- Dual Edge Compare/PWM modes
- Center-Aligned Compare mode
- Variable Frequency Pulse mode
• Fully Asynchronous Operation, Available in
Sleep modes
• Single Output Steerable mode (MCCP only)
• Brush DC Forward and Reverse modes
(MCCP only)
• Half-Bridge with Dead-Time Delay (MCCP only)
• Push-Pull PWM mode (MCCP only)
• Auto-Shutdown with Programmable Source and
Shutdown State
• Programmable Output Polarity
DS33030A-page 1
