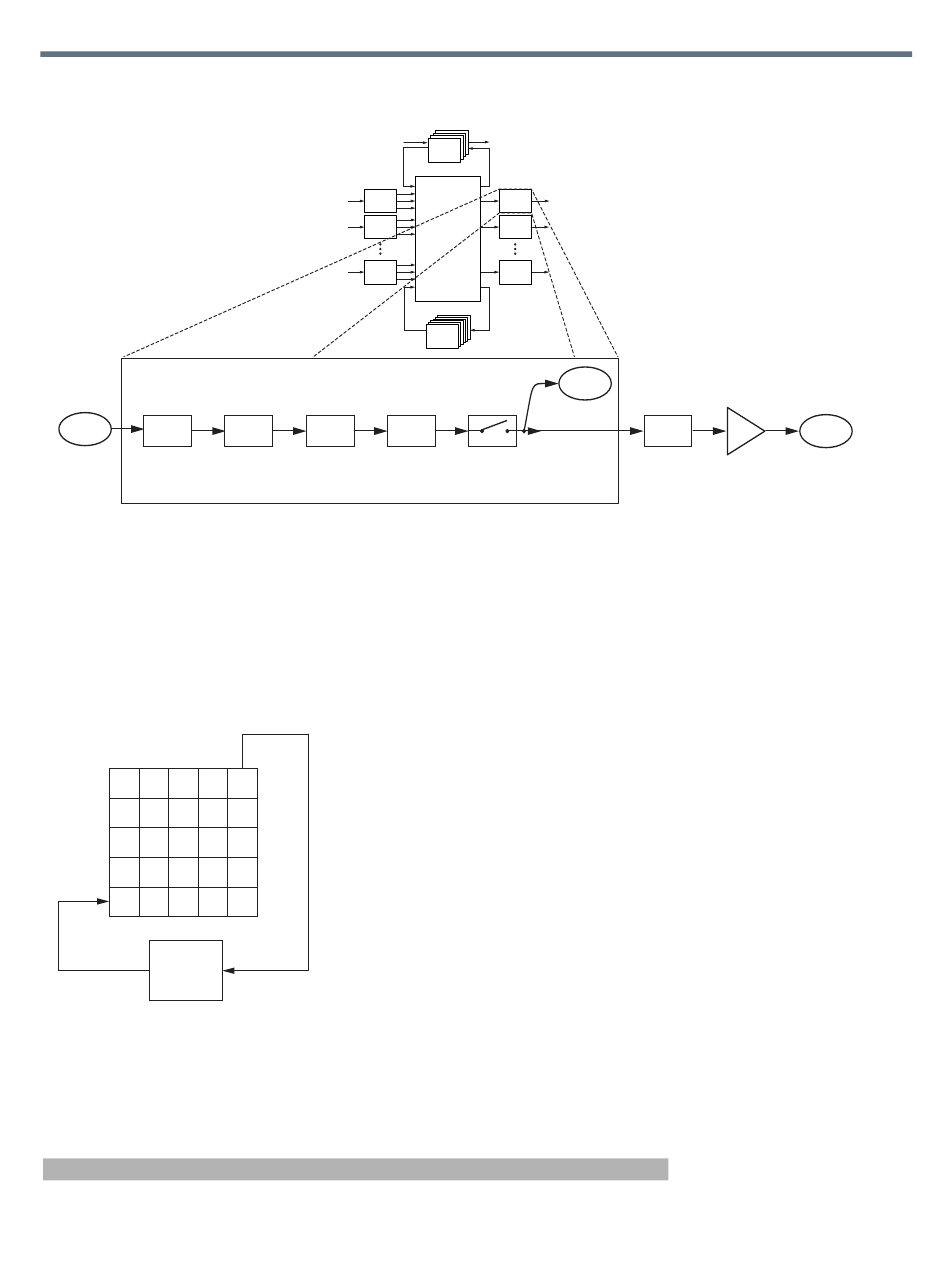

SoundStructure C-Series Output Signal Processing
Output Processing
Output from
Dynamics
Matrix
Processing

Processing C-Series Submixes

Submixes are outputs from the matrix that can be routed directly back to the input of the matrix as shown in
the following figure.
SoundStructure C-Series Submix Signal Matrix
Matrix
Output
Matrix
Input
Submix
Processing
As an output of the matrix, any combination of input signals can be mixed together to create the output
submix signal. This output signal can be processed with the submix processing and the processed signal is
available as an input to the matrix. Microphones, remote audio sources, or other signals are typically sent
to a submix channel and the resulting submix signal is used as a single input in the matrix.
SoundStructure C-Series Submix Processing
Submix Processing
Up to 8th order highpass and lowpass filters
Polycom, Inc.
Input
1
Processing
Input
2
Processing
Input
N
Processing
Parametric
or Graphic Fader Delay
Equalization
SubMix
Signal
Telco
Telco
Telco
Processing
Telco
Processing
Processing
Processing
Output
1
Processing
Output
2
Processing
Matrix
Output
N
Processing
Submix SubMix
Processing
Processsing
AEC
Reference
Mute
D/A Analog Output
Converter Gain Signal
