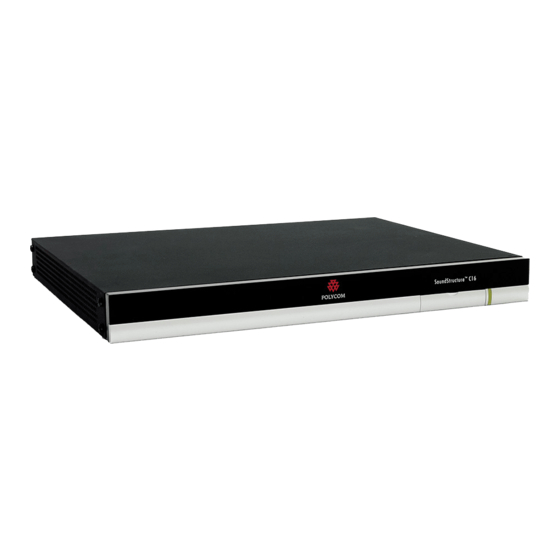

Polycom SoundStructure C16 Hardware Installation Manual
Voip interface
Hide thumbs
Also See for SoundStructure C16:
- Design manual (737 pages) ,
- Hardware installation manual (66 pages) ,
- Application note (13 pages)
Related Manuals for Polycom SoundStructure C16
Summary of Contents for Polycom SoundStructure C16
- Page 1 HARDWARE INSTALLATION GUIDE November 2016 | 3725-42494-001A ® ® Polycom SoundStructure VoIP Interface...
- Page 2 Polycom up to three (3) years after the distribution date of the applicable product or software at a charge not greater than the cost to Polycom of shipping or distributing the software to you. To receive software information, as well as the open source software code used in this product, contact Polycom by email at OpenSourceVoice@polycom.com.
- Page 3 For information on how to terminate connections to the SoundStructure products, see the SoundStructure Hardware Installation guide. For information on how to configure a SoundStructure system, including the SoundStructure VoIP Interface, see the Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12.
- Page 4 Polycom UC Software 4.0.1 or later in order to use the SoundStructure VoIP Interface. The following procedure gives you a quick way to update the SoundStructure system firmware. For complete update information, see Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12. To update the SoundStructure system firmware: 1 Download the latest version of SoundStructure Studio (1.7 or later) and firmware (1.5 or later) on the...
- Page 5 Before installing the SoundStructure VoIP Interface, refer to the Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12 for help preparing the SoundStructure device in the following situations: ● If you are upgrading a SoundStructure project from a SoundStructure TEL1 or TEL2 telephony card to a SoundStructure VoIP Interface card, see the section “Upgrading a Project to the SoundStructure...
- Page 6 Interface with your call management platform. See the Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12 for details on how to create a new project or upgrade an existing project to use for integrating the SoundStructure VoIP Interface into a typical call management platform.
- Page 7 ● When the SoundStructure VoIP Interface boots up, the status LED will cycle with a pattern of 1 second on and 1 seconds off. ● Once the SoundStructure VoIP Interface has finished booting, the system is ready to be configured and controlled, and the LED will be solid green. Polycom, Inc.
- Page 8 For more information, refer to the Polycom UC Software Administrator Guide or Release Notes Polycom Voice Support for the UC Software version running on your SoundStructure VoIP Interface. See the Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12 for additional information on configuring the SoundStructure VoIP Interface. Polycom, Inc.
- Page 9 Status LED is not lit on the Ensure power is connected to the SoundStructure VoIP Interface SoundStructure system. Ensure the SoundStructure VoIP Interface is securely plugged into the rear panel slot. Ensure SoundStructure device is running firmware 1.5.0 or later. Polycom, Inc.
- Page 10 Web Configuration Utility. Select the Diagnostics menu and select View and Download logs. Check for any error messages, such as connecting to the Provisioning server. Regulatory Notice And Warranty See the SoundStructure Hardware Installation guide for Regulatory and Warranty information. Polycom, Inc.
- Page 11 You can receive the open source software from Polycom up to three (3) years after the distribution date of the applicable product or software at a charge not greater than the cost to Polycom of shipping or distributing the software to you.
