Integrating the
Polycom CX5000
with Polycom Video
Systems
1725-31222-001 Rev. A
April 2009
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Polycom CX5000

Summary of Contents for Polycom CX5000

  • Page 1 Integrating the Polycom CX5000 with Polycom Video Systems 1725-31222-001 Rev. A April 2009...

  • Page 2: Table Of Contents

    Scenario 6: Multiple Office Communicator clients and legacy video endpoints using RMX .... 16  Scenario 7: Sharing Live Meeting 2007 Content with HDX video endpoints  .......... 17  Scenario 8 – Office Communicator transfer to CX700 ................ 18  ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.

  • Page 3: Introduction

    Legacy video protocol, supported by any polycom endpoint H.323 ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.

  • Page 4: Achieving Integration: Additional References

    PC with appropriate applications to enable it to function and communicate with the rest of the world. ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.
  • Page 5 ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.

  • Page 6: Why Use The Polycom Cx5000

    Live Meeting When the CX5000 is used with Live Meeting 2007, it is plugged into a PC that is running a Live Meeting client console. Live Meeting is an online meeting space that allows all participants to share audio, video and content.

  • Page 7: Basic Integration Of The Polycom Cx5000 With Polycom Systems

    Basic Integration of the Polycom CX5000 with Polycom systems The key thing to understand about the CX5000 is that it is simply a USB device. It is not directly integrating with anything other than its locally attached PC. The question of integrating the CX5000 is better considered by understanding how Office Communications Server and various Polycom systems can be integrated.
  • Page 8 The conversation window appears exactly as it would if the far end was using a simple webcam. The only difference is that if the far end is using a CX5000, the video will always be focused on the active speaker, who will be centered in the video window.

  • Page 9: Polycom Cx5000 In A Polycom Video Environment

    Polycom CX5000 in a Polycom Video Environment Overview If a CX5000 is used with an Office Communicator client, it is possible to achieve integration with a variety of Polycom video systems. This is accomplished by configuring the Polycom and Office Communications Server environments to integrate with one another.

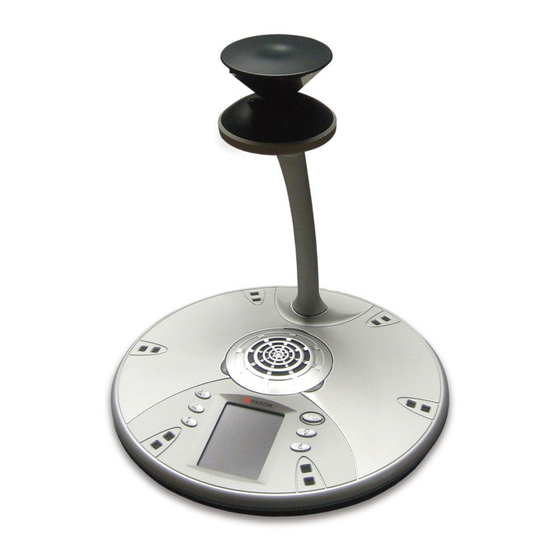

  • Page 10 Polycom CX5000 Unified Conference Stations (connected via USB to a client PC) ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.

  • Page 11: Integration Scenarios

    The RMX2000 functions as a gateway between SIP and legacy protocols such as H.323, ISDN and PSTN ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.

  • Page 12: Scenario 1: Remote Office Communicator To Hdx

    Scenario 1: Remote Office Communicator to HDX Scenario 1—Joe is working from a branch office and needs to connect to a Polycom HDX Room System in his Corporate HQ Joe decides to use his Office Communicator client and the Polycom CX5000 for this purpose.

  • Page 13: Scenario 3: Hdx To Co-Registered Office Communicator And Hdx 4000

    Note that Joe can use either a webcam for himself or a CX5000 if there are multiple people at his end. ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc.

  • Page 14: Scenario 4 - Multi-Point Call Using Hdx Mp Mcu

    C). On the HDX system, the internal MCU is enabled and a multi-point call is established showing all of the participants in a call. If any of the participants are in a room with a CX5000, the view from that room will be the active speaker view.

  • Page 15: Scenario 5: Multiple Office Communicator Clients And Hdx Using Rmx

    For any Office Communicator participants using a CX5000, the active speaker view will be sent. ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.

  • Page 16: Scenario 6: Multiple Office Communicator Clients And Legacy Video Endpoints Using Rmx

    Continuous presence allows all the participants in the call to see each other. ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.

  • Page 17: Scenario 7: Sharing Live Meeting 2007 Content With Hdx Video Endpoints

    PC connected to the Live Meeting session. ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.

  • Page 18: Scenario 8 - Office Communicator Transfer To Cx700

    When Jeff answers, Joe and Jeff are connected, and Larry may leave the call. ©2009 Polycom, Inc. All rights reserved. Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. All other trademarks are the property of their respective owners. Information is subject to change without notice.
