Similarly, to adjust the minimum gain, adjust the main slider to the desired minimum level and them move

the lower triangle to that location. The steps to set the maximum fader gain to +10 dB are shown in the

following figure.

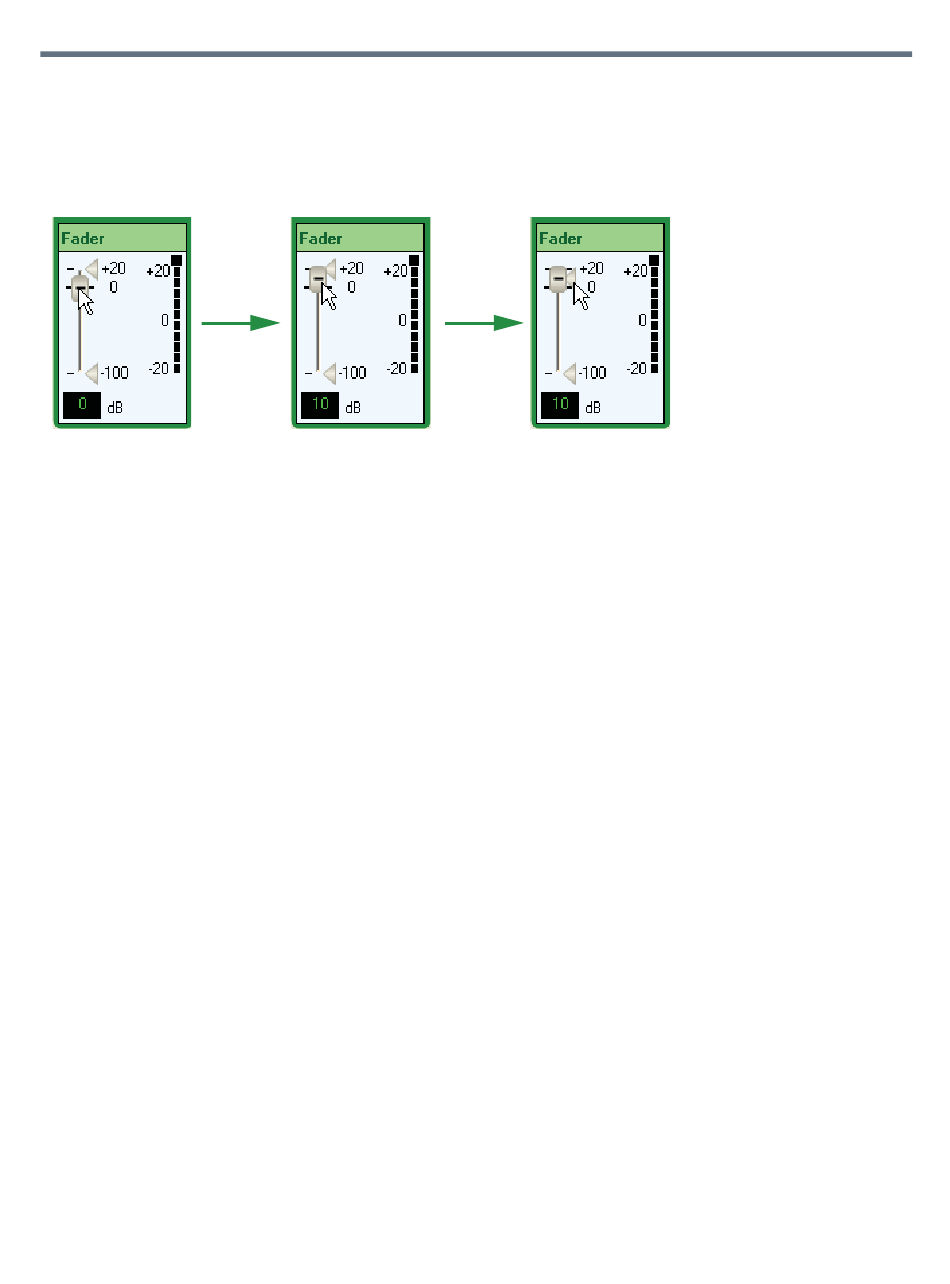

Adjusting the Maximum Fader Gain

Creating Advanced Applications

for an application where the user minimum and maximum faders have

It is recommended that any user adjustment of gain control for input signals control the input fader. This

allows the analog input gain (not the fader) to be used for calibration of the input device to the

SoundStructure device to ensure the input reaches the 0 dBu nominal signal level of the SoundStructure

device. The fader can then be used to make additional adjustments. This ensures when the fader is set back

to 0 dB that the analog input gain is still properly calibrated for the connected device.

The signal level meter next to the gain fader shows the signal activity after all the input processing is applied.

If an input is muted, the signal level meter for the fader shows no signal activity.

Installing SoundStructure Devices

for additional information on setting signal levels.

Defining a Signal Generator

Each SoundStructure device can have a single signal generator defined which can generate white noise,

pink noise, a sine wave, and a sine sweep. By default, each project has a signal generator with pink noise

at a level of -30dB added to the project.
