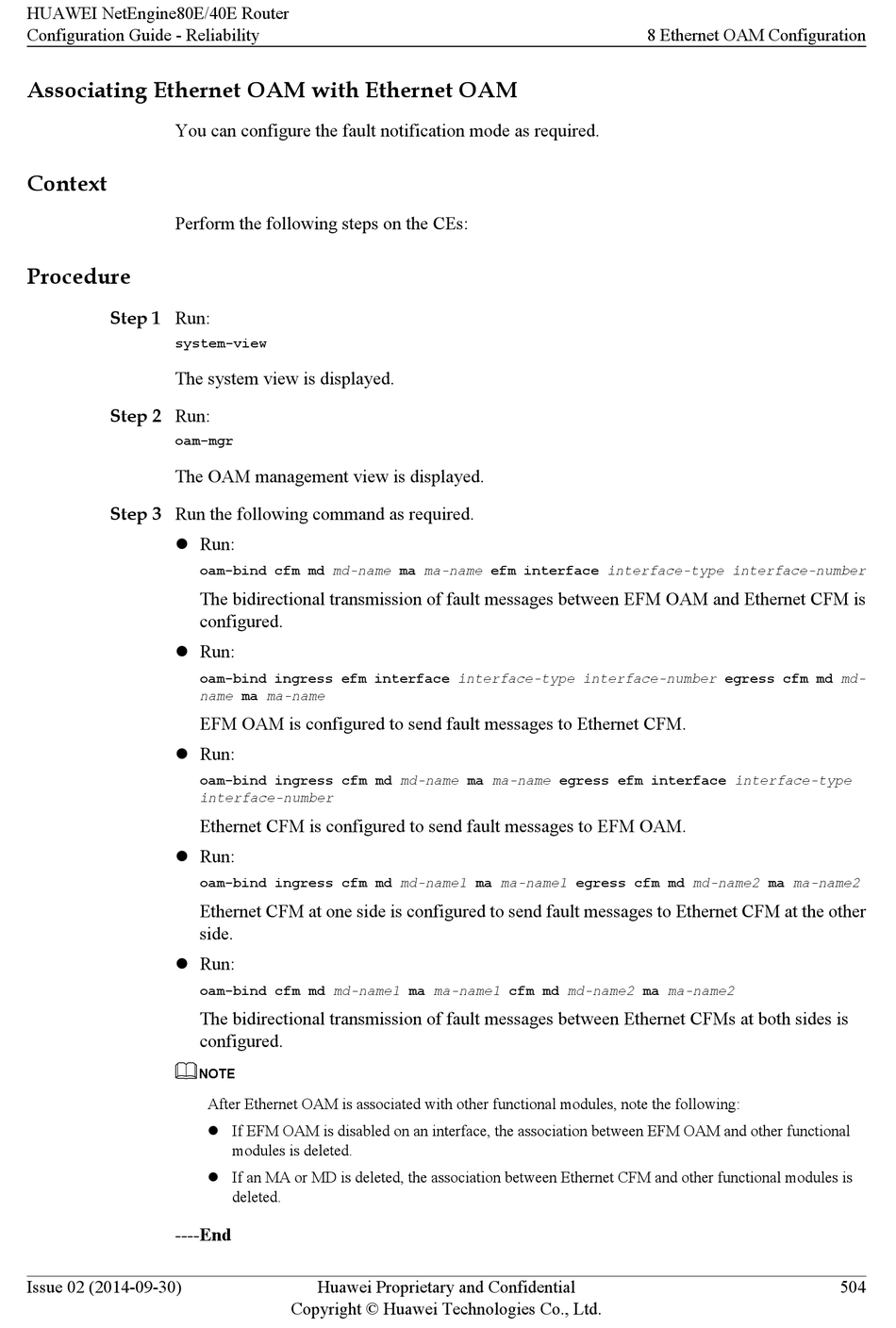

Huawei NetEngine80E Configuration Manual - Reliability page 521

HUAWEI NetEngine80E/40E Router
Configuration Guide - Reliability
Associating Ethernet OAM with Ethernet OAM
You can configure the fault notification mode as required.
Context
Perform the following steps on the CEs:
Procedure
Step 1 Run:
system-view
The system view is displayed.
Step 2 Run:
oam-mgr
The OAM management view is displayed.
Step 3 Run the following command as required.
l Run:
l Run:
l Run:
l Run:
l Run:
----End
Issue 02 (2014-09-30)
oam-bind cfm md md-name ma ma-name efm interface interface-type interface-number
The bidirectional transmission of fault messages between EFM OAM and Ethernet CFM is
configured.
oam-bind ingress efm interface interface-type interface-number egress cfm md md-
name ma ma-name
EFM OAM is configured to send fault messages to Ethernet CFM.
oam-bind ingress cfm md md-name ma ma-name egress efm interface interface-type
interface-number
Ethernet CFM is configured to send fault messages to EFM OAM.
oam-bind ingress cfm md md-name1 ma ma-name1 egress cfm md md-name2 ma ma-name2
Ethernet CFM at one side is configured to send fault messages to Ethernet CFM at the other
side.
oam-bind cfm md md-name1 ma ma-name1 cfm md md-name2 ma ma-name2
The bidirectional transmission of fault messages between Ethernet CFMs at both sides is
configured.
NOTE
After Ethernet OAM is associated with other functional modules, note the following:
l If EFM OAM is disabled on an interface, the association between EFM OAM and other functional
modules is deleted.
l If an MA or MD is deleted, the association between Ethernet CFM and other functional modules is
deleted.
