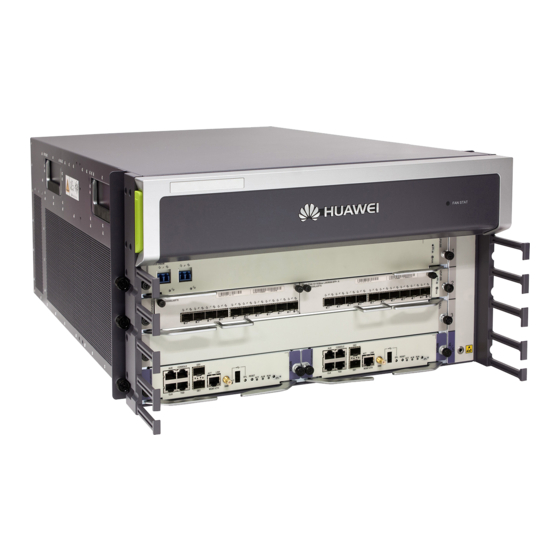

HUAWEI NetEngine40E Universal Service Router
Hardware Description
Figure E-7 Power distribution mode 1 for the NE40E-X8
4. Scenario Where a Huawei NE40E-X8 Is Equipped with 4 PEM Modules
PEM-A1 and PEM-A2 are connected to A1-1 and A1-2 in the power distribution box.
PEM-B1 and PEM-B2 are connected to B1-1 and B1-2 in the power distribution box.
Issue 01 (2015-08-30)
NOTE
When the power distribution box powers two NE40E-X8s at the same time, the A2-1, A2-2, B2-1, and
B2-2 are connected to the PEM modules on the second NE40E-X8.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
E DPD300-4-12 Power Distribution Box, Dual-Two Inputs
735

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetEngine40E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Huawei NetEngine40E

Summary of Contents for Huawei NetEngine40E

  • Page 1 E DPD300-4-12 Power Distribution Box, Dual-Two Inputs Figure E-7 Power distribution mode 1 for the NE40E-X8 4. Scenario Where a Huawei NE40E-X8 Is Equipped with 4 PEM Modules PEM-A1 and PEM-A2 are connected to A1-1 and A1-2 in the power distribution box.
  • Page 2 E DPD300-4-12 Power Distribution Box, Dual-Two Inputs Figure E-8 Power distribution mode 2 for the NE40E-X8 5. Scenario Where a Huawei NE40E-X3 Is Equipped with 2 PWR Modules PWR 1 is connected to any power output in OUTPUT A area of the power distribution box.

  • Page 3: Related Tools

    HUAWEI NetEngine40E Universal Service Router Hardware Description E DPD300-4-12 Power Distribution Box, Dual-Two Inputs E.3 Installing the Power Distribution Box into a Cabinet This section describes how to install the power distribution box into a cabinet and install cables. NOTE l An N68E whose cabinet doors and rear boards are all torn down is used.

  • Page 4: Operation Procedure

    HUAWEI NetEngine40E Universal Service Router Hardware Description E DPD300-4-12 Power Distribution Box, Dual-Two Inputs Material Description Quantity Output Power Power Cable,450/750V,H07Z- terminal output K UL3386,16mm^2,blue,Low of the cable Smoke Zero Halogen Cable power (per meter) distributi Power Cable,450/750V,H07Z- on box...
  • Page 5 HUAWEI NetEngine40E Universal Service Router Hardware Description E DPD300-4-12 Power Distribution Box, Dual-Two Inputs Figure E-10 Installing slide rails and captive nuts Step 3: Temporarily tear down the protective plates for connecting terminals, as shown in Figure E-11. Issue 01 (2015-08-30) Huawei Proprietary and Confidential Copyright ©...
  • Page 6 HUAWEI NetEngine40E Universal Service Router Hardware Description E DPD300-4-12 Power Distribution Box, Dual-Two Inputs Figure E-11 Tearing down the protective plate for connecting terminals Step 4: Install the power distribution box into the cabinet. Push the power distribution box into the cabinet along the slide rails, and use four screws to...
  • Page 7 HUAWEI NetEngine40E Universal Service Router Hardware Description E DPD300-4-12 Power Distribution Box, Dual-Two Inputs Figure E-13 Installing grounding cables Step 6: Install power cables. Install power input cables, as shown in (1) and (2) of Figure E-14. Install power output cables, as shown in (3) and (4) of Figure E-14.

  • Page 8: Circuit Breaker Maintenance

    HUAWEI NetEngine40E Universal Service Router Hardware Description E DPD300-4-12 Power Distribution Box, Dual-Two Inputs NOTE l Pass the power input cables through the holes on the cabinet top and connect them to the power distribution cabinet. l Lay out power output cables along the two mounting bars at the back of the cabinet and connect these cables to devices.
  • Page 9 HUAWEI NetEngine40E Universal Service Router Hardware Description E DPD300-4-12 Power Distribution Box, Dual-Two Inputs DANGER l Before maintenance, power off the power distribution box and remove all metal ornaments, such as watches and rings from hands and wrists. l Make sure that the new circuit breakers are switched off before being installed.
  • Page 10 HUAWEI NetEngine40E Universal Service Router Hardware Description E DPD300-4-12 Power Distribution Box, Dual-Two Inputs Figure E-16 Installing an air breaker Issue 01 (2015-08-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
