1.1.4 ARP Process

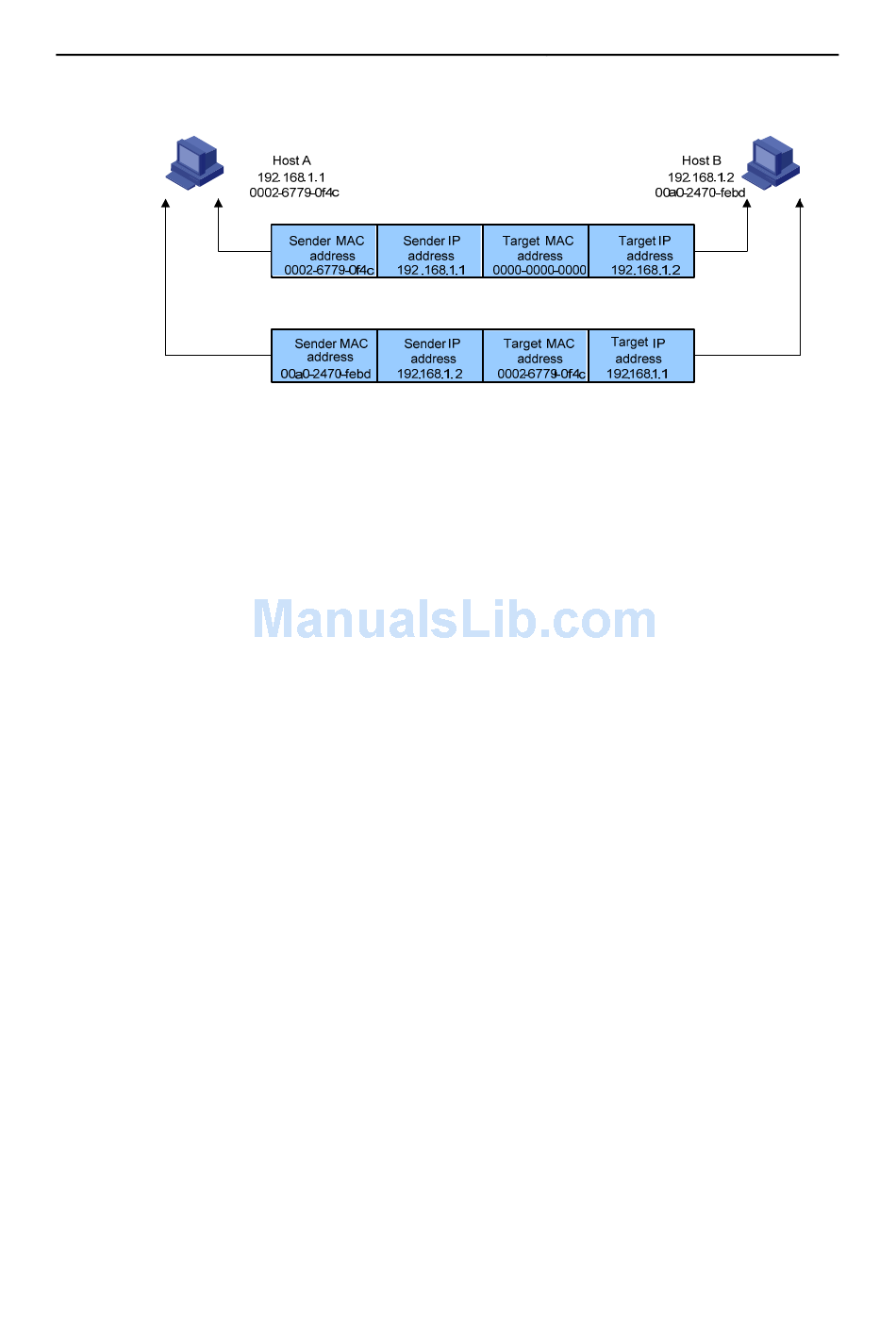

Figure 1-2 ARP process
Suppose that Host A and Host B are on the same subnet and that Host A sends a
message to Host B. The resolution process is as follows:
1) Host A looks in its ARP mapping table to see whether there is an ARP entry for
Host B. If Host A finds it, Host A uses the MAC address in the entry to encapsulate
the IP packet into a data link layer frame and sends the frame to Host B.
2) If Host A finds no entry for Host B, Host A buffers the packet and broadcasts an
ARP request, in which the source IP address and source MAC address are
respectively the IP address and MAC address of Host A and the destination IP
address and MAC address are respectively the IP address of Host B and an
all-zero MAC address. Because the ARP request is sent in broadcast mode, all
hosts on this subnet can receive the request, but only the requested host (namely,
Host B) will process the request.
3) Host B compares its own IP address with the destination IP address in the ARP
request. If they are the same, Host B saves the source IP address and source
MAC address into its ARP mapping table, encapsulates its MAC address into an
ARP reply, and unicasts the reply to Host A.
4) After receiving the ARP reply, Host A adds the MAC address of Host B into its ARP
mapping table for subsequent packet forwarding. Meanwhile, Host A
encapsulates the IP packet and sends it out.
Usually ARP dynamically implements and automatically seeks mappings from IP
addresses to MAC addresses, without manual intervention.

1.1.5 Introduction to ARP Attack Detection

I. Man-in-the-middle attack
According to the ARP design, after receiving an ARP response, a host adds the
IP-to-MAC mapping of the sender into its ARP mapping table even if the MAC address
is not the real one. This can reduce the ARP traffic in the network, but it also makes
