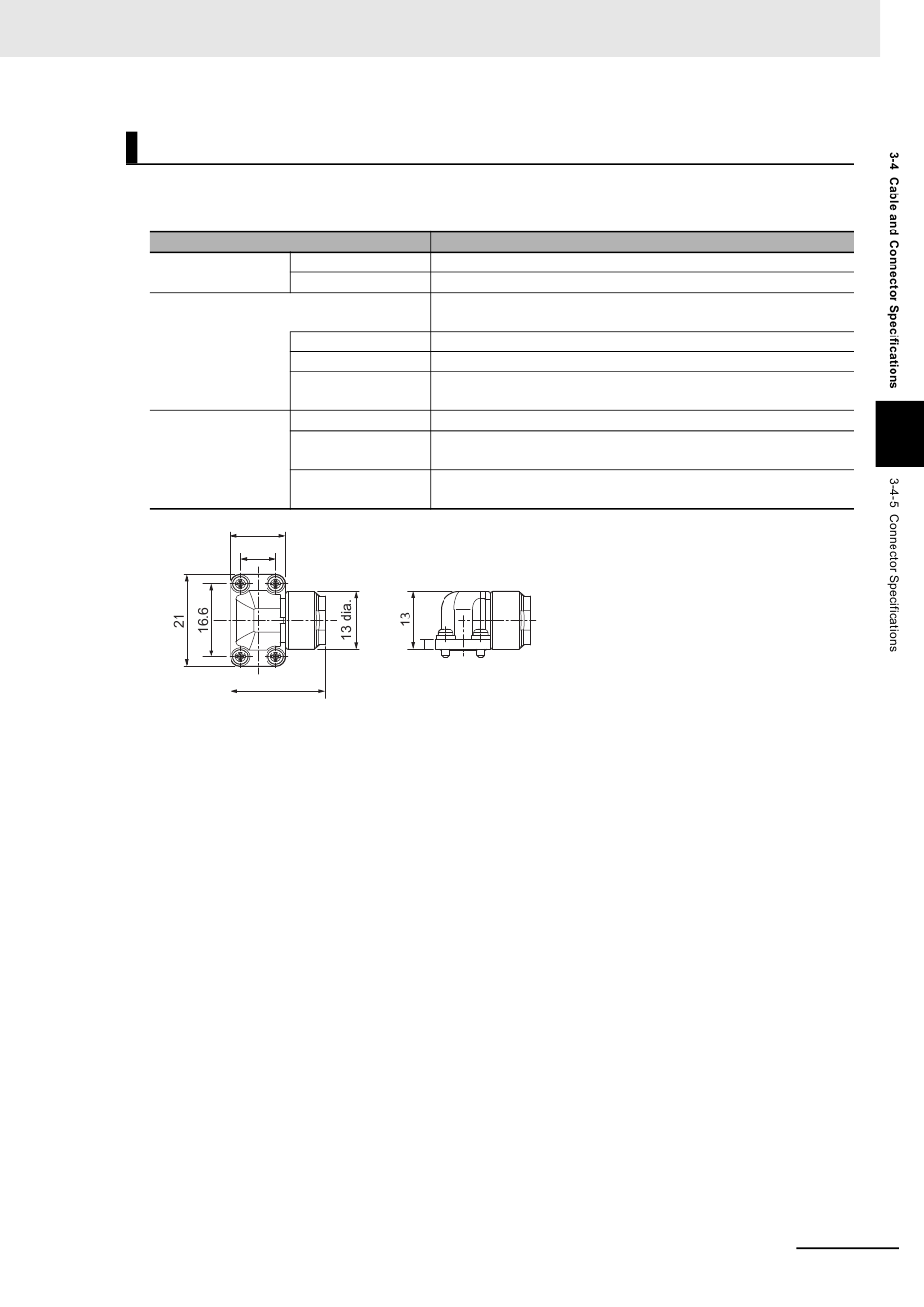

Brake Cable Connector
This connector is used for brake cables.
Use it when you prepare a brake cable by yourself.
Applicable Servo-
motor
Connector
Applicable cable
12.5
8
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User's Manual (I586)
Item
100 V 3,000-r/min Servomotors of 50 to 400 W
200 V 3,000-r/min Servomotors of 50 to 750 W
This is a crimping-type connector. For required tools, contact the
manufacturers directly.
Angle plug JN6FR02SM1 (Japan Aviation Electronics)
Socket contact LY10-C1-A1-10000 (Japan Aviation Electronics)
Angle plug and R88A-CN111B (OMRON)
socket contact
Applicable wire AWG 22 to 26
Insulating cover 0.8 to 1.3 mm dia.
outer diameter
Outer diameter of 4.5 to 5.5 mm dia.
sheath
21.5
