Basic timers (TIM6 and TIM7)

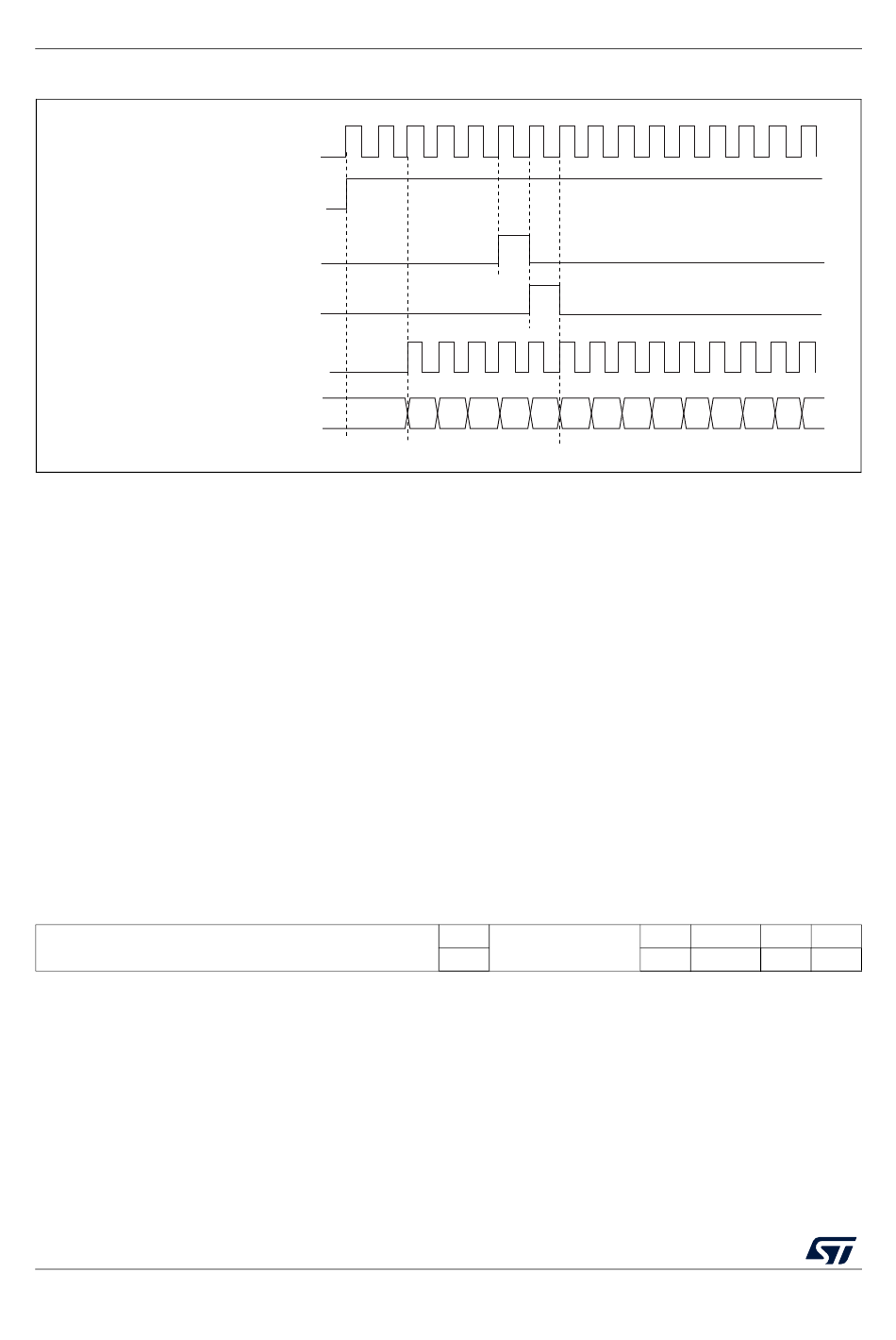

Figure 191. Control circuit in normal mode, internal clock divided by 1

CEN=CNT_EN
Counter clock = CK_CNT = CK_PSC
Counter register
16.3.4

Debug mode

When the microcontroller enters the debug mode (Cortex
counter either continues to work normally or stops, depending on the DBG_TIMx_STOP
configuration bit in the DBG module. For more details, refer to
support for timers, watchdog, bxCAN and I
16.4

TIM6 and TIM7 registers

Refer to
The peripheral registers have to be written by half-words (16 bits) or words (32 bits). Read
accesses can be done by bytes (8 bits), half-words (16 bits) or words (32 bits).
16.4.1

TIM6 and TIM7 control register 1 (TIMx_CR1)

Address offset: 0x00
Reset value: 0x0000
15 14 13
Bits 15:8 Reserved, must be kept at reset value.
Bit 7 ARPE: Auto-reload preload enable
Bits 6:4 Reserved, must be kept at reset value.
Bit 3 OPM: One-pulse mode
