26.3.1

SDIO adapter

Figure 290
To APB2
interface
The SDIO adapter is a multimedia/secure digital memory card bus master that provides an
interface to a multimedia card stack or to a secure digital memory card. It consists of five
subunits:
•
Adapter register block
•
Control unit
•
Command path
•
Data path
•
Data FIFO
Note: The adapter registers and FIFO use the APB2 bus clock domain (PCLK2). The control unit,
command path and data path use the SDIO adapter clock domain (SDIOCLK).
Adapter register block
The adapter register block contains all system registers. This block also generates the
signals that clear the static flags in the multimedia card. The clear signals are generated
when 1 is written into the corresponding bit location in the SDIO Clear register.

Table 103. SDIO I/O definitions

Direction
MultiMediaCard/SD/SDIO card clock. This pin is the clock from
Output
host to card.
MultiMediaCard/SD/SDIO card command. This pin is the
Bidirectional
bidirectional command/response signal.
MultiMediaCard/SD/SDIO card data. These pins are the
Bidirectional
bidirectional databus.
shows a simplified block diagram of an SDIO adapter.

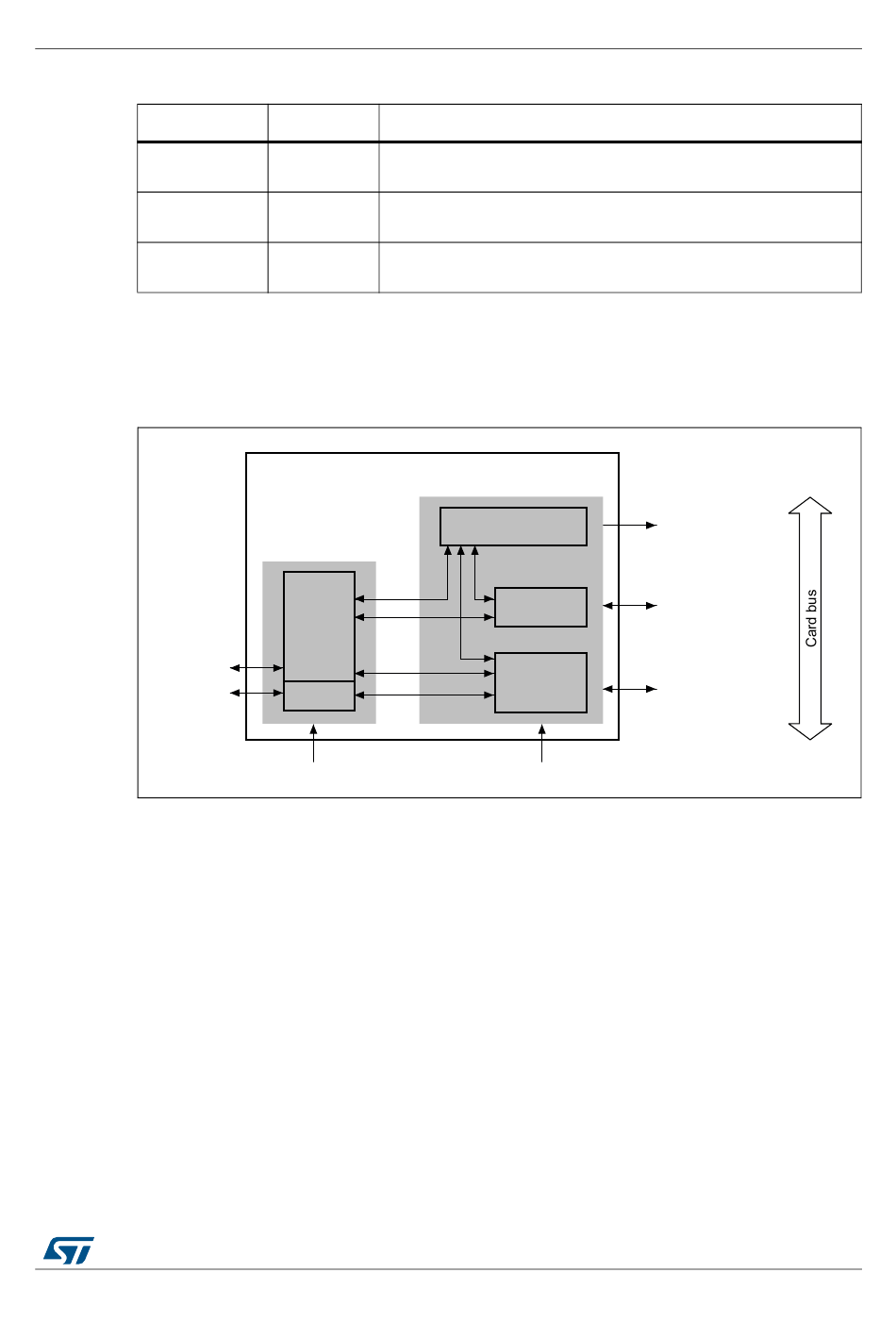

Figure 290. SDIO adapter

SDMMC adapter
Adapter
registers
FIFO
PCLK2
RM0033 Rev 9
Secure digital input/output interface (SDIO)
Description
Control unit
Command
path
Data path
SDMMCCLK
SDMMC_CK
SDMMC_CMD
SDMMC_D[7:0]
ai15899b
739/1381
