RM0033
CRYPEN
OUTRIS
OUTIM
19.5

CRYP DMA interface

The cryptographic processor provides an interface to connect to the DMA controller. The
DMA operation is controlled through the CRYP DMA control register, CRYP_DMACR.
The burst and single transfer request signals are not mutually exclusive. They can both be
asserted at the same time. For example, when there are 6 words available in the OUT FIFO,
the burst transfer request and the single transfer request are asserted. After a burst transfer
of 4 words, the single transfer request only is asserted to transfer the last 2 available words.
This is useful for situations where the number of words left to be received in the stream is
less than a burst.
Each request signal remains asserted until the relevant DMA clear signal is asserted. After
the request clear signal is deasserted, a request signal can become active again, depending
on the above described conditions. All request signals are deasserted if the CRYP
peripheral is disabled or the DMA enable bit is cleared (DIEN bit for the IN FIFO and DOEN
bit for the OUT FIFO in the CRYP_DMACR register).
Note: The DMA controller must be configured to perform burst of 4 words or less. Otherwise some
data could be lost.
In order to let the DMA controller empty the OUT FIFO before filling up the IN FIFO, the
OUTDMA channel should have a higher priority than the INDMA channel.
19.6

CRYP registers

The cryptographic core is associated with several control and status registers, eight key
registers and four initialization vectors registers.
19.6.1

CRYP control register (CRYP_CR)

Address offset: 0x00
Reset value: 0x0000 0000
31 30 29
15 14 13
CRYPEN FFLUSH
rw w

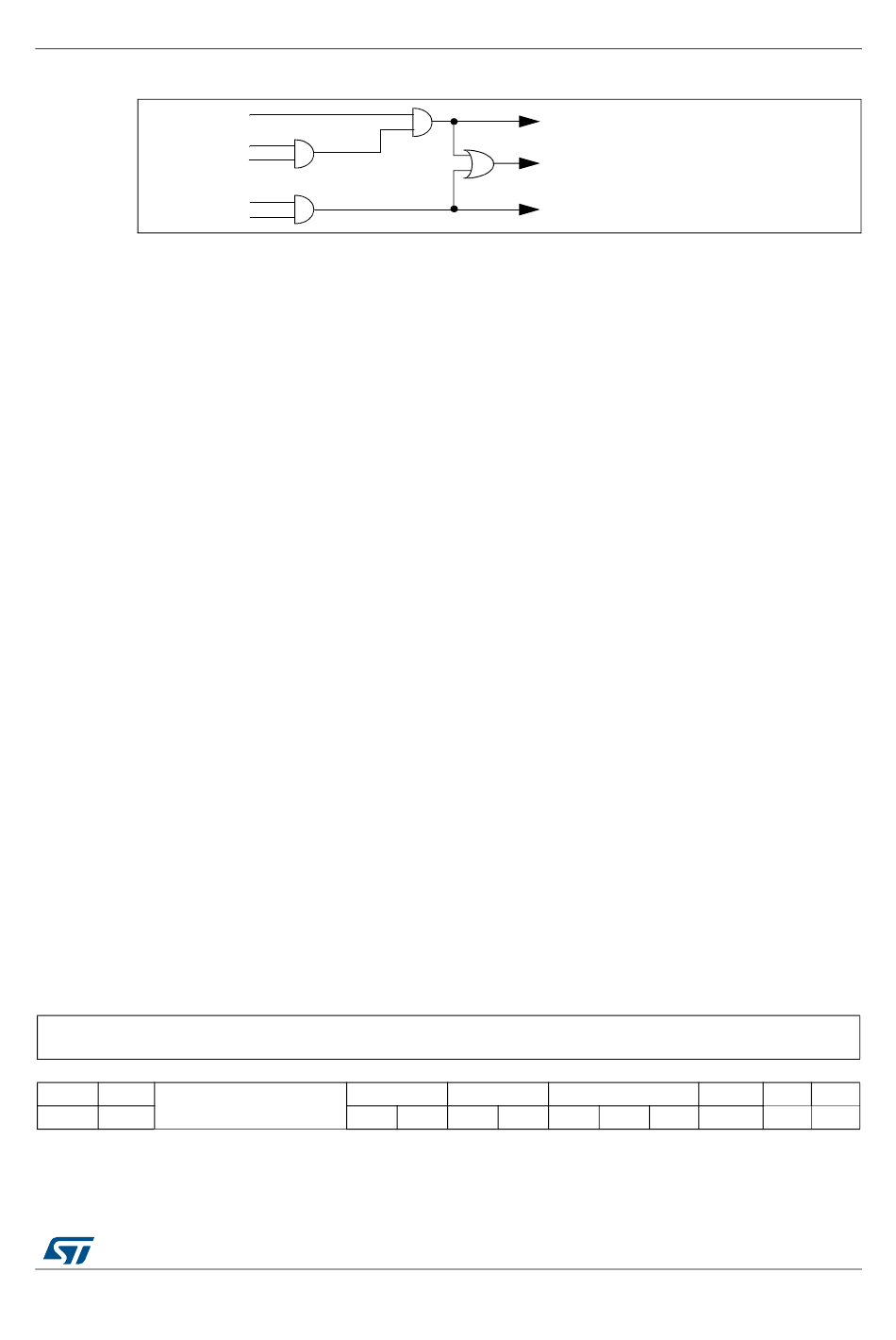

Figure 209. CRYP interrupt mapping diagram

INRIS INMIS
INIM
OUTMIS
28 27 26 25
12 11 10 9
KEYSIZE
Reserved
rw
IN FIFO Interrupt - INMIS
Global Interrupt
OUT FIFO Interrupt - OUTMIS
24 23 22
Reserved
8 7 6
DATATYPE
rw rw rw
RM0033 Rev 9
Cryptographic processor (CRYP)
21 20 19 18
5 4 3 2
ALGOMODE[2:0] ALGODIR
rw rw rw rw
ai16077
17 16
1 0
Res. Res.
531/1381
543
