Serial peripheral interface (SPI)

1. These timings are shown with the LSBFIRST bit reset in the SPI_CR1 register.

Data frame format

Data can be shifted out either MSB-first or LSB-first depending on the value of the

LSBFIRST bit in the SPI_CR1 register.

Each data frame is 8 or 16 bits long depending on the size of the data programmed using

the DFF bit in the SPI_CR1 register. The selected data frame format is applicable for

transmission and/or reception.

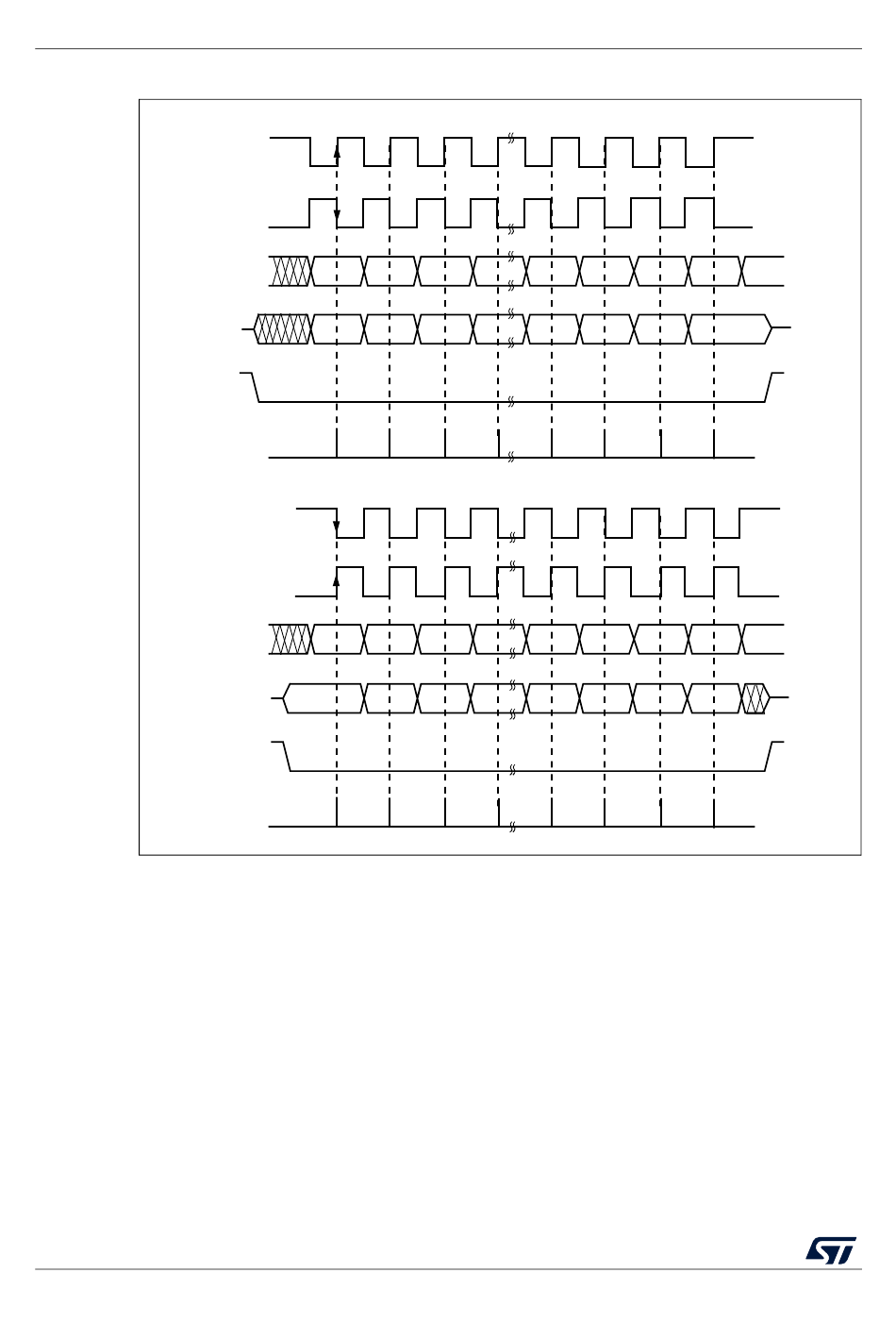

Figure 250. Data clock timing diagram

Capture strobe

Capture strobe
