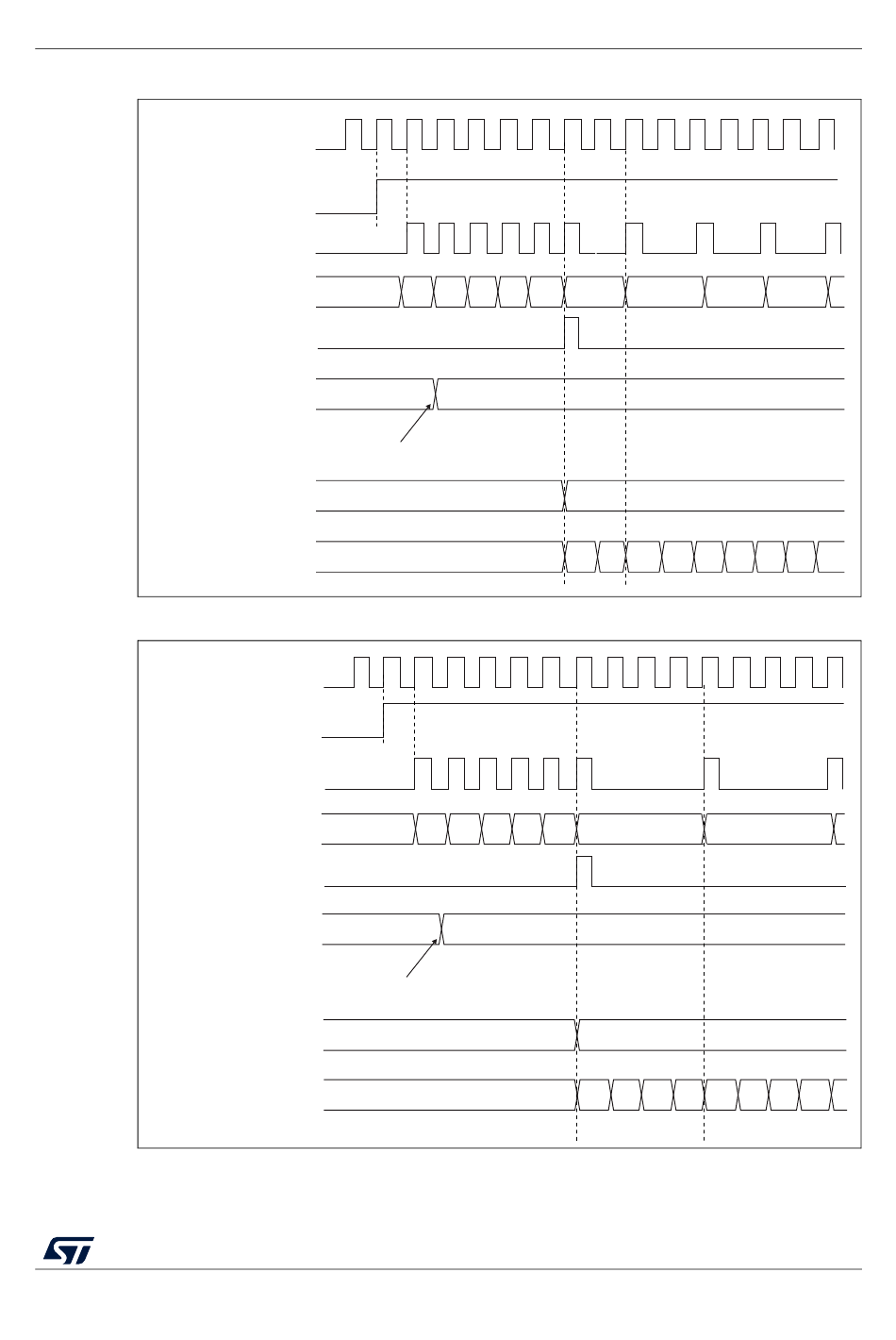

Figure 161. Counter timing diagram with prescaler division change from 1 to 2

Timerclock = CK_CNT

Counter register

Update event (UEV)

Prescaler control register

Prescaler counter

Timerclock = CK_CNT

Update event (UEV)

Prescaler control register

Prescaler counter

Write a new value in TIMx_PSC

Prescaler buffer

Counter register

Write a new value in TIMx_PSC

Prescaler buffer

General-purpose timers (TIM9 to TIM14)
