Figure 81. Counter Timing Diagram, Internal Clock Divided By 4, Timx_Arr=0X36; Figure 82. Counter Timing Diagram, Internal Clock Divided By N - ST STM32F207 Series Reference Manual

Advanced-control timers (TIM1 and TIM8)

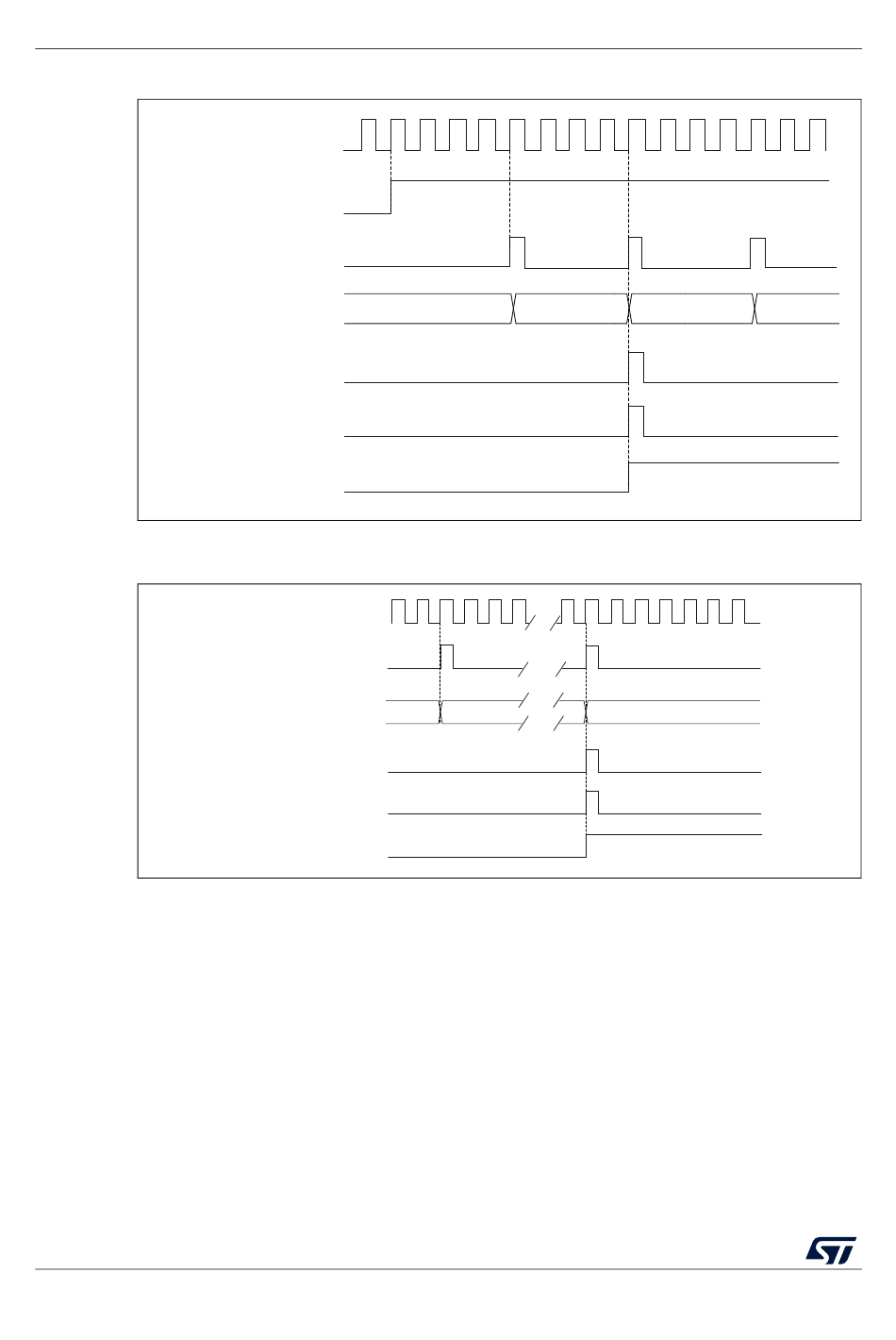

Figure 81. Counter timing diagram, internal clock divided by 4, TIMx_ARR=0x36

Timerclock = CK_CNT
Update event (UEV)
Update interrupt flag (UIF)
1. Center-aligned mode 2 or 3 is used with an UIF on overflow.
316/1381
CK_PSC
CNT_EN
Counter register
Counter overflow

Figure 82. Counter timing diagram, internal clock divided by N

CK_PSC
Timerclock = CK_CNT
Counter register
Counter underflow
Update event (UEV)
Update interrupt flag (UIF)
0034 0035
20 1F
