Random number generator (RNG)

20 Random number generator (RNG)
This section applies to the whole STM32F20x and STM32F21x family, unless otherwise
specified.
20.1

RNG introduction

The RNG processor is a random number generator, based on a continuous analog noise,
that provides a random 32-bit value to the host when read.
The RNG passed the FIPS PUB 140-2 (2001 October 10) tests with a success ratio of 99%.
20.2

RNG main features

•
It delivers 32-bit random numbers, produced by an analog generator
• 40 periods of the RNG_CLK clock signal between two consecutive random numbers
•
Monitoring of the RNG entropy to flag abnormal behavior (generation of stable values,
or of a stable sequence of values)
•
It can be disabled to reduce power consumption
20.3

RNG functional description

Figure 210
1. For more details about RNG Clock (RNG_CLK) source, please refer to
(RCC).
The random number generator implements an analog circuit. This circuit generates seeds
that feed a linear feedback shift register (RNG_LFSR) in order to produce 32-bit random
numbers.
544/1381
shows the RNG block diagram.
Control register
RNG _CR
RNG_CLK
Status register
RNG _SR

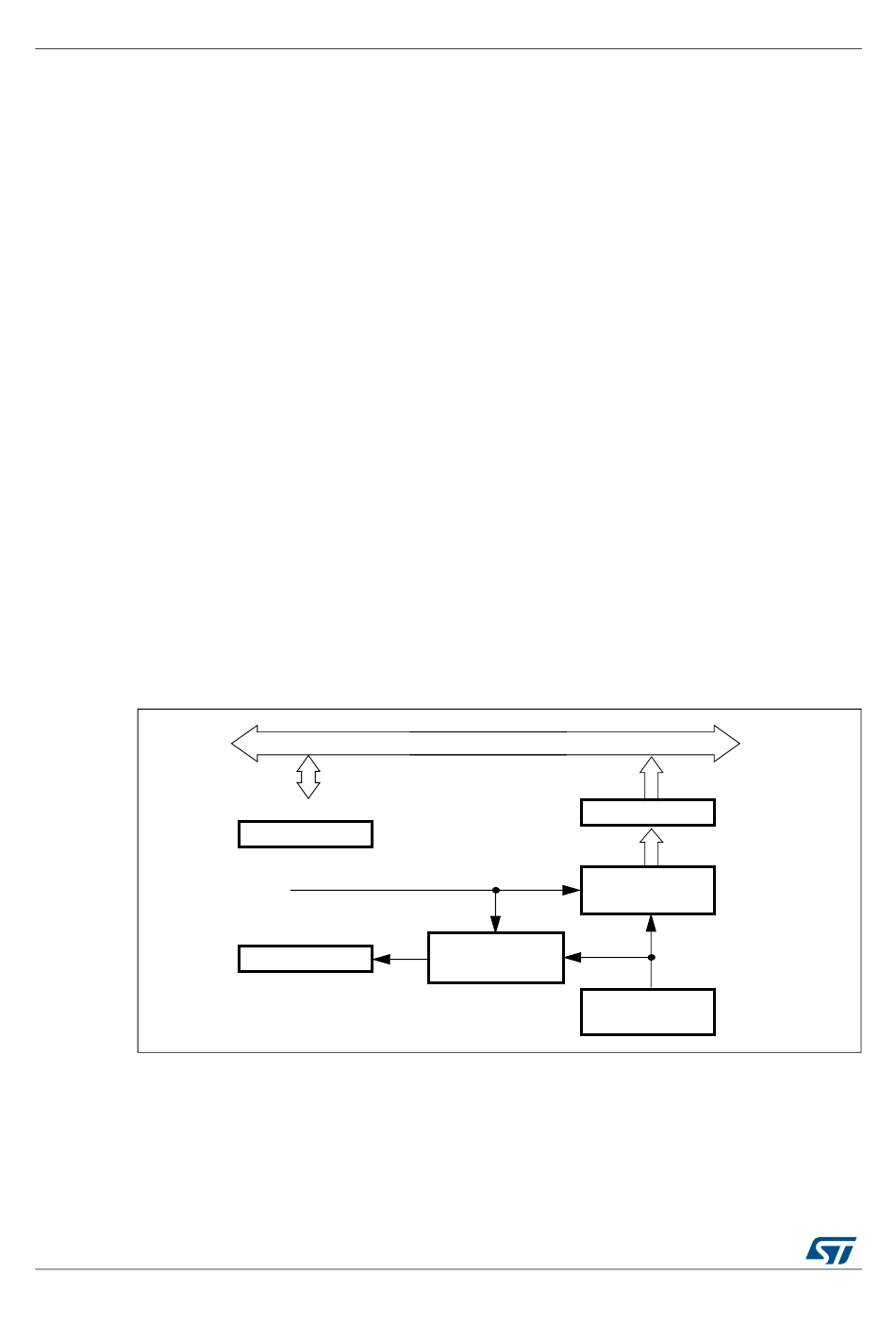

Figure 210. Block diagram

32-bit AHB bus
Clock checker &
fault detector
RM0033 Rev 9
data register
RNG_DR
LFSR
feed a Linear Feedback
Shift Register
Analog seed
Section 5: Reset and clock control
RM0033
ai16080
