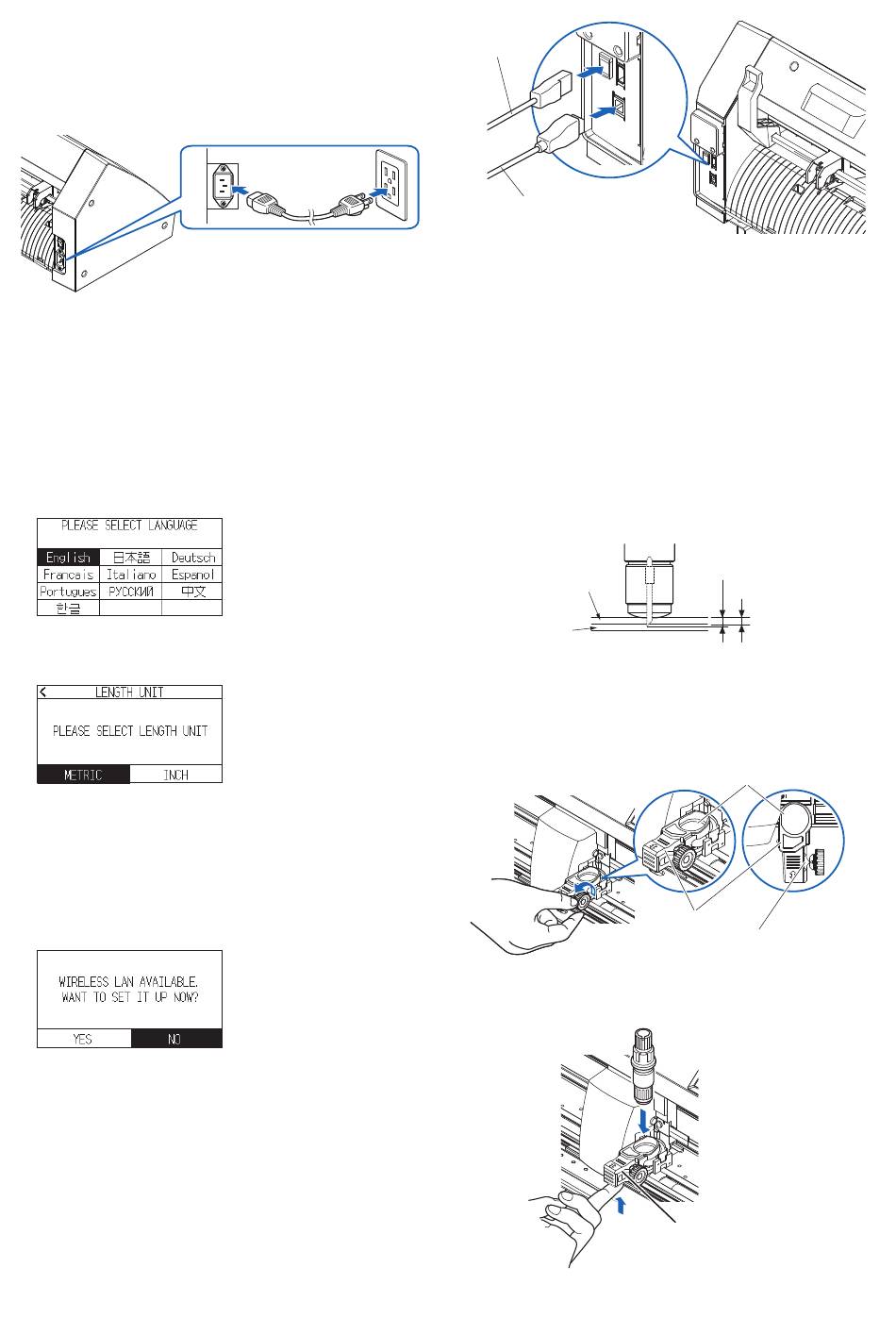

Connecting to the Power
Make sure that the power switch is off (○side), and make a
connection between the power connector of the cutting
plotter and the AC outlet of specified voltage using the
supplied power cable.

Initial setup screen

The initial setup screen is displayed only when the power is
first turned on.
Then select "DISPLAY LANGUAGE" , "LENGTH UNIT" and
"WIRELESS LAN".
When the power switch is turned on (I side), a message is
displayed after displaying the firmware version.
1. Press the language you want to use.
2. Press the unit you want to use.
3. Select whether to make the wireless LAN settings.
Press "YES" to proceed to the access point setting.
For wireless LAN settings, refer to "Instruction manual".
Press "NO" to go to the HOME screen.
This screen will not be displayed if wireless LAN module is
not installed.
4. Once the settings are confirmed, the HOME screen will be
displayed.

Connection to computer

This section describes how to connect the plotter and the
computer.
Use either a USB port, wireless LAN or wired LAN
plotter to a computer.
* Please install driver software before connecting.
* If you are using a wireless LAN module, please refer to "Mounting
the wireless LAN module" on the previous page.
* Wired LAN unit is factory-installed option.
1
Network (LAN)
cable

Preparation of cutter plunger

Set the cutter blade in the cutter plunger and then use it with
the cutter plotter.
Set the cutter blade in the cutter plunger according to the
instruction manual supplied with the cutter plunger.

Adjusting the blade length

Refer to the instruction manual supplied with the cutter
plunger and adjust the blade length according to the media.
When a general cutting sheet is used, the blade length that is
shorter than the combined thickness of film and backing sheet
and longer than the thickness of film is optimal.
Attaching a Tool
1. Loosen the tool holder screw.
2. While pushing up the tool clamper, set the tool in the tool
to connect the
*1
USB cable
Film
Backing Sheet
Move the tool clamper so that the hole in the tool clamper
is aligned with the hole in the tool holder.
holder.
Optimal blade length
Film thickness
Tool holder
Tool clamper
Loosen the screw until
this protrusion can be gotten over.
Tool clamper
