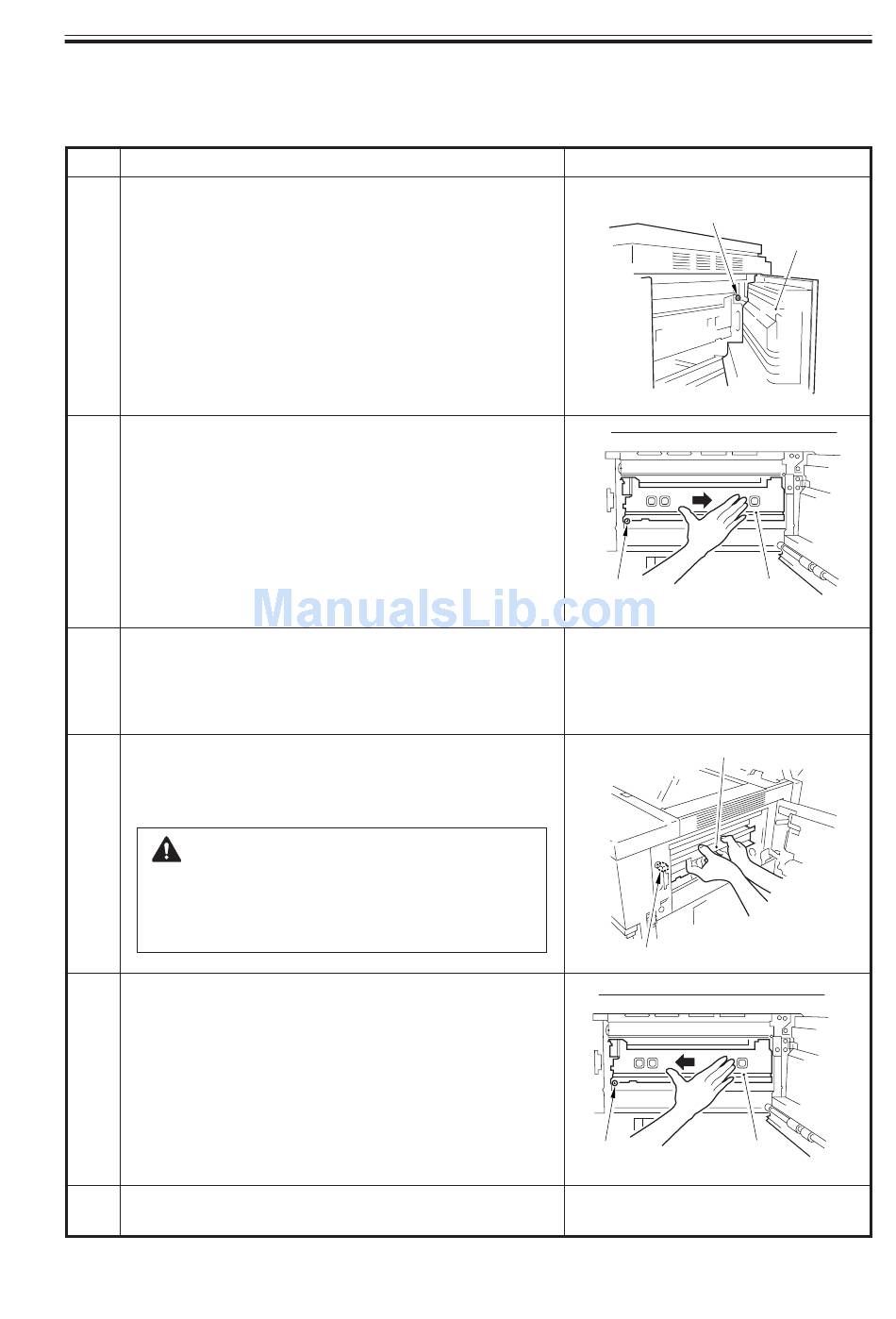

2.7 Mounting the Developing Assembly

Step
1 Open the manual feed tray cover[1] and remove
the screw[2] from the door tape.
2 Remove the screw[3] and slide the developing
assembly locking unit[4] in the direction of the
arrow (rear) to detach.
3 Take out the developing assembly from the card-
board box.
4 Hold the developing assembly[5] in the middle
(pocket of the grip) and mount it to the machine.
Connect the connector[6].
When mounting the developing assem-
bly, take care not to bring the developing
cylinder into contact with the metal plate of
the developing assembly base.
5 Insert the developing assembly locking unit[4]
from the right side (rear) while making sure to
hold it horizontally.
Secure the developing assembly locking unit in
place with a screw[3].
6 Mount the door tape of the manual feed tray
cover with a screw.
COPYRIGHT © 2001 CANON INC.
Work
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 3 INSTALLATION
Checks/remarks
[2]
[3]
Turn the developing cylinder
gear by hand and check to make
sure that the cylinder is free of
scratches.
[5]
[6]
[3]
[1]
[4]
[4]
3-17 S
