CHAPTER 8 PAPER DECK
Deck OPEN
detecting switch
(SW101)
Deck main
M101
motor
Deck paper
level sensor
(PS108)
M102
Deck lifter
motor
Deck lifter lower
limit detecting switch
(SW102)
8-10 P
Deck paper supply
position sensor (PS107)
Deck pickup roller
Lifter

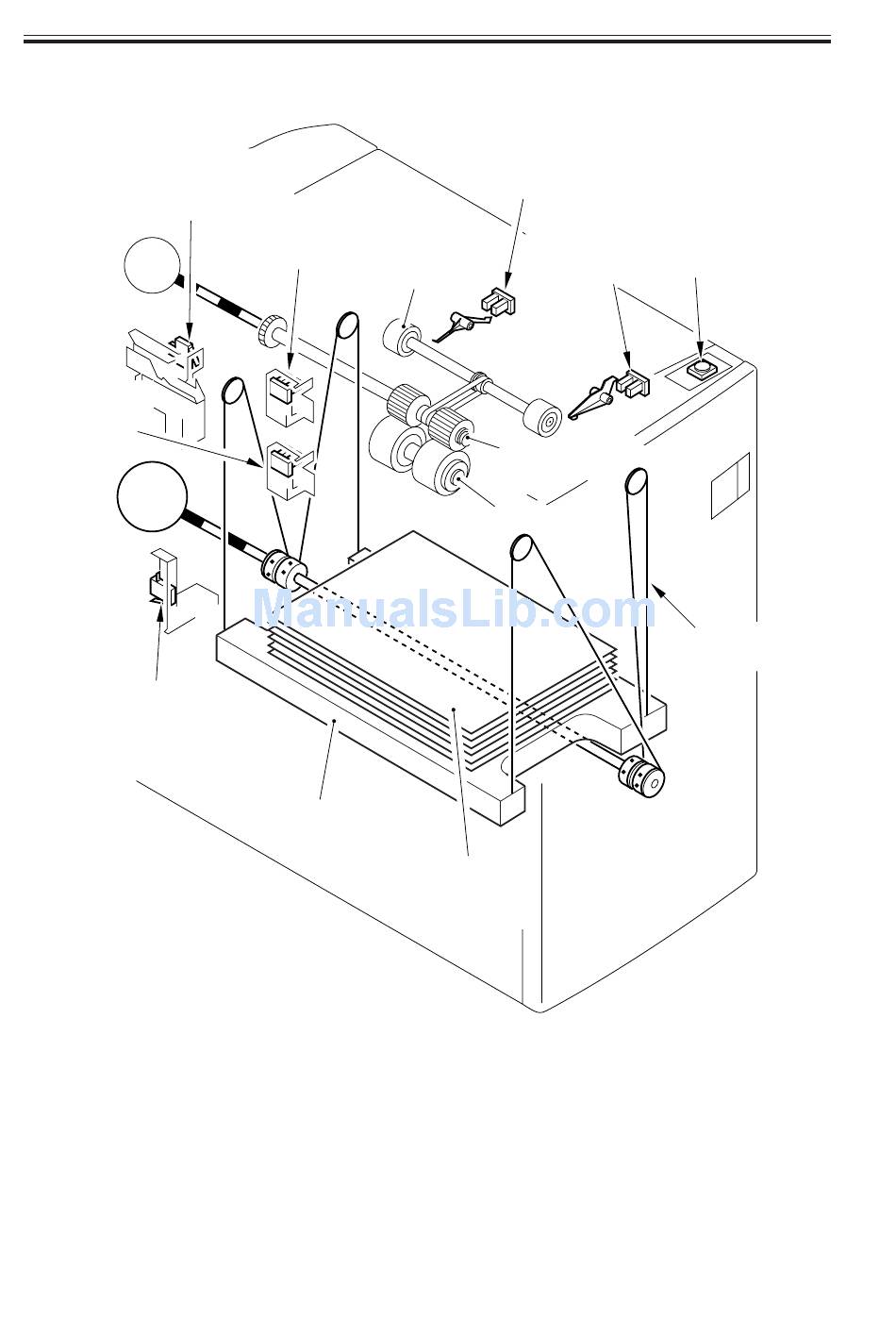

F08-104-01
COPYRIGHT © 2001 CANON INC.
Deck lifter position
sensor (PS104)
Deck liter upper
limit sensor
(PS103)
Deck pickup
/feed roller
Deck separation roller
Paper
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
Deck open switch
(SW100)
Deck lifter cable
