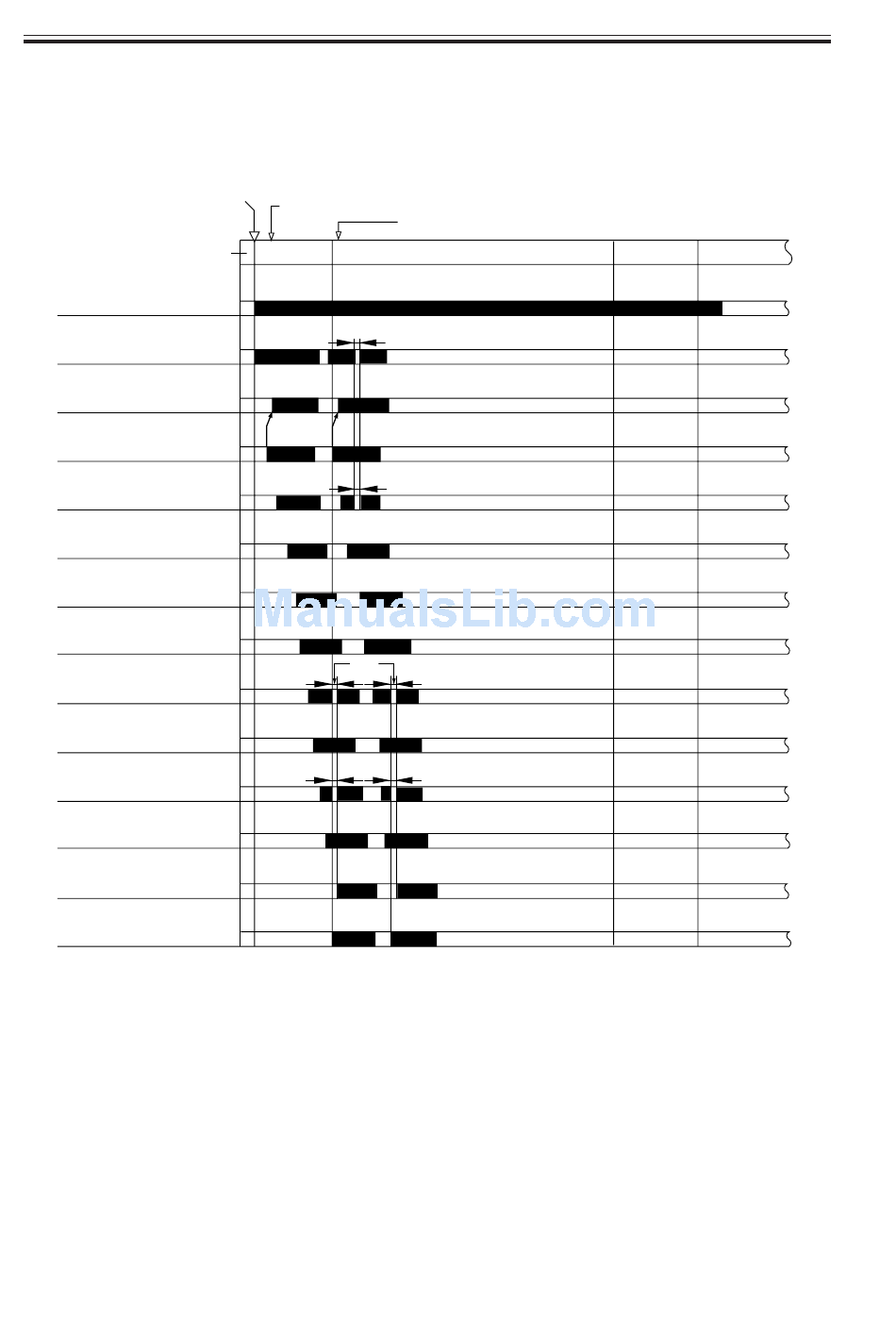

CHAPTER 5 PICK-UP/FEEDING SYSTEM
b. Cassette 3
• A4, 2 Sheets, Continuous
Start key ON or
PRINT command received
STBY
Main motor (M2)
Cassette 3/4 pickup
motor (M12)
Cassette 4 pickup
solenoid (SL3)
Cassette 3 retry sensor
(PS21)
Vertical path lower
motor (M27)
Vertical path 3 paper
sensor (PS6)
Vertical path upper
motor (M26)
Vertical path 2 paper
sensor (PS25)
Vertical path duplexing
feeding motor (M25)
Vertical path 1 paper
sensor (PS24)
Pre-registration motor
(M17)
Laser write start sensor
(PS28)
Registration roller
clutch (CL2)
Registration paper
sensor (PS29)
5-8 P
1st sheet pickup
INTR
[2]
[1]
[1] : Rests to arch against the registration roller.
[2] : Rests to adjust the sheet-to-sheet interval 20 mm from the vertical path 3 roller.
F05-201-04
