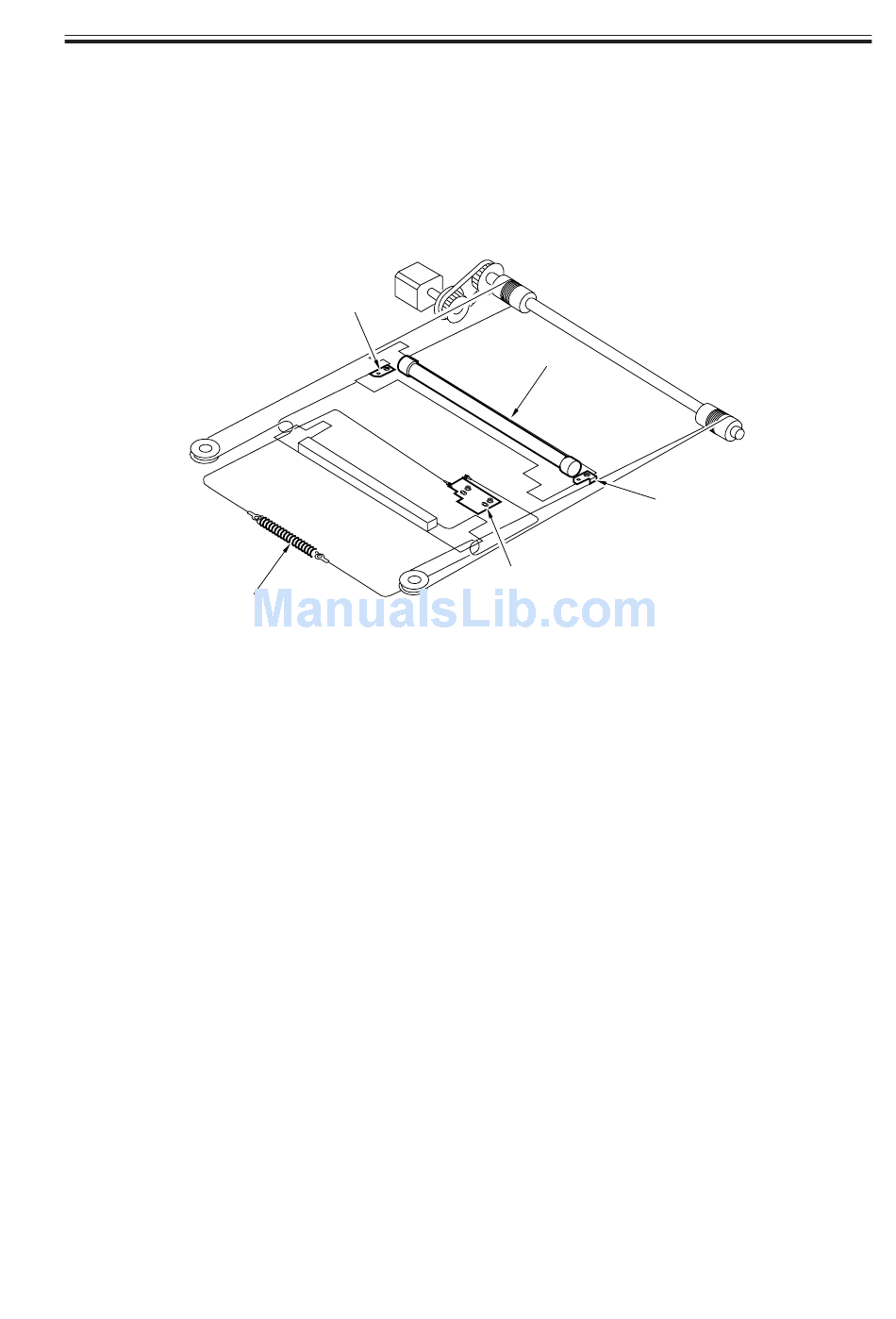

8) Remove the two cable fixing screws
[11] of the No. 1 mirror base [10].
9) Remove the two springs [12] used to
secure the cable in place.
10) Remove the cable fixing plate [13] and
each pulley cable.
