CHAPTER 5 PICK UP/FEEDING SYSTEM
4) Disconnect the connector [5], and re-
move the sensor [6].

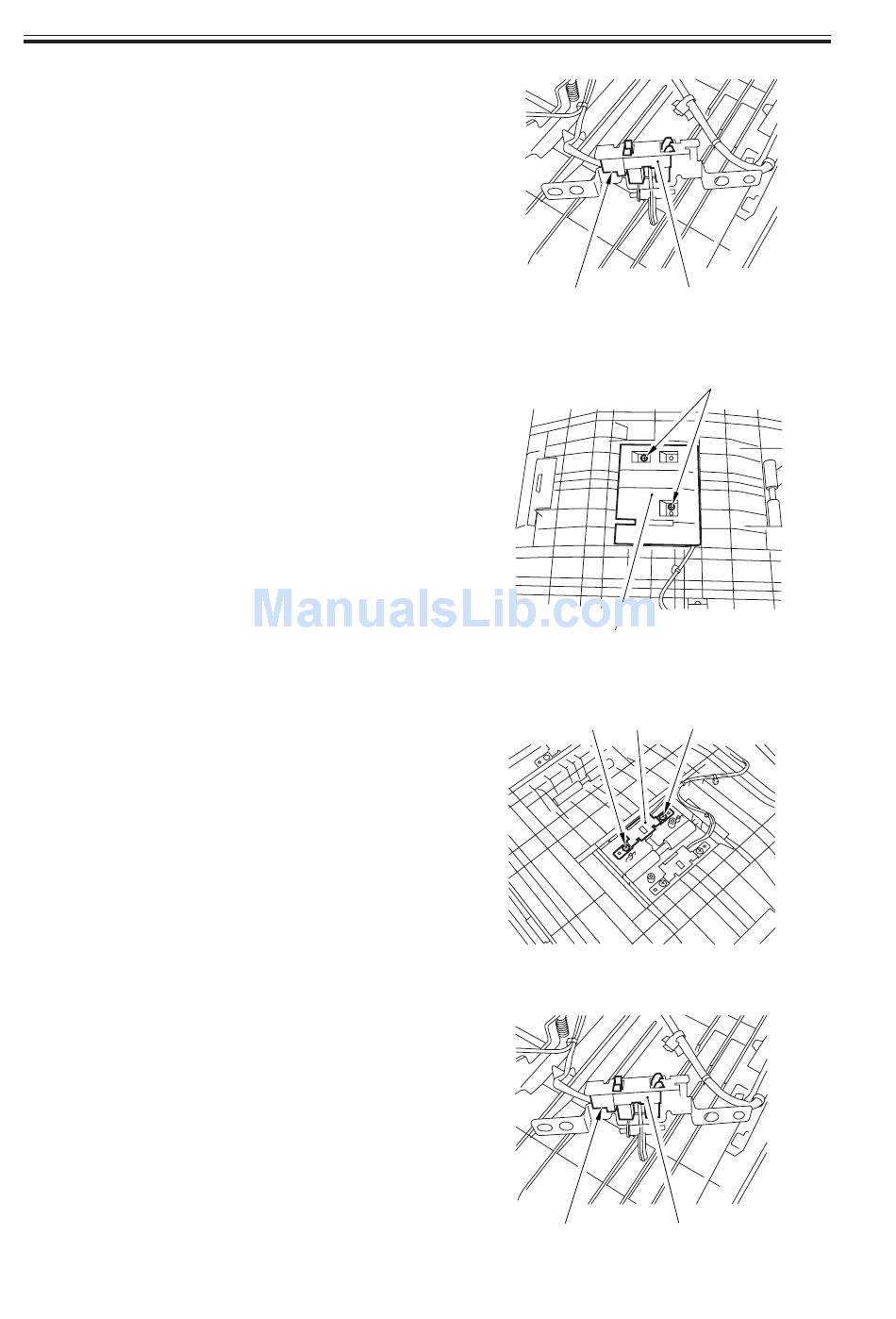

9.6.9 Removing the Duplex Paper Sensor

1) Slide the duplex unit out of the duplex
unit.
2) Remove the two mounting screws [1],
and detach the cover [2].
3) Remove the two mounting screws [3],
and detach the sensor together with its
base [4].
4) Disconnect the connector [5], and re-
move the sensor [6].
5-74 P
COPYRIGHT © 2001 CANON INC.
[5]
F05-906-13
F05-906-14
[3]
F05-906-15
[5]
F05-906-16
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[6]
[1]
[2]
[4] [3]
[6]
