4.6 Adjusting the Pressure of the Separation Roller of the
Deck/Cassette

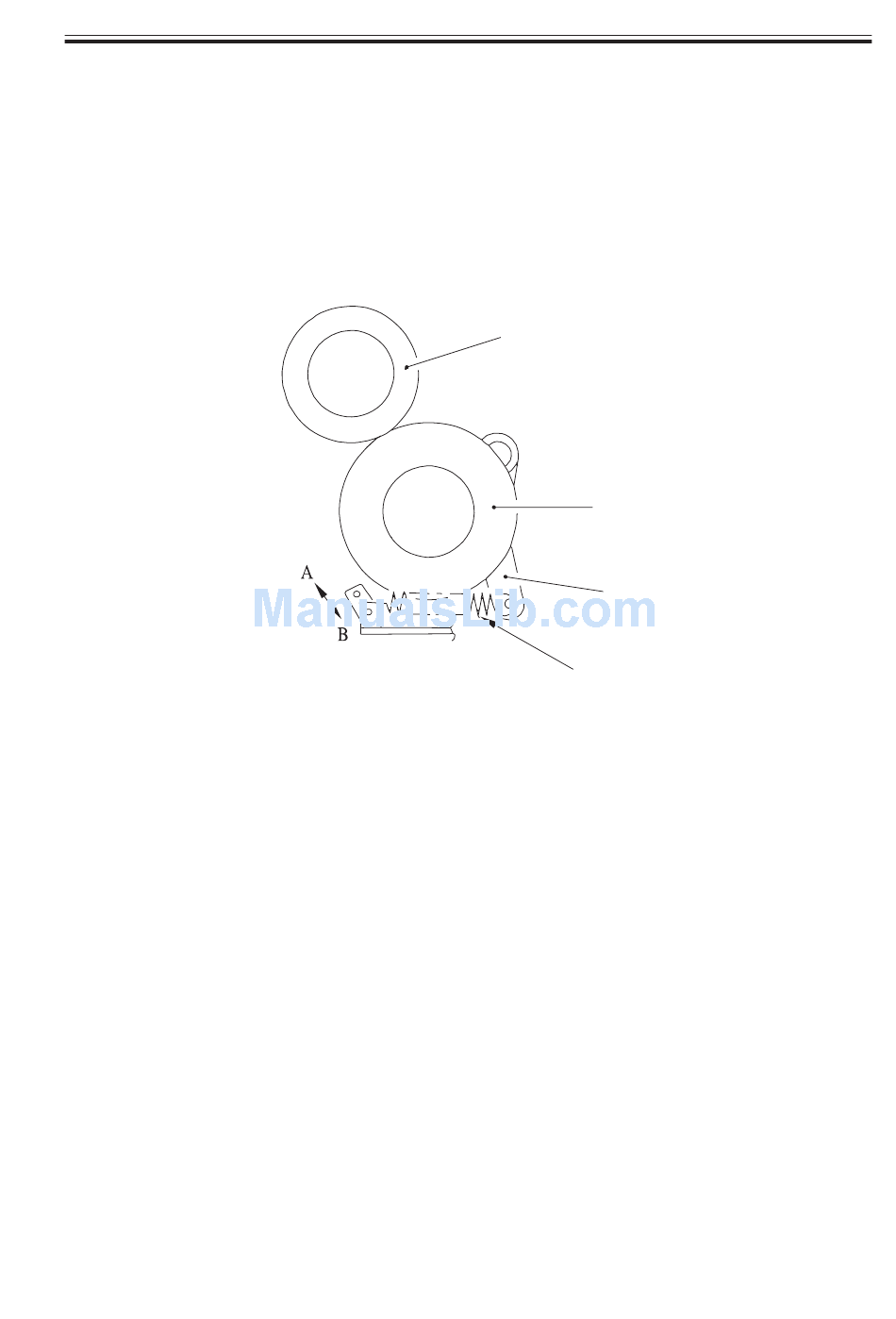

If double feeding or pickup failure occurs during pickup, change the position of the pres-
sure spring of the separation roller:
• If double feeding occurs, move the hook of the spring in the direction of B.
• If pickup failure occurs, move the hook of the spring in the direction of A.
COPYRIGHT © 2001 CANON INC.
[1] Feeding roller
[3] Pressure lever
2000 2000 2000 2000
CHAPTER 3 STANDARDS AND ADJUSTMENTS
[1]
[4]
[2] Separation roller
[4] Pressure spring
F03-406-01
CANON iR5000i/iR6000i REV.0 JUNE 2001
[2]
[3]
3-13 T
